5-26
9. V-COM Adjustment (PD-98 board)
Set the DC bias of the common electrode drive signal of LCD to the
specified value.
If deviated, the LCD display will move, producing flicker and
conspicuous vertical lines.
Mode VTR stop
Signal No signal
Measurement Point
Check on LCD display
Measuring Instrument
Adjustment Page D
Adjustment Address 66
Specified Value The brightness difference between the
section A and section B is minimum.
Note: Perform "Bright Adjustment" and “Contrast Adjustment” before this
adjustment.
Adjusting method:
1) Select page: 0, address: 01, and set data: 01.
2) Select page: 2, address: 10, set data: 01, and press the PAUSE
button of the adjusting remote commander.
3) Select page: 2, address: 1F, and set data: 01.
4) Select page: D, address: 66, change the data so that the
brightness of the section A and that of the section B is equal.
5) Press the PAUSE button of the adjusting remote commander.
6) Select page: 2, address: 10, set data: 00, and press the PAUSE
button of the adjusting remote commander.
7) Select page: 2, address: 1F, and set data: 00.
8) Select page: 0, address: 01, and set data: 00.

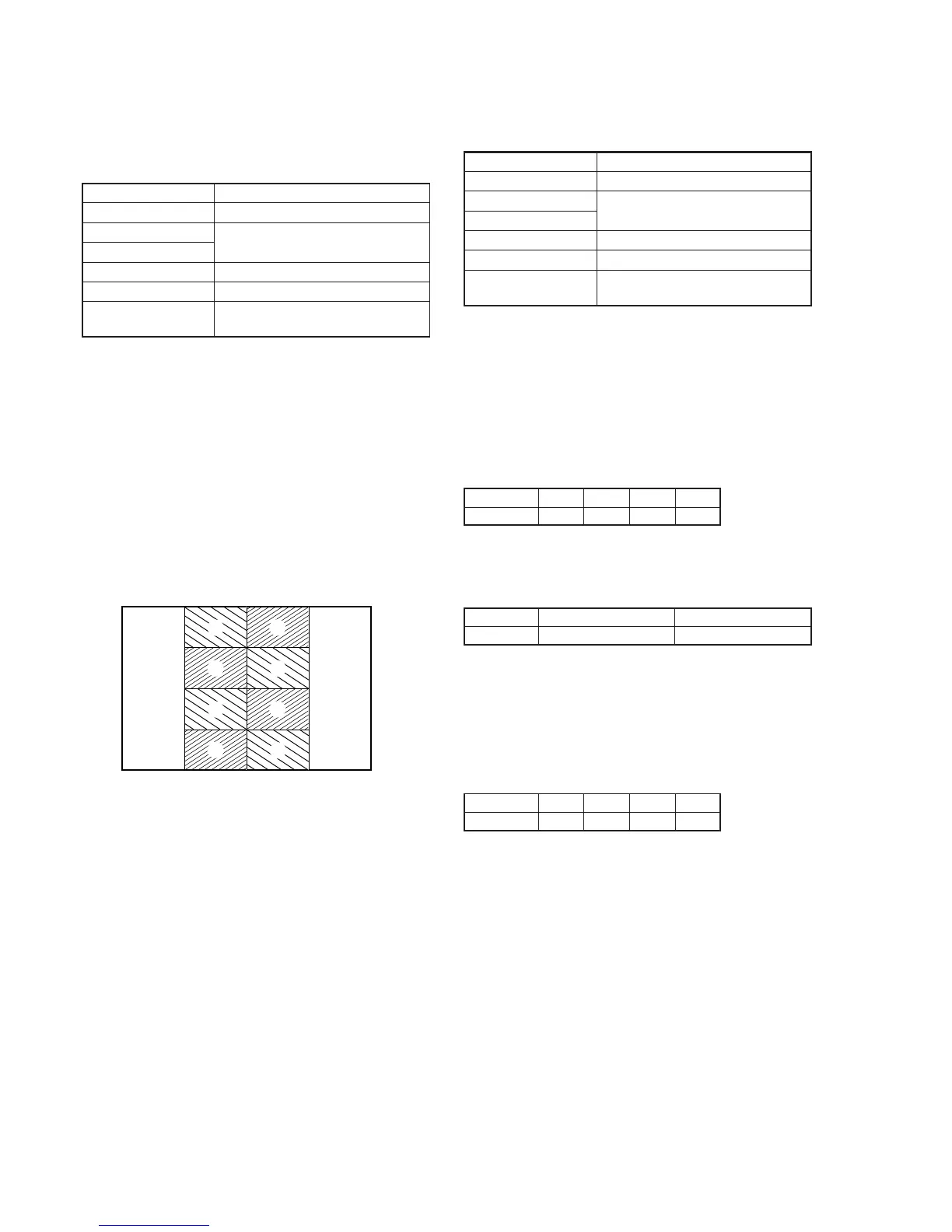

Fig. 5-1-22
A
A
A
A
B
B
B
B
10. White Balance Adjustment (PD-98 board)
Correct the white balance.
If deviated, the LCD screen color cannot be reproduced.
Mode Camera E-E
Subject Arbitrary
Measurement Point
Check on LCD display
Measuring Instrument
Adjustment Page D
Adjustment Address 60, 61
Specified Value The LCD screen should not be
colored.
Note: Check the white balance only when replacing the following parts. If
necessary, adjust them.
1. LCD panel
2. Light induction plate
3. IC5502
Adjusting method:
1) Select page: 0, address: 01, and set data: 01.
2) Input the following data to page: D, address: 80 to 83.
Note: Press the PAUSE button of the adjustment remote commander
each time to set the data.
3) Select page: D, address: 60 and 61, and set the data to the initial
value.
Note: To write in the non-volatile memory (EEPROM), press the
PAUSE button of the adjustment remote commander each time
to set the data.
4) Check that the LCD screen is not colored. If colored, change
the data of page: D, address: 60 and 61 so that the LCD screen
is not colored.
Note: To write in the non-volatile memory (EEPROM), press the
PAUSE button of the adjustment remote commander each time
to set the data.
5) Input the following data to page: D, address: 82 and 83. Note:
Press the PAUSE button of the adjusting remote commander
each time to set the data.
6) Select page: 0, address: 01, and set data: 00.
Address
Data
80
00
81
27
82
00
83
00
Address
Data
60
A0 (NTSC), A0 (PAL)
61
73 (NTSC), 73 (PAL)
Address
Data
80
38
81
00
82
20
83
20
To Next Page
