5-58
3. IR Audio Deviation Adjustment (MA-322 board)
Mode Camera standby
Signal 400Hz, –66dBs : L and R of MIC jack
Measurement Point AUDIO L terminal and AUDIO R
terminal of IR receiver jig
(Terminated at 47kΩ)
Measuring Instrument Audio level meter
Adjustment Page D
Adjustment Address 92
Specified Value Signal level: –7.5 ± 1.0 dBs
Level difference of L and R: Below 2dB

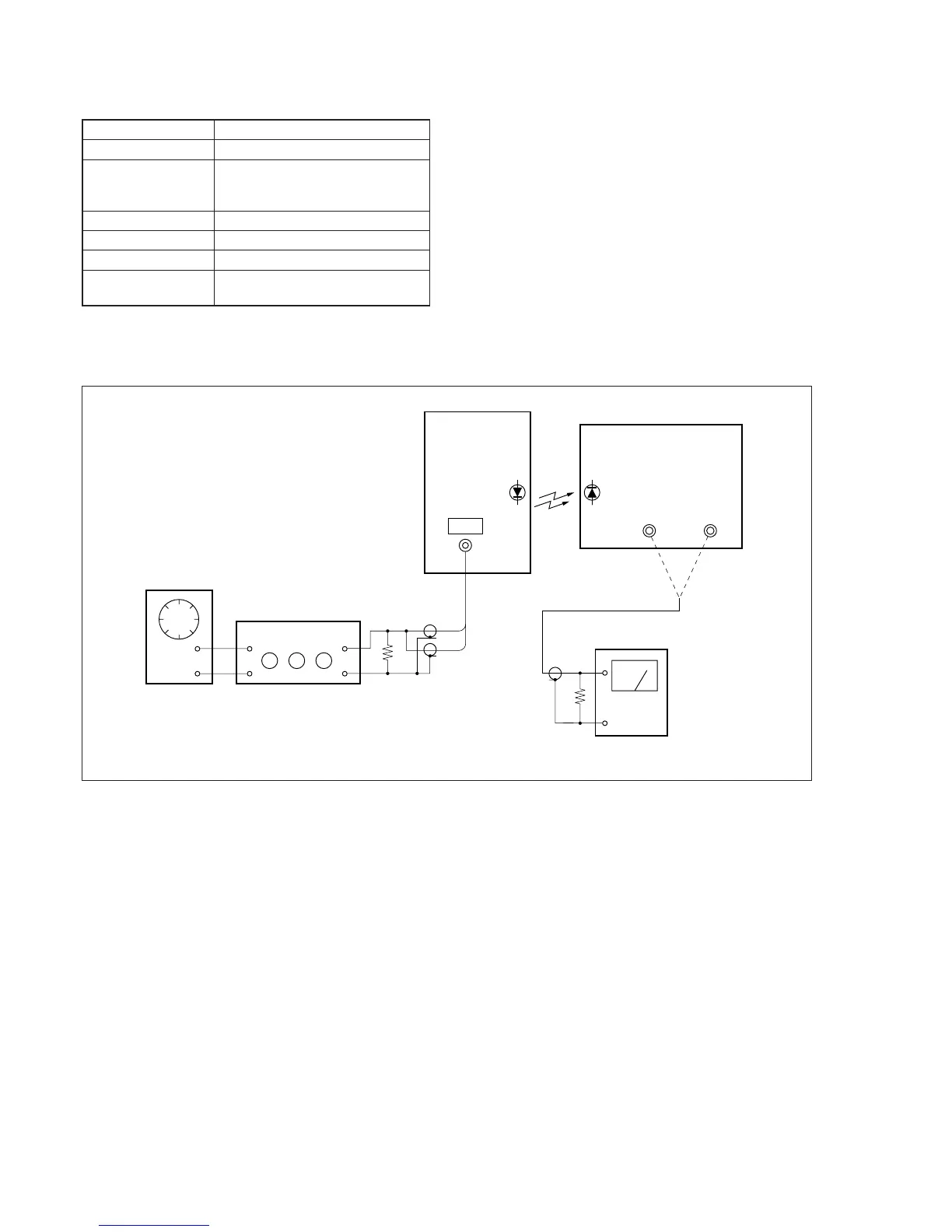

Connection of Equipment:
Connect the measuring device as shown in the following figure,
and adjust.
Adjusting method:
1) Select page: 0, address: 01, and set data: 01.
2) Connect the audio level meter to the AUDIO L terminal of the
IR receiver jig.
3) Select page: D, address: 92, change the data and set the 400Hz
audio signal level to the specified value.
4) Press the PAUSE button of the adjusting remote commander.
5) Connect the audio level meter to the AUDIO R terminal of the
IR receiver jig.
6) Check that the 400Hz audio signal level is within the specified
value. If outside, repeat from step 2).
7) Select page: 0, address: 01, and set data: 00.
Main unit
Audio oscillator
Left
Right
Attenuator
MIC
IR receiver jig
AUDIO OUT
LR
Audio level meter
47k
Ω
600 Ω
600 Ω : 270 Ω (1-249-410-11) + 330 Ω (1-249-411-11)
47k Ω (1-249-437-11)
Fig. 5-3-21
