DCR-TRV9/TRV9E

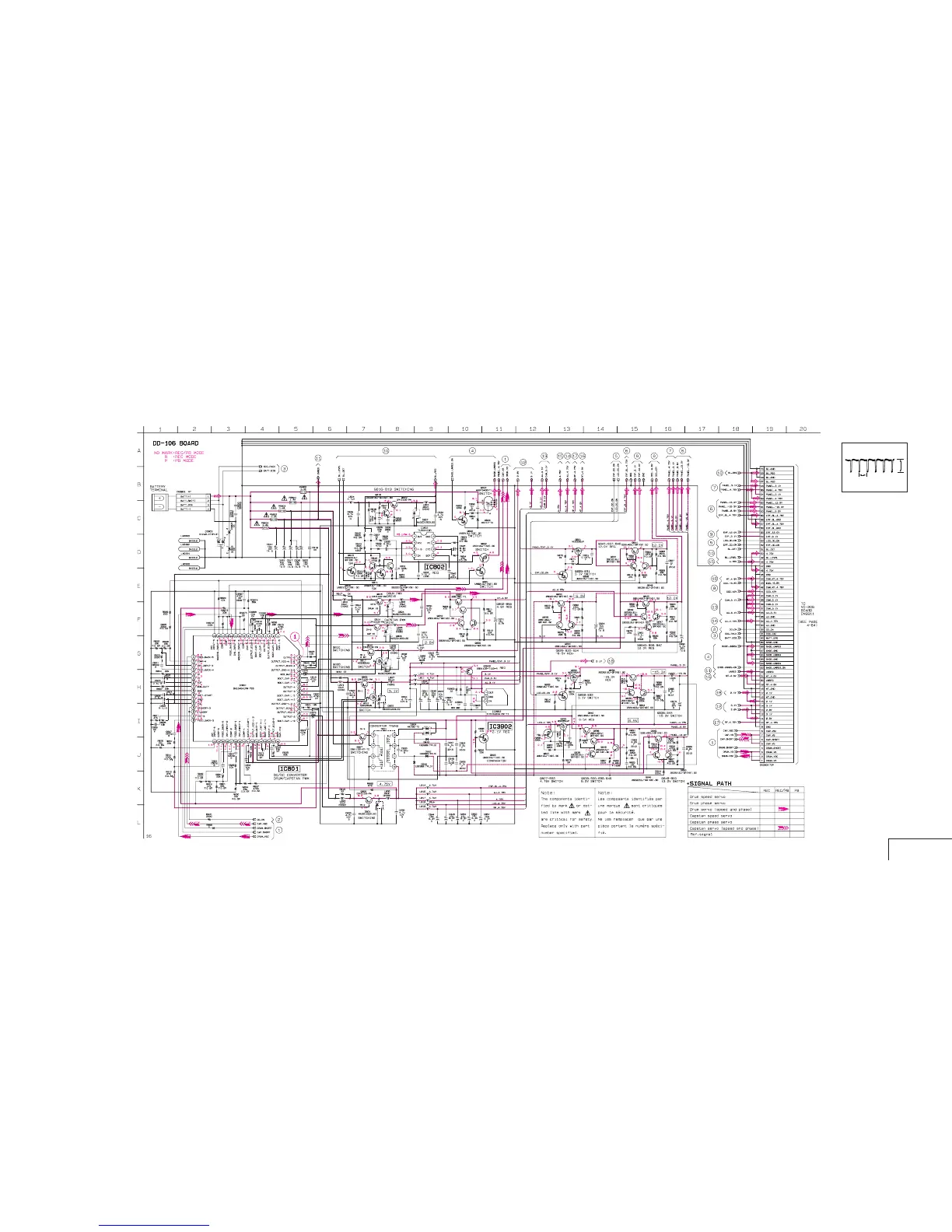

DD-106 (POWER SUPPLY) SCHEMATIC DIAGRAM
— Ref. No.: DD-166 Board; 30,000 Series —
4-129 4-130 4-131E
POWER SUPPLY
DD-106
DD-106
BOARD
CAMERA REC/PB
1
IC801 ^¢
1.0Vp-p
NTSC : 2.2µsec
PAL : 2.0µsec
