Sony Handycam DCR-PC2E User Manual
4
of 1
of 1 rating
176 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
DCR-TR
V9/TR
V9E

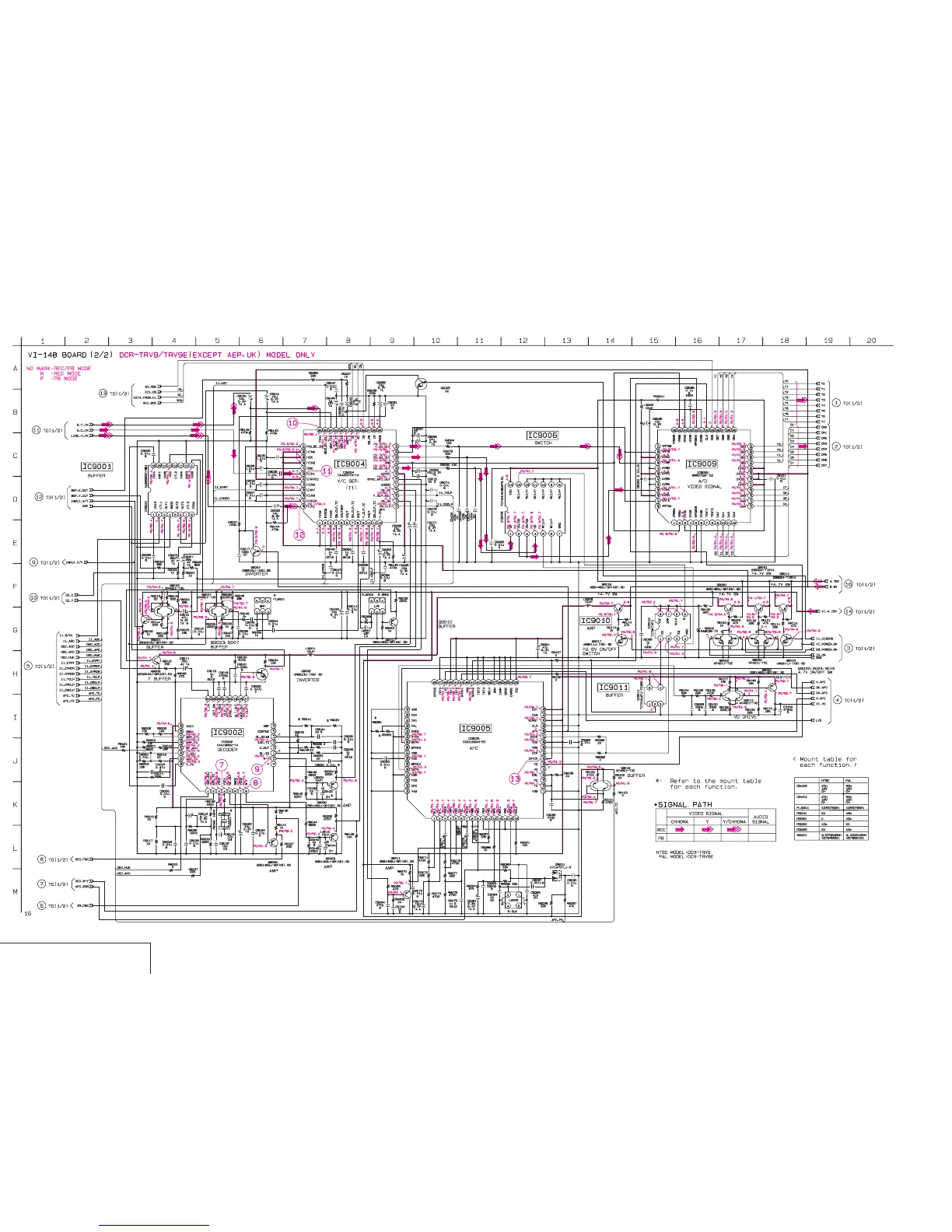

VI-148 (Y/C SEP
., A/D
, DECODER,
AFC) SCHEMA
TIC DIAGRAM
— Ref. No.: VI-148 Board; 10,000 Series —
4-87
4-88
Y/C SEP
., A/D,
DECODER, AFC
VI-148 (2/2)
• See page 4-89 for
VI-148 BOARD printed wiring board.
• See page 4-89 for
VI-148 BOARD wa
veforms.
64
66
Table of Contents
Default Chapter
3
Table of Contents
3
Service Note
6
How to Take a Cassette out When the Main Power Cannot be Turned on
6
Power Supply During Repairs
6
Self-Diagnosis Function
7
Self-Diagnosis Display
7
Service Mode Display
7
Display Method
7
Switching of Backup no
7
End of Display
7
Self-Diagnosis Code Table
8
General
9
Disassembly
32
F Panel Assembly
32
Cabinet (L), Cabinet (R) Assemblies
32
Cabinet (R) Assembly
33
Evf Assembly
33
Evf Cabinet (Upper) Assembly, Evf Cabinet (Lower) Assemblies
34
Lcd Assembly
34
Board, DD-106 Board, Battery Holder Assembly
35
Zoom Lens
35
Board
35
Mechanism Deck
36
Cabinet (L) Assembly
36
Flexible Board
36
Board
37
Fp-647, Fp-648 Flexible Board VI-148 Board
37
Service Position
37
Circuit Board Location
38
Block Diagrams
39
Overall Block Diagram (1)
39
Overall Block Diagram (2)
40
Power Block Diagram
41
4 Printed Wiring Boards
42
Frame Schematic Diagram
42
Printed Wiring Boards and Schematic Diagrams
42
Camera) Schematic Diagram
46
Ecc, Tbc, Chco
50
Audio Process
51
Lanc, Phones Jacks
52
Schematic Diagram
54
Schematic Diagram
55
Schematic Diagram
56
Loading Motor, Sensors, Switches) Schematic Diagrams
57
Schematic Diagram and Printed Wiring Board
58
MIC Amp, A/V Rf Converter, Ir Receiver, Sircs Det)
59
Sircs Det) Schematic Diagram
59
Sp/Hp Amp) Schematic Diagram
62
Audio Dsp, MIC Amp
63
Video Interface
64
Y/C Sep., A/D, Decoder, Afc
65
Video Interface, Y/C Sep., A/D, Decoder, Afc
66
Panel Condition Det.), Fp-657 (Control Switches) Schematic Diagram
67
Printed Wiring Board and Schematic Diagrams
72
Power Supply
76
Adjustments
77
Camera Section Adjustment
77
Preparations before Adjustment (Camera Section)
77
List of Service Tools
77
Preparations
78
Precaution
80
Setting the Switch
80
Order of Adjustments
80
Subjects
80
Initialization of F, E
81
Initializing the F, E
81
Modification of F, E PAGE Data
81
F Page Table
81
E Page Table
84
Camera System Adjustments
85
Mhz Origin Oscillation Adjustment (VC-206 Board)
85
Zoom Key Center Adjustment (VC-206 Board)
85
HALL Adjustment
86
Flange Back Adjustment
87
Flange Back Adjustment (1)
87
Flange Back Adjustment (2)
87
Flange Back Check
88
Picture Frame Setting
88
G-CAM Flip Adjustment
89
Color Reproduction Adjustment
90
MAX GAIN Adjustment
91
Auto White Balance Standard Data Input
91
Auto White Balance Adjustment
92
White Balance Check
92
Angular Velocity Sensor Sensitivity Adjustment
93
Color Electronic Viewfinder System Adjustment
94
EVF Initial Data Input
94
VCO Adjustment (VF-121 Board)
95
Bright Adjustment (VF-121 Board)
95
Contrast Adjustment (VF-121 Board)
96
Backlight Consumption Current Adjustment (VF-121 Board)
96
White Balance Adjustment (VF-121 Board)
97
Lcd System Adjustment
98
LCD Initial Data Input
98
VCO Adjustment (PD-98 Board)
99
Horizontal Position Check (PD-98 Board)
99
D Range Adjustment (PD-98 Board)
99
Bright Adjustment (PD-98 Board)
100
Contrast Adjustment (PD-98 Board)
100
V-COM Level Adjustment (PD-98 Board)
101
Color Adjustment (PD-98 Board)
101
V-COM Adjustment (PD-98 Board)
102
White Balance Adjustment (PD-98 Board)
102
Mechanism Section Adjustment
104
Operating Without Cassette
104
Tape Path Adjustment
104
Preparations for Adjustment
104
Video Section Adjustments
105
Preparations before Adjustments
105
Equipment Required
105
Precautions on Adjusting
106
Adjusting Connectors
106
Connecting the Equipment
107
Checking the Input Signals (Except AEP/UK Model)
107
Alignment Tapes
108
Input/Output Level and Impedance
108
Initialization of D, C
109
Initializing the D
109
Modification of D
109
D Page Table
109
Initializing the C
111
Modification of C
111
C Page Table
111
System Control System Adjustment
113
Battery End Adjustment (VC-206 Board)
113
Servo System Adjustments
113
T Reel FG Duty Adjustment (VC-206 Board)
113
Switching Position Adjustment (VC-206 Board)
113
Video System Adjustments
114
RF Block Adjustments
114
Recording Current Adjustment (VC-206 Board)
114
PLL F Adjustment (VC-206 Board)
114
CLK DELAY Adjustment (VC-206 Board)
115
AGC Center Level Adjustment (VC-206 Board)
115
AEQ Adjustment (VC-206 Board)
116
PLL Capture Range Adjustment (VC-206 Board)
116
Clock Adjustments
117
IC1900 27Mhz XTAL F Adjustment (VC-206 Board)
117
IC1900 VCO Operation Check (VC-206 Board)
117
IC6101 41.85Mhz VCO Operation Check (VC-206 Board)
117
Base Band Block Adjustments
118
Composite Output y Level Adjustment (VC-206 Board)
118
Composite Output Chroma Level Adjustment (VC-206 Board)
118
S-C Output Level Adjustment (VC-206 Board)
119
S-Y Output Level Adjustment (VC-206 Board)
119
IC9004 AGC Adjustment (VI-148 Board) (Except AEP/UK Model)
120
AFC TC Adjustment (VI-148 Board) (Except AEP/UK Model)
120
AFC F Adjustment (VI-148 Board) (Except AEP/UK Model)
121
Decoder APC Adjustment (VI-148 Board) (Except AEP/UK Model)
121
Decoder ACC Adjustment (VI-148 Board) (Except AEP/UK Model)
121
Decoder HUE Adjustment (VI-148 Board) (Except AEP/UK Model)
122
IC9004 y Clamp Adjustment (VI-148 Board) (Except AEP/UK Model)
122
IC9004 CR Clamp Adjustment (VI-148 Board) (Except AEP/UK Model)
123
IC9004 CB Clamp Adjustment (VI-148 Board) (Except AEP/UK Model)
123
IC9004 EVR y Adjustment (VI-148 Board) (Except AEP/UK Model)
124
IC9004 EVR CR Adjustment (VI-148 Board) (Except AEP/UK Model)
124
IC9004 EVR CB Adjustment (VI-148 Board) (Except AEP/UK Model)
125
BIST Check
126
Playback System Check
126
Recording System Check
127
IR TRANSMITTER ADJUSTMENTS (Except DCR-TRV9E AEP/UK Model)
128
IR Video Carrier Frequency Adjustment (MA-322 Board)
128
IR Video Deviation Adjustment (MA-322 Board)
128
IR Audio Deviation Adjustment (MA-322 Board)
129
Audio System Adjustments
130
Playback Level Check
131
Overall Level Characteristics Check
131
Overall Distortion Check
131
Overall Noise Level Check
131
Overall Separation Check
131
Service Mode
133
Adjustment Remote Commander
133
Using the Adjustment Remote Commander
133
Precautions Upon Using the Adjustment Remote Commander
133
Data Process
134
Service Mode
135
Setting the Test Mode
135
Emergence Memory Address
135
EMG Code (Emergency Code)
135
MSW Code
136
Bit Value Discrimination
137
Switch Check (1)
137
Switch Check (2)
138
Record of Use Check
138
Repair Parts List
139
Exploded Views
139
Front Panel Section
139
Cabinet (R) Section
140
Evf Section
141
Lcd Section
142
Chassis Section
143
Cabinet (L) Section
144
Zoom Lens Section
145
Cassette Compartment, Drum and Reel Table Assembly
146
Tape Guide, Pinch Slider Assembly and Brake Slider Assembly
147
Each Gears and Loading / Capstan Motor Assembly
148
Electrical Parts List
149
4
