Sony Handycam DCR-PC2E User Manual

6-3

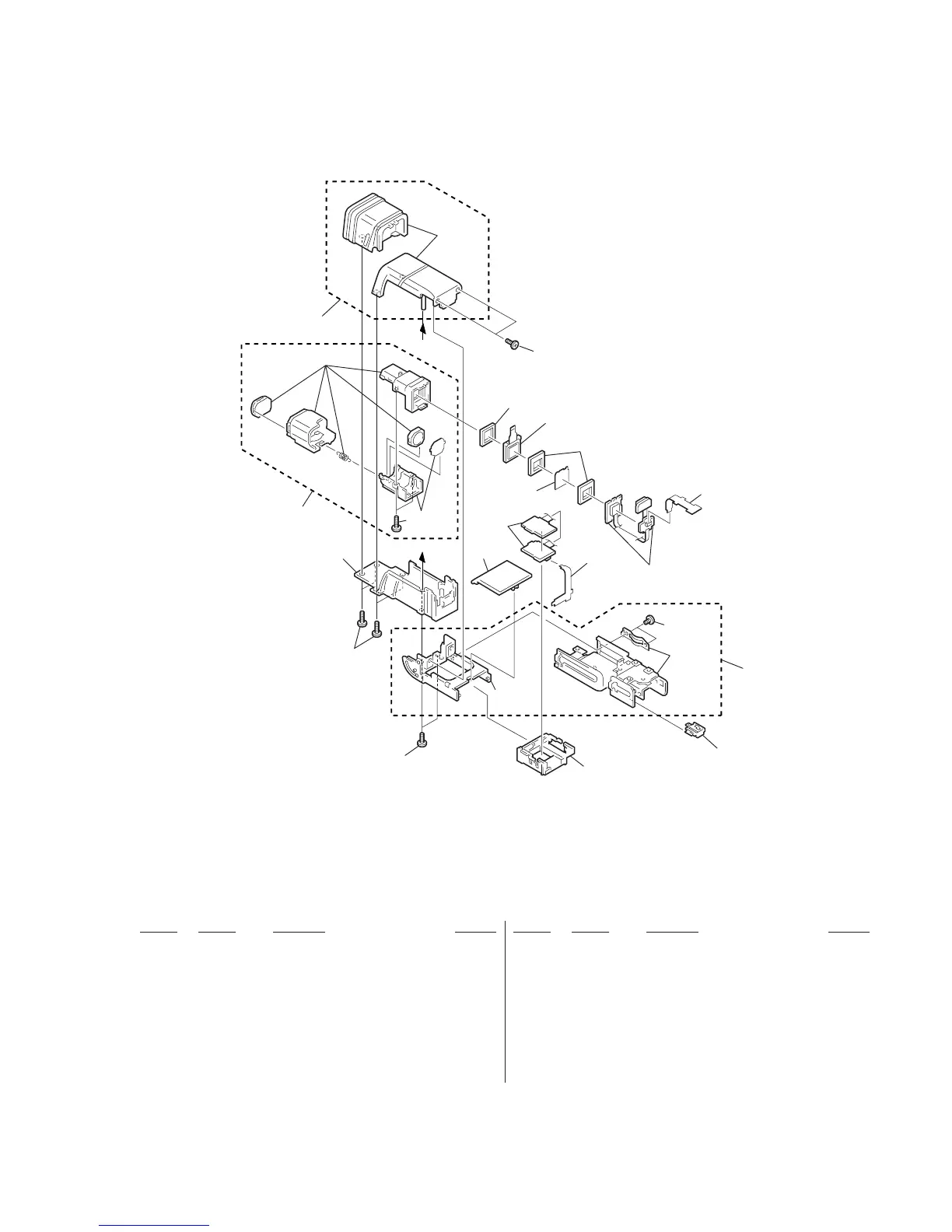

6-1-3. EVF SECTION
a
a
101
102
103
104
114
105
106
107
(Note)
108
109
110
111
112
113
114
115
116
117
LCD902
not
supplied
not
supplied
not supplied
not
supplied
not
supplied
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
* 101 3-988-545-01 HOLDER, VF PC BOARD
* 102 3-988-572-01 CLAMP, VF FLEXIBLE
103 X-3948-474-2 BASE ASSY, VF
104 X-3948-480-1 CABINET (LOWER) ASSY, EVF
105 X-3948-473-1 LENS ASSY (458), VF
106 X-3948-605-1 CABINET (UPPER) ASSY, EVF
107 3-989-416-01 CUSHION (458), LCD
* 108 3-988-563-01 ILLUMINATOR (458), BL
109 A-7073-515-A LB-55 BOARD, COMPLETE
110 1-669-512-21 FP-655 FLEXIBLE BOARD
111 A-7073-514-A VF-121 BOARD, COMPLETE
112 1-669-513-11 FP-656 FLEXIBLE BOARD
113 3-988-552-01 PLATE, VF ORNAMENTAL
114 3-713-791-31 SCREW (M1.7X6), TAPPING, P2
115 3-968-729-01 SCREW (M2), LOCK ACE, P2
116 3-374-657-01 SCREW (M2X2)
* 117 3-960-302-11 CUSHION (1), LCD
LCD902 8-753-023-37 LCX024AK-4
Note: When attaching No. 107 LCD cushions, set its
glossy surface contacts No. 108 BL illuminator.
