HCD-FLX5D/FLX7D
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 4-252-018-01 LID (TC)
52 4-252-046-01 SPRING (LID-L)
53 4-252-047-01 SPRING (LID-R)
54 4-951-620-01 SCREW (2.6X8), +BVTP
55 4-252-015-01 WINDOW (TC)
56 4-225-252-01 CUSHION (FOOT)
57 4-240-965-01 SCREW 2.6X3 +P, S-TITE
58 4-252-050-01 SPRING (LID-MIC)
59 4-252-048-01 SPRING (TC-A)
60 4-252-049-01 SPRING (TC-B)
61 X-2021-009-1 TC HOLDER (A) ASSY
62 X-2021-010-1 TC HOLDER (B) ASSY
63 4-215-062-01 DAMPER
64 1-773-044-11 WIRE (FLAT TYPE) (17 CORE)
65 1-796-910-11 DECK, MECHANICAL (CASSETTE)
66 4-252-021-01 COVER (TC)
#2 7-685-853-04 SCREW +BVTT 2X6 (S)
51
not supplied
CD MOTOR/CD DOOR SW1/MIC/PANEL (U)/
TC DOOR/TC DOOR SW boards section
#2
#2
not supplied
60
52
61
53
62
54
54
54
54
63
63
55
64
56
65
57
66
58
59

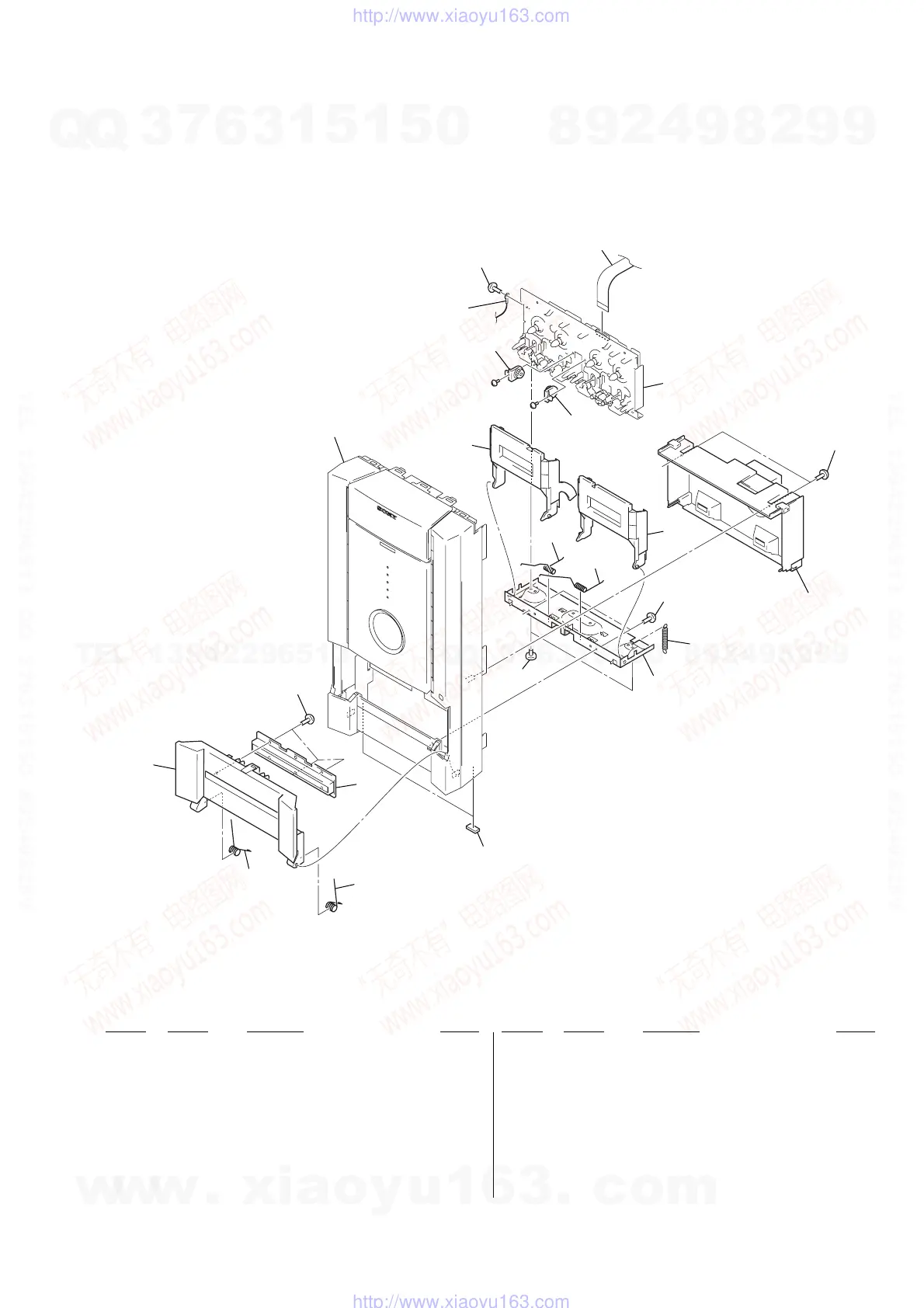

8-2. MECHANICAL (CASSETTE) DECK SECTION
