HCD-FLX5D/FLX7D

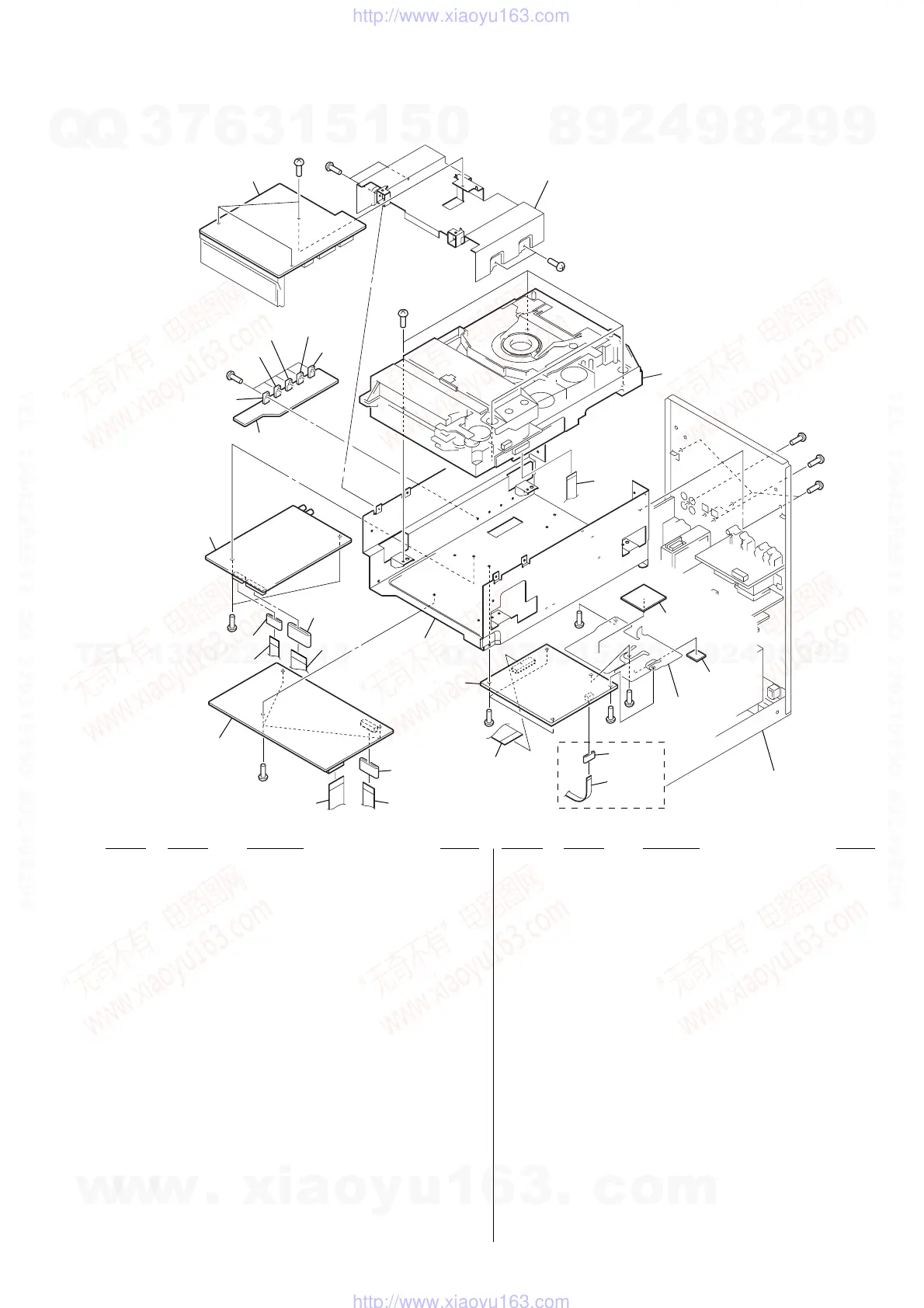

8-6. DSP/GC/MC/MB/REGULATOR BOARDS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 1-782-252-11 WIRE (FLAT TYPE) (9 CORE) (FLX7D)
302 1-824-686-11 WIRE (FLAT TYPE) (13 CORE)
303 1-773-123-11 WIRE (FLAT TYPE) (19 CORE)
304 A-4750-816-A GC BOARD, COMPLETE (EXCEPT FLX5D: TH)
304 A-4753-591-A GC BOARD, COMPLETE (FLX5D: TH)
305 A-1054-119-A MC BOARD, COMPLETE (FLX5D: AUS)
305 A-4750-827-A MC BOARD, COMPLETE (FLX5D: EA)
305 A-4753-513-A MC BOARD, COMPLETE (FLX7D: E15)
305 A-4753-514-A MC BOARD, COMPLETE (FLX7D: EA)
305 A-4753-516-A MC BOARD, COMPLETE (FLX5D: E3, E15)
305 A-4753-518-A MC BOARD, COMPLETE
(FLX5D: SP, MY, KR, PH)
305 A-4753-520-A MC BOARD, COMPLETE (FLX5D: E2)
305 A-4753-570-A MC BOARD, COMPLETE (FLX5D: TH)
306 A-1053-969-A DSP BOARD, COMPLETE
(FLX5D: E2, E3, E15, SP, MY, PH)
306 A-1054-049-A DSP BOARD, COMPLETE (FLX7D: E15)
306 A-1054-092-A DSP BOARD, COMPLETE (FLX5D: AUS)
306 A-1054-307-A DSP BOARD, COMPLETE (FLX5D: KR)
306 A-1065-322-A DSP BOARD, COMPLETE (FLX5D: EA)
306 A-1065-337-A DSP BOARD, COMPLETE (FLX7D: EA)
306 A-4753-576-A DSP BOARD, COMPLETE (FLX5D: TH)
307 1-684-271-11 REGULATOR BOARD
308 1-773-049-11 WIRE (FLAT TYPE) (17 CORE)
309 A-1053-209-A MB BOARD, COMPLETE (FLX5D: TH)
309 A-1058-624-A MB BOARD, COMPLETE
(EXCEPT FLX5D: TH/FLX7D)
309 A-1058-628-A MB BOARD, COMPLETE (FLX7D)
310 1-824-652-11 WIRE (FLAT TYPE) (29 CORE)
311 1-773-105-11 WIRE (FLAT TYPE) (19 CORE)
312 1-769-937-11 WIRE (FLAT TYPE) (11 CORE)
316 1-469-829-11 CORE, FERRITE (FLX7D: EA)
317 1-400-640-11 CORE, FERRITE
(FLX5D: EA, KR, AUS/FLX7D: EA)
318 1-469-854-11 CORE, FERRITE
(FLX5D: EA, KR, AUS/FLX7D: EA)
319 1-400-092-11 CORE, FERRITE
(FLX5D: EA, KR, AUS/FLX7D: EA)
IC801 6-703-546-01 IC TA7804LS
IC802 8-759-231-53 IC TA7805S
IC803 8-759-231-57 IC TA7810S
IC804 8-759-231-53 IC TA7805S
Q864 8-729-209-60 TRANSISTOR 2SB1375
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
CDM53N-DVBU14
303
305
306
(FLX7D)
311
312
301
310
302
309
308
307
