120
HCD-FLX5D/FLX7D
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 4-986-463-01 WASHER (14B)
102 4-239-000-01 CAM
103 4-238-999-01 GEAR (A)
104 4-253-748-01 BELT
105 4-239-726-01 PULLEY
106 4-639-890-01 SCREW (+B M2.6×2.5)
107 4-951-620-01 SCREW (2.6X8), +BVTP
108 1-828-354-11 WIRE (FLAT TYPE) (17 CORE)
109 1-861-351-11 CD DOOR SW1 BOARD
110 4-957-577-01 SCREW PTP WH (2.6×8) (DIA. 10)
111 1-861-345-11 TC DOOR SW BOARD
112 1-861-346-11 TC DOOR BOARD
113 A-4750-814-A MIC BOARD, COMPLETE (EXCEPT FLX5D: TH)
113 A-4753-582-A MIC BOARD, COMPLETE (FLX5D: TH)
114 1-500-082-11 CLAMP, SLEEVE FERRITE
(FLX5D: EA, KR, AUS/FLX7D: EA)
M301 1-541-632-12 MOTOR, DC (CD DOOR OPEN/CLOSE)
PM301 1-454-887-32 SOLENOID, PLUNGER (DECK A)
PM302 1-454-887-32 SOLENOID, PLUNGER (DECK B)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
not supplied
moving panel section
#1
#1
101
110
102
111
103
112
104
113
105
106
107
107
107
107
107
107
107
107
108
109
not supplied
not supplied
supplied with J351
not
supplied
not supplied
not supplied
not supplied
PM301
PM302
not supplied
M301
not supplied
not supplied
(CD MOTOR board)
not supplied
(PANEL (U) board)
not
supplied
114

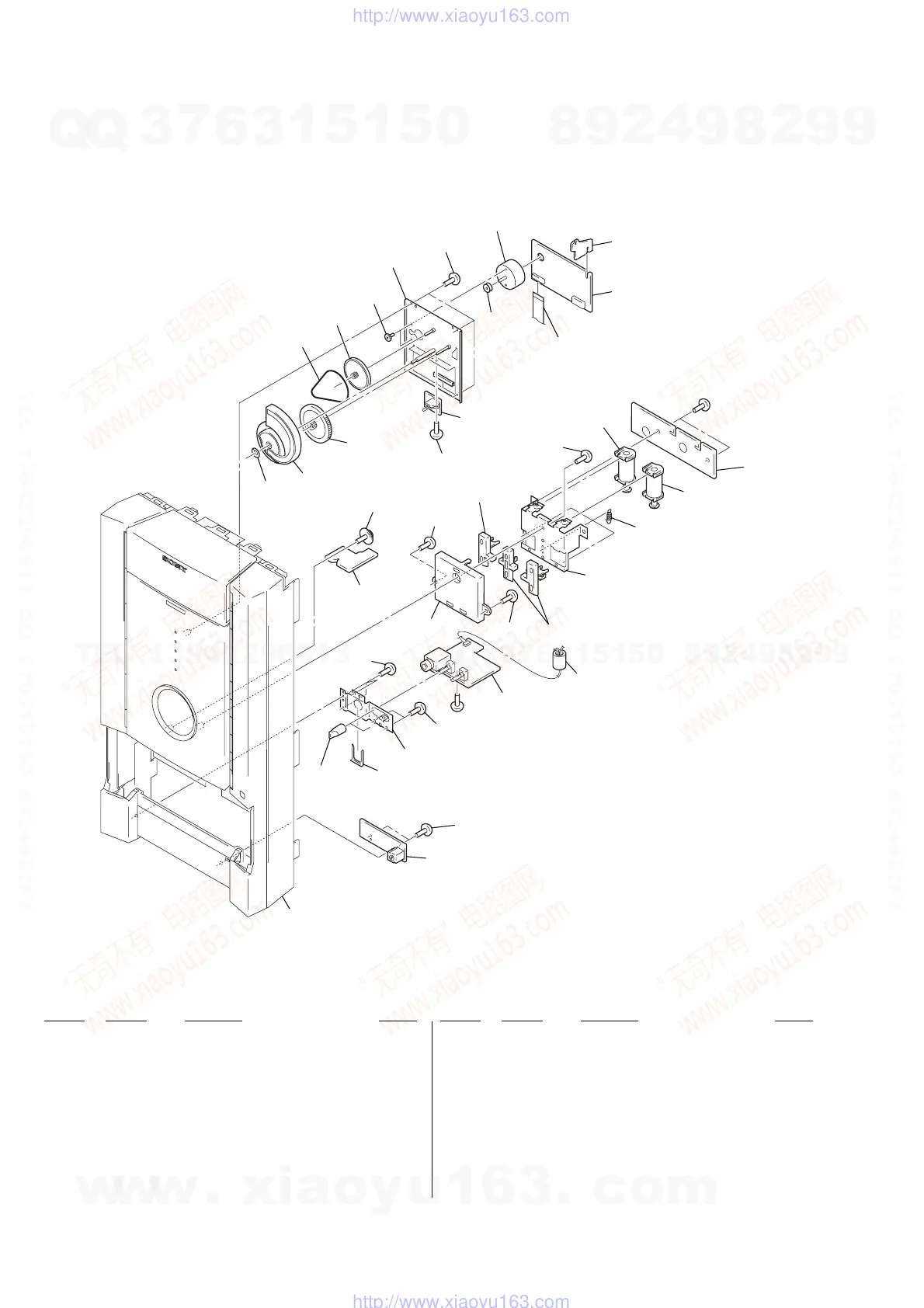

8-3. CD MOTOR/CD DOOR SW1/MIC/PANEL (U)/TC DOOR/TC DOOR SW BOARDS SECTION
Ver 1.1
