16
HCD-FLX5D/FLX7D

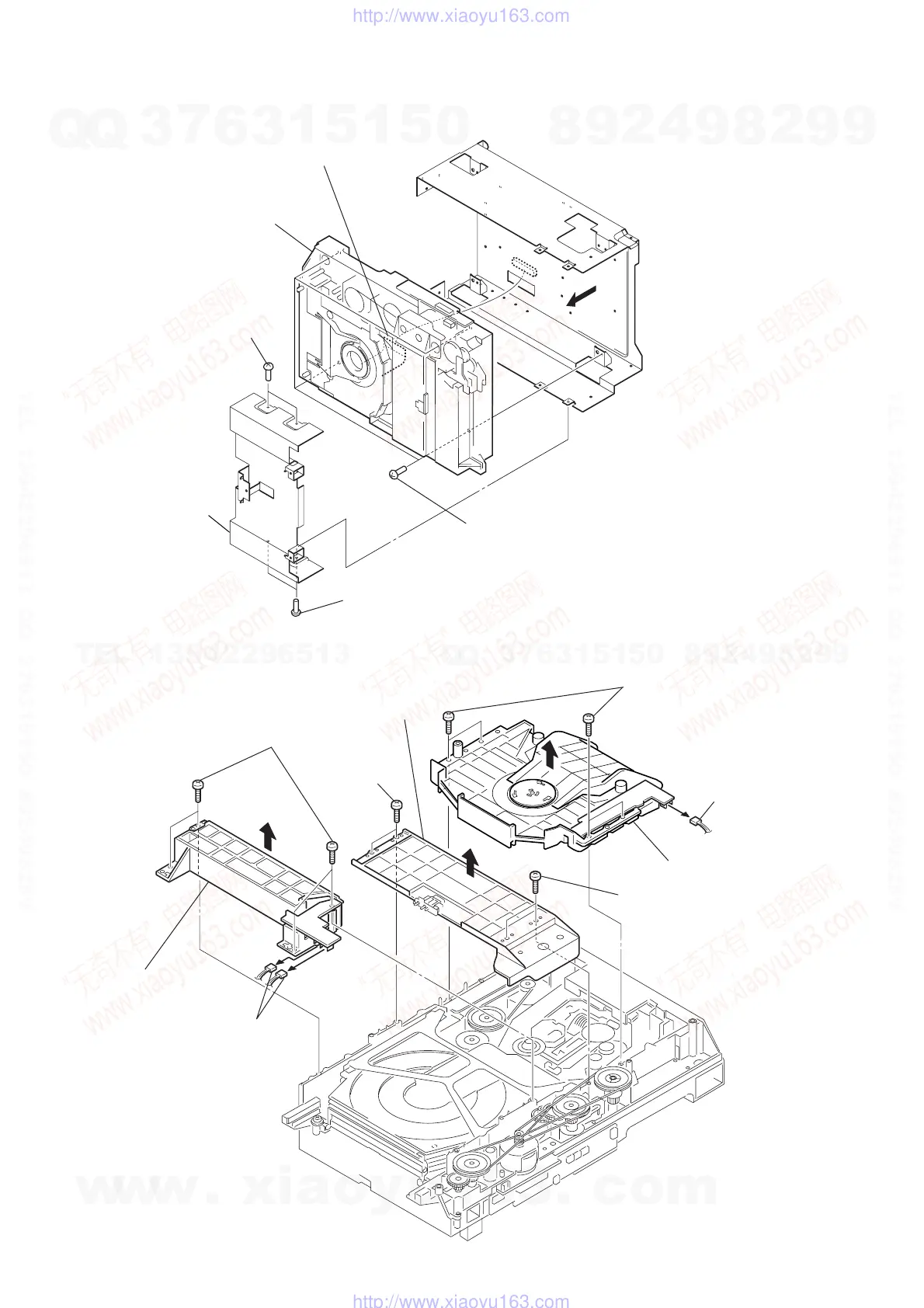

3-9. DVD MECHANISM DECK (CDM53N-DVBU14)
1
two screws
(BVTP3
×
8)
1
two screws
(BVTP3
×
8)
2
bracket (FL)
3
wire (flat type) (29core)
(CN501)
5
DVD mechanism deck
(CDM53N-DVBU14)
4
four screws
(BVTP3
×
8)
Note: Please turn a DSP/MB/MC boards side
down and do not do decomposition work.
3-10. FITTING BASE (GUIDE) ASSY, BRACKET (CHASSIS), MAGNET ASSY
1
two connectors
(CN709, CN715)
7
connecto
(CN710)
9
magnet assy
2
four screws
(BTTP M2.6)
8
four screws
(BTTP M2.6)
4
two screws
(BTTP M2.6)
6
bracket
(chassis)
5
two screws
(BTTP M2.6)
3
fitting base
(guide) assy
