HCD-FLX5D/FLX7D

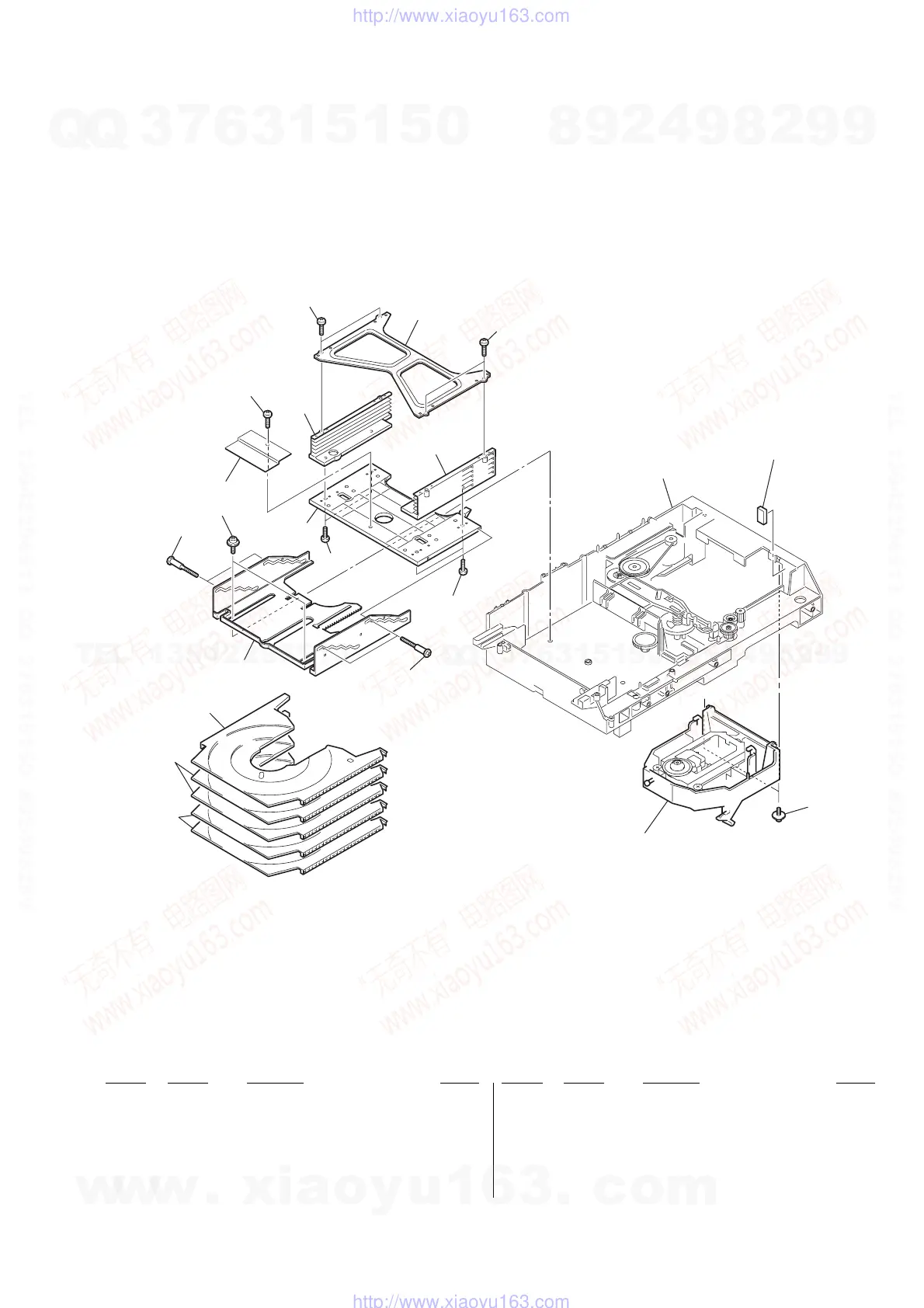

8-12. DVD MECHANISM DECK SECTION-3
(CDM53N-DVBU14)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
601 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
602 4-211-234-01 BRACKET (STOCKER T)
604 4-239-789-01 TRAY (DBU-1)
607 4-218-253-52 SCREW (M2.6), +BTTP
610 4-211-244-03 SCREW, STEP
611 4-211-223-01 SLIDER (U/D)
612 4-933-134-01 SCREW (+PTPWH M2.6×6)
613 4-221-504-01 BASE (STOCKER), FITTING
614 4-211-211-01 STOCKER (R)
615 4-211-210-01 STOCKER (L)
616 4-218-253-22 SCREW (M2.6), +BTTP
not supplied
not supplied
base unit section
(DVBU14)
601
610
604
604
604
611
610
612
615
616
616
614
602
613
DVD mechanism deck section-4
616
616
607
