HCD-FLX5D/FLX7D

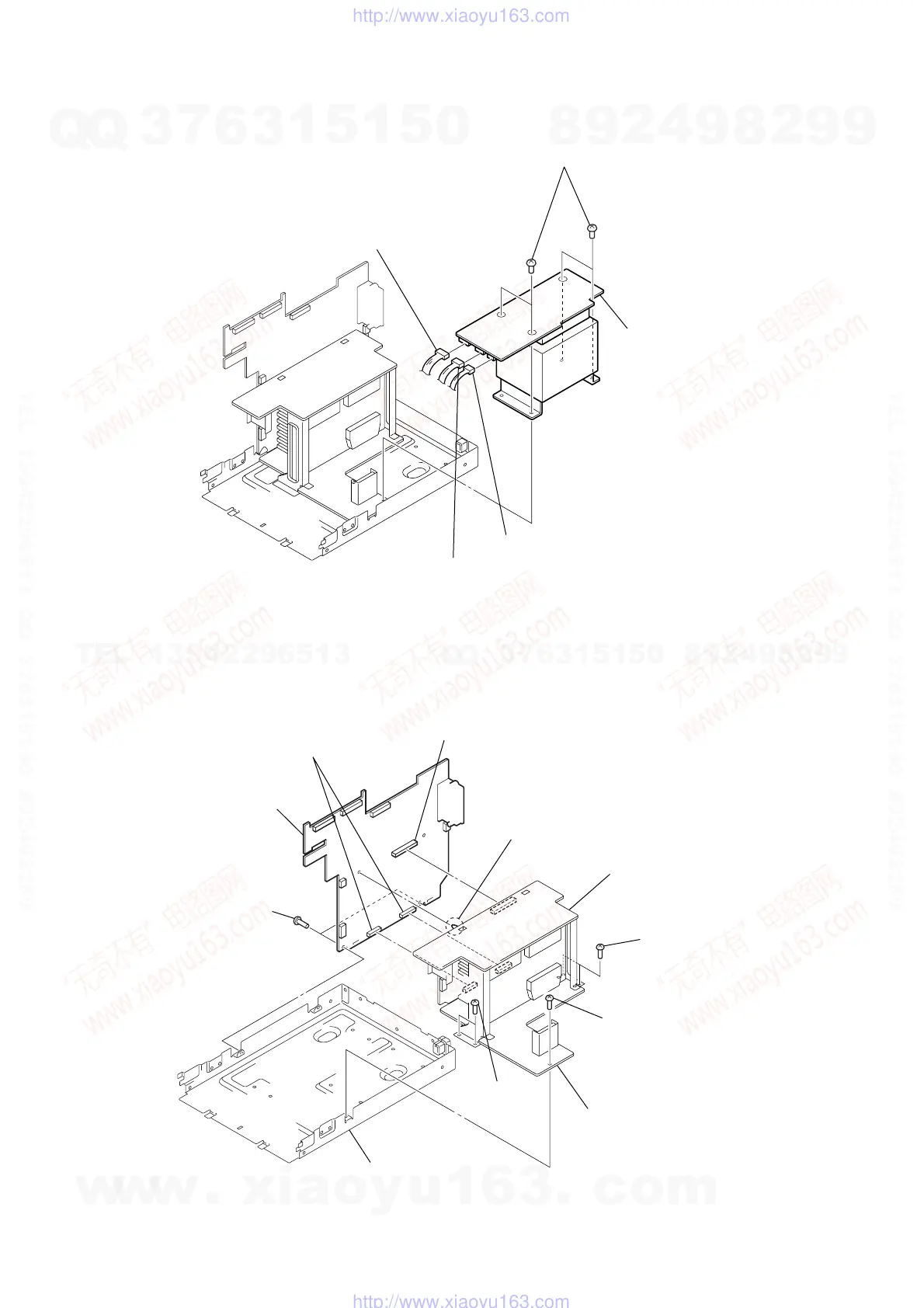

3-18. SP RELAY BOARD
3-17. TRANS BOARD
3 TRANS board
2 four screws
1 connector (CN915)
1 connector (CN914)
1 connector (CN916)
1 screw (BVTP3 × 8)
1 two screws
(BVTP3 × 8)
1 two screws
(BVTP3 × 8)
3 two connectors
(CN803, CN804)
5 connector
(CN801)
6 SP RELAY board
4 PC board holder
FRONT REAR AMP boar
d
CENTER SW AMP board
2 chassis
1 two screws
(BVTP3 × 8)
