HCD-FLX5D/FLX7D
4141
7-8. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

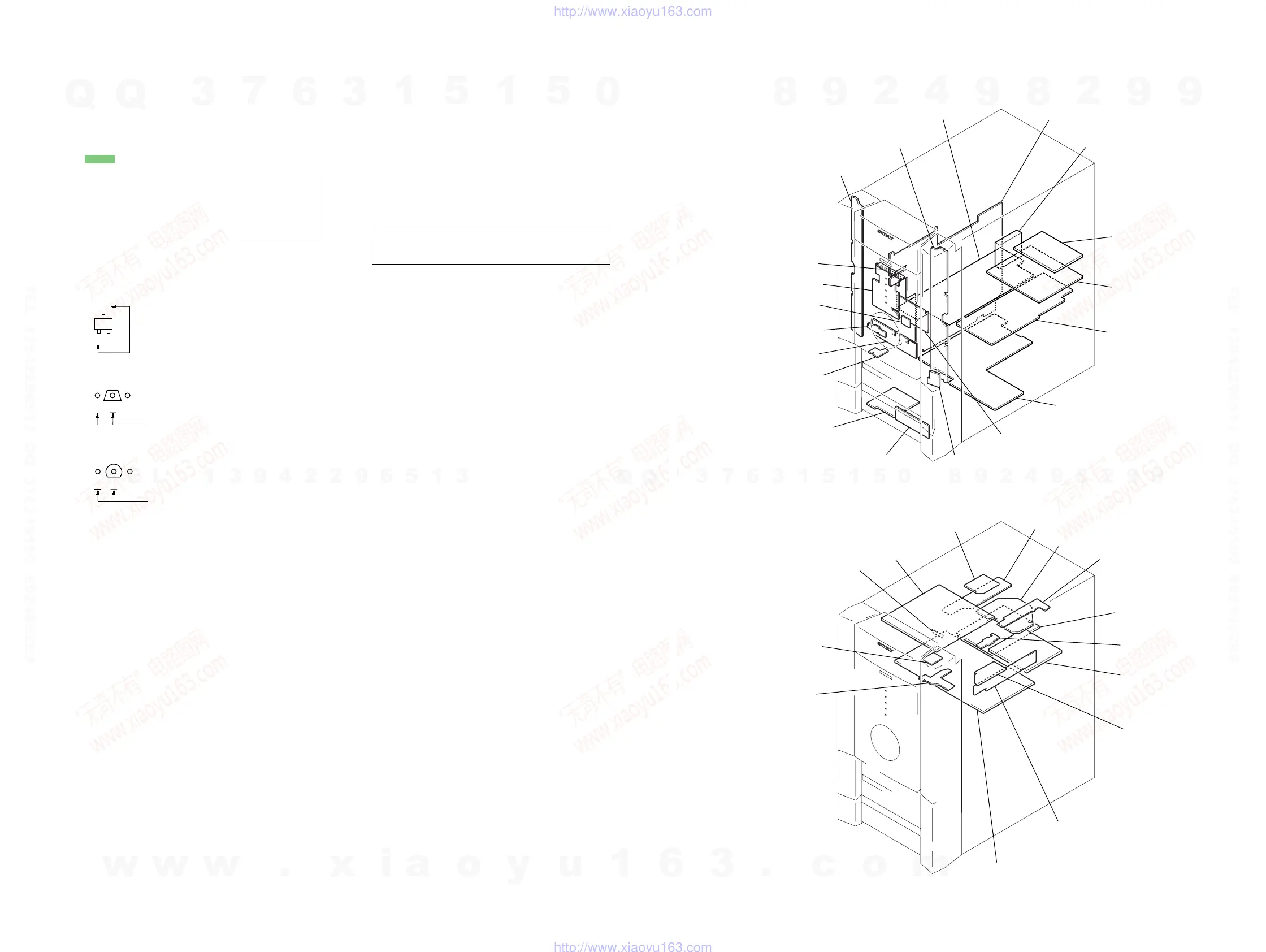

• Circuit Boards Location
SP RELAY board
TUNER PACK
VIDEO board
SUB TRANS board
TRANS board
CENTER SW AMP board
TC DOOR board
TC DOOR SW board
CD DOOR SW 2 board
CD DOOR SW 1 board
CD DOOR board
MIC board
CD MOTOR board
SIRCS board
PANEL (L) board
PANEL (U) board
PANEL (R) board
BLUE LED board
FRONT REAR AMP board
REGULATOR board
RF board
IN/MIDIN SW board
DSP board
INIT/COUNT SW board
CONNECT board
MB board
LOADING MOTOR board
MC board
OUT/MIDOUT SW board
SENSOR board
SENSOR 2 board
CLAMP MOTOR board
GC board
Note on Printed Wiring Boards:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
•
f
: internal component.
• : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
• MB board is multi-layer printed board.
However, the patterns of intermediate layers have not been
included in diagrams.
• Indication of transistor.
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
•
f
: internal component.
• 2 : nonflammable resistor.
• 5 : fusible resistor.
• C : panel designation.
• A : B+ Line.
• B : B– Line.
• H : adjustment for repair.
•Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
– RF/MB/VIDEO Boards –
no mark : DVD PLAY
(): CD PLAY
∗
: Impossible to measure
– Other Boards –
no mark : TUNER
(): CD PLAY
<>: DVD PLAY
[]: TAPE PLAY (DECK A)
{ }: TAPE PLAY (DECK B)
〈〈 〉〉 : REC
∗
: Impossible to measure
•Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F : AUDIO
L : VIDEO
E : Y
a : CHROMA
r : COMPONENT VIDEO
f : TUNER
E : TAPE PLAY (DECK A)
d : TAPE PLAY (DECK B)
G : REC (DECK B)
J : CD PLAY
c : DVD PLAY
I : SACD PLAY
N : MIC
j : VIDEO (SAT)
i : OPTICAL DIGITAL IN
•Abbreviation
AUS: Australian model
E2 : 120 V AC area in E model
E3 : 240 V AC area in E model
E15 : 220V - 240 V AC area in E model
EA : Saudi Arabia model
KR : Korean model
MY : Malaysia model
PH : Philippines model
SP : Singapore model
TH : Thai model
Caution:
Pattern face side: Parts on the pattern face side seen from
(Conductor Side) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Component Side) the parts face are indicated.
Note: The components identified by mark 0 or dotted line
with mark 0 are critical for safety.
Replace only with part number specified.
