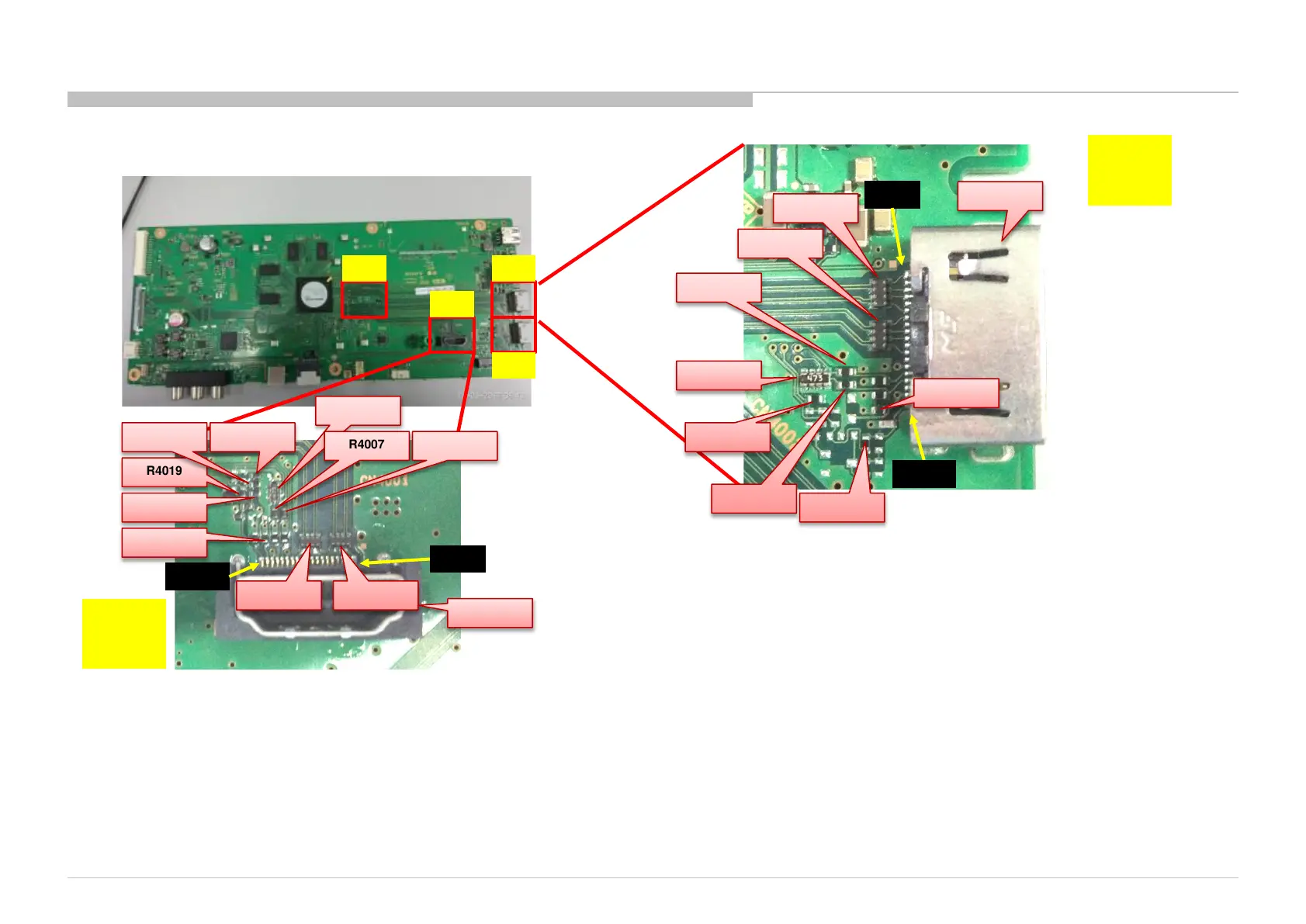

HDMI No picture– Checking Point
HDMI – No picture
67
Pin 19
Pin 1
Zoom 1
Zoom 2 Zoom 4
Zoom 3
R4019
R4016
RB4001
VR4010
L4003 L4002
Zoom 1 :
HDMI1
CN4001
Zoom 2 :
HDMI2
Pin 1
Pin 19
L4004
L4005
RB4002
VR4011
More on the next slide…
CN4002
R4007 R4004
R4005
R4008
R4022 R4025 R4044
R4043
67
