Sony KD-43X720E - Block Diagrams

I2S
2SP
Side-Key (3keys)

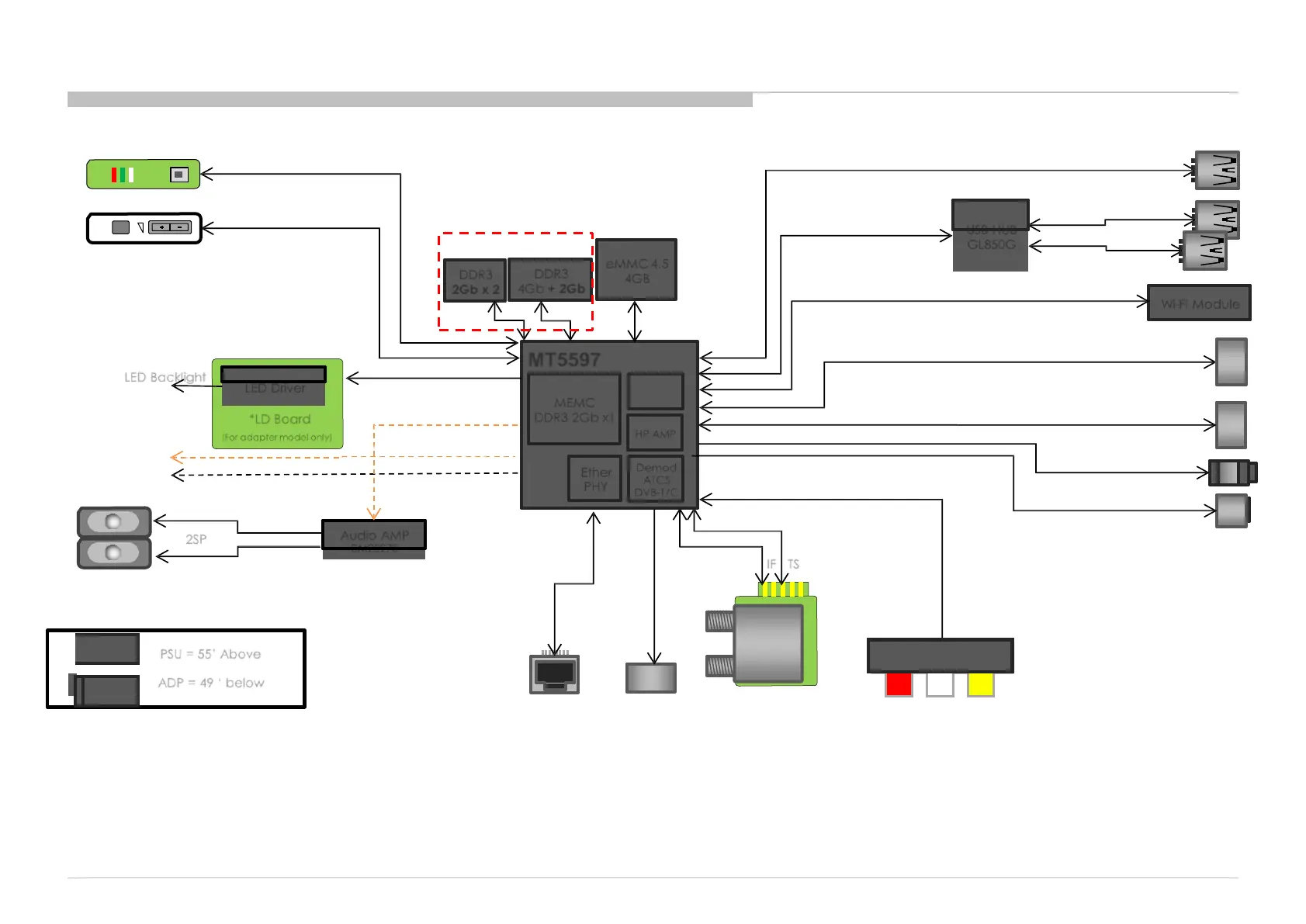

Block Diagram FY17 (KC)-4K (BB8 PWB for COL,BR,PAA,PAD,LA,PH,CH,TW)
I / O
CH/INPUT
IF TS
Vx1
MT5597
Ether
PHY
Demod
ATCS
DVB-T/C
MEMC
DDR3 3.11b
x1
HP AMP
USB HUB
GL850G
H-Board
(SIRCS,LED)
Wi-Fi Module
HDMI 3
(ARC)
Audio AMP
BM28270
HDMI 2
eMMC 4.5
4GB
DDR3
2Gb x 2
LED Driver
I2C
PWM
*LD Board
(For adapter model only)
LED Backlight
USB2.0
STBY USB Port
HP/A-OUT
DDR3
4Gb + 2Gb
32bit
32bit
USB2.0
USB2.0
USB2.0
Stack
connector
OPT
SPDIF
I2C
HDMI 1
Ether
PSU = 55’ Above
ADP = 49 ‘ below
*Depends on destination
USB2.0
AC-IN
DC-IN
Composite
139
5-2. Block Diagram
