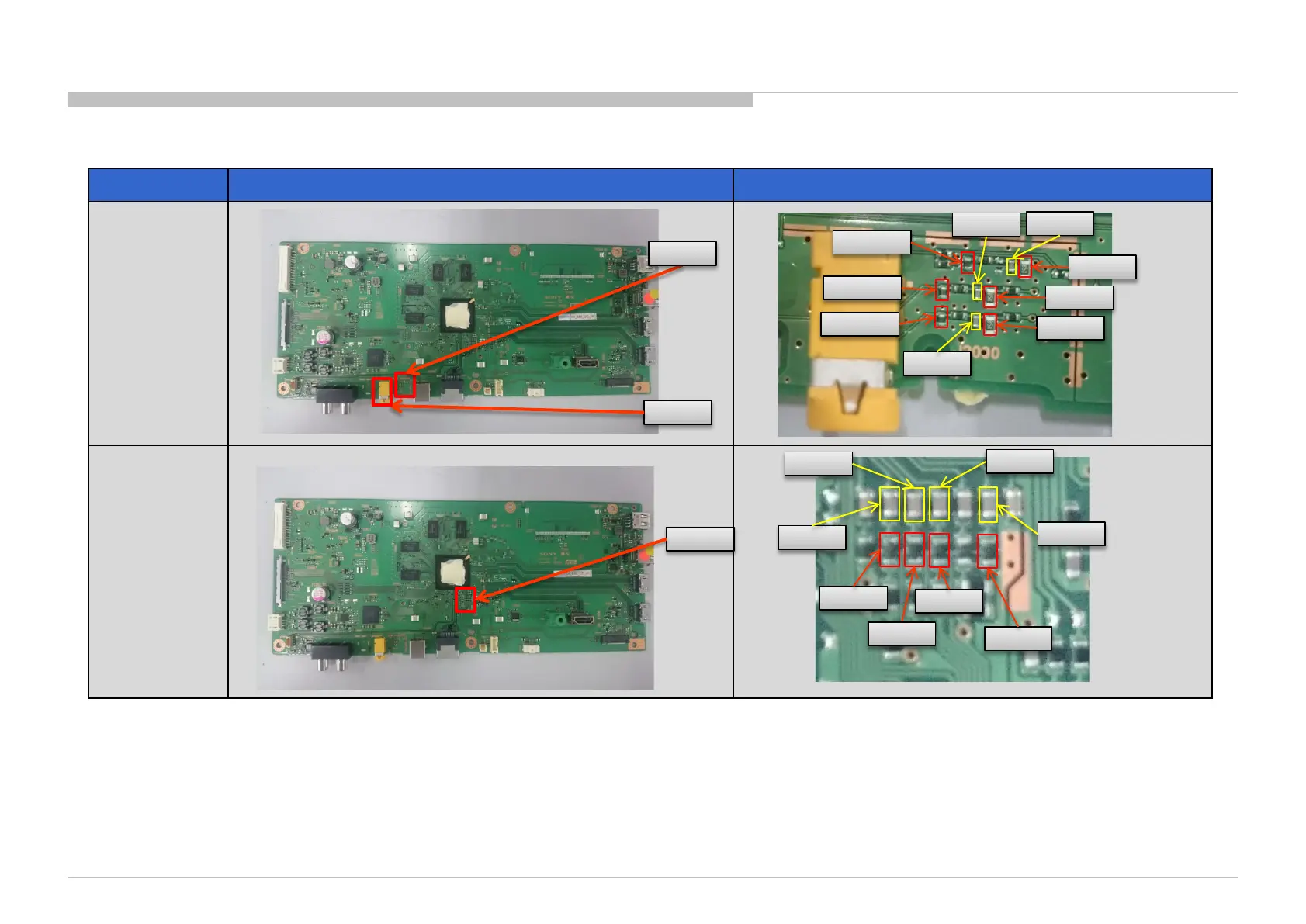

3.9.2 Video Analog Signal Path – No Picture – Checking Point - No Picture UC Destination (BB8)
Board Name Board PWB (A side) Details
BB8 (UC)
J2000
R2004
R2005
R2006
C2000
C2001
C2002
VR2000
VR2001
VR2002
BB8 (UC)
C2003
C2006
C2008
C2009
R2014
R2017
R2018
R2019
Details
J2000
Details
R2004
R2014
R2018
R2019
R2017
C2003
C2006
C2008
C2009
R2005
R2006
C2000
C2001
C2002
VR2000
VR2001
VR2002
