3-2. KD-49X7*E

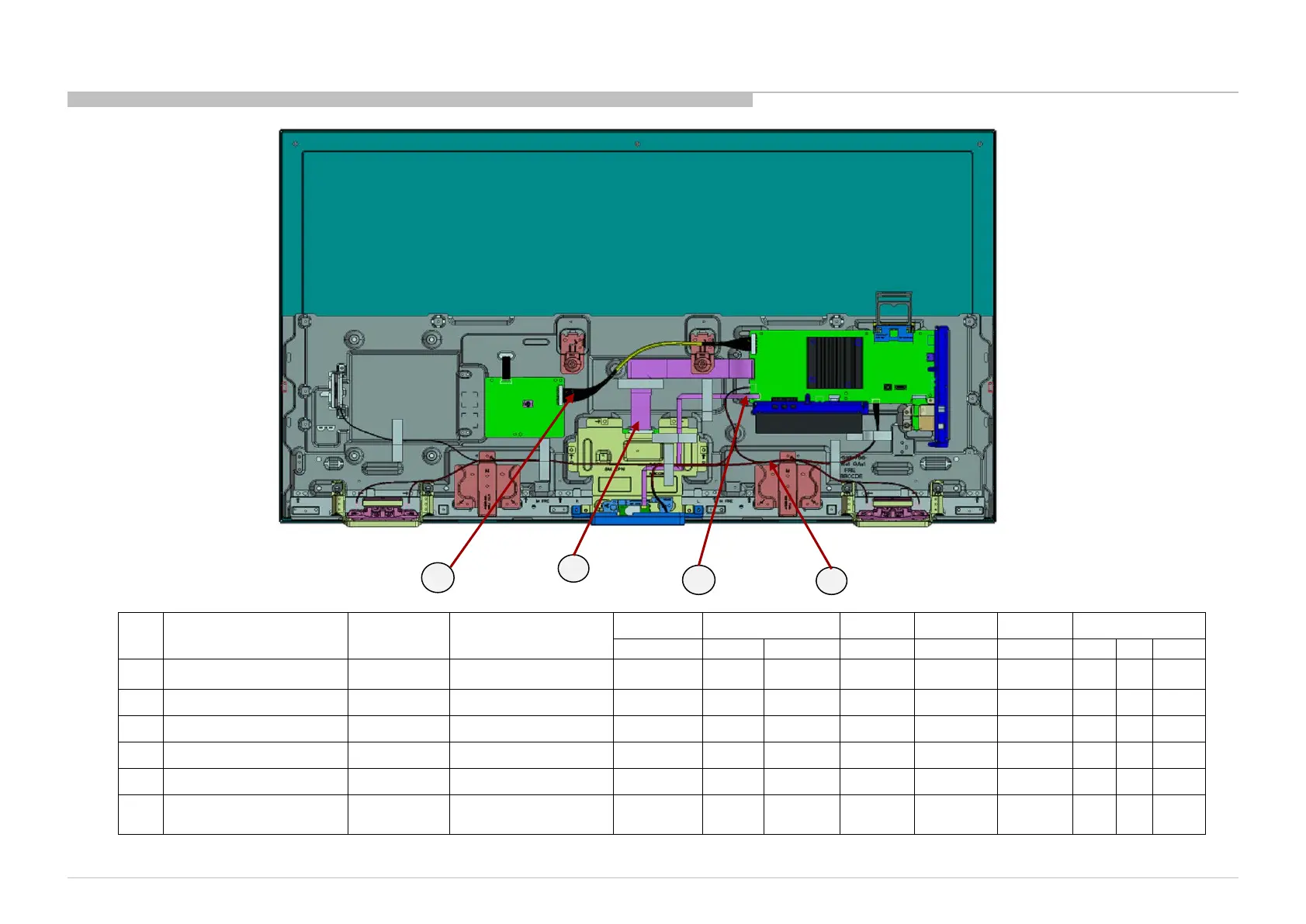

3-2-3. Connectors
WILL BE UPDATED SOON
82
81
83
84
REF.
NO.
DESCRIPTION PART NO. REMARKS
KD-49X705E KD-49X720E
KD-49X706E
KD-49X727E KD-49X700E
KD-49X725E
BR6 UC2 LA1 LA8 CO1 LA1 LA8 ECU AR4
81 CONNECTOR ASSY 30P 1-910-806-12
CN5500(BB8)-
CN3000(LD)(1) • • • • • • • • •
82 FLEXIBLE FLAT CABLE 5P 1-912-081-11 CN9500(BB8)-WIFI (1) n/a • • • • • • • •
82 FLEXIBLE FLAT CABLE 5P 1-912-078-11 CN9500(BB8)-WIFI (1) • n/a n/a n/a n/a n/a n/a n/a n/a
83 FLEXIBLE FLAT CABLE 51P 1-912-073-11 CN9000(BB8)-TCON (1) n/a • • • • • • • •
83 FLEXIBLE FLAT CABLE 51P 1-912-084-11 CN9000(BB8)-TCON (1) • n/a n/a n/a n/a n/a n/a n/a n/a
84 HARNESS ASSY 1-910-806-11
CN9501(BB8)-CN203(SM)-
CN001(HKZ)(1)
