Hooking Up and Setting Up the Speaker System
If the nominal impedance of
your speaker is
Set IMPEDANCE SELECTOR to
Between 4 and 8 ohms 4Ω
8 ohms or higher 8Ω
Selecting the impedance
Set the IMPEDANCE SELECTOR for the speakers as
indicated in the table below. Check the instruction
manual of your speakers if you’re not sure of the
impedance. (This information is usually printed on a
label on the back of the speaker.)
Note
Be sure to connect front speakers with a nominal impedance of 8
ohms or higher if you want to select both sets (A+B) of front
speakers (see page 23).

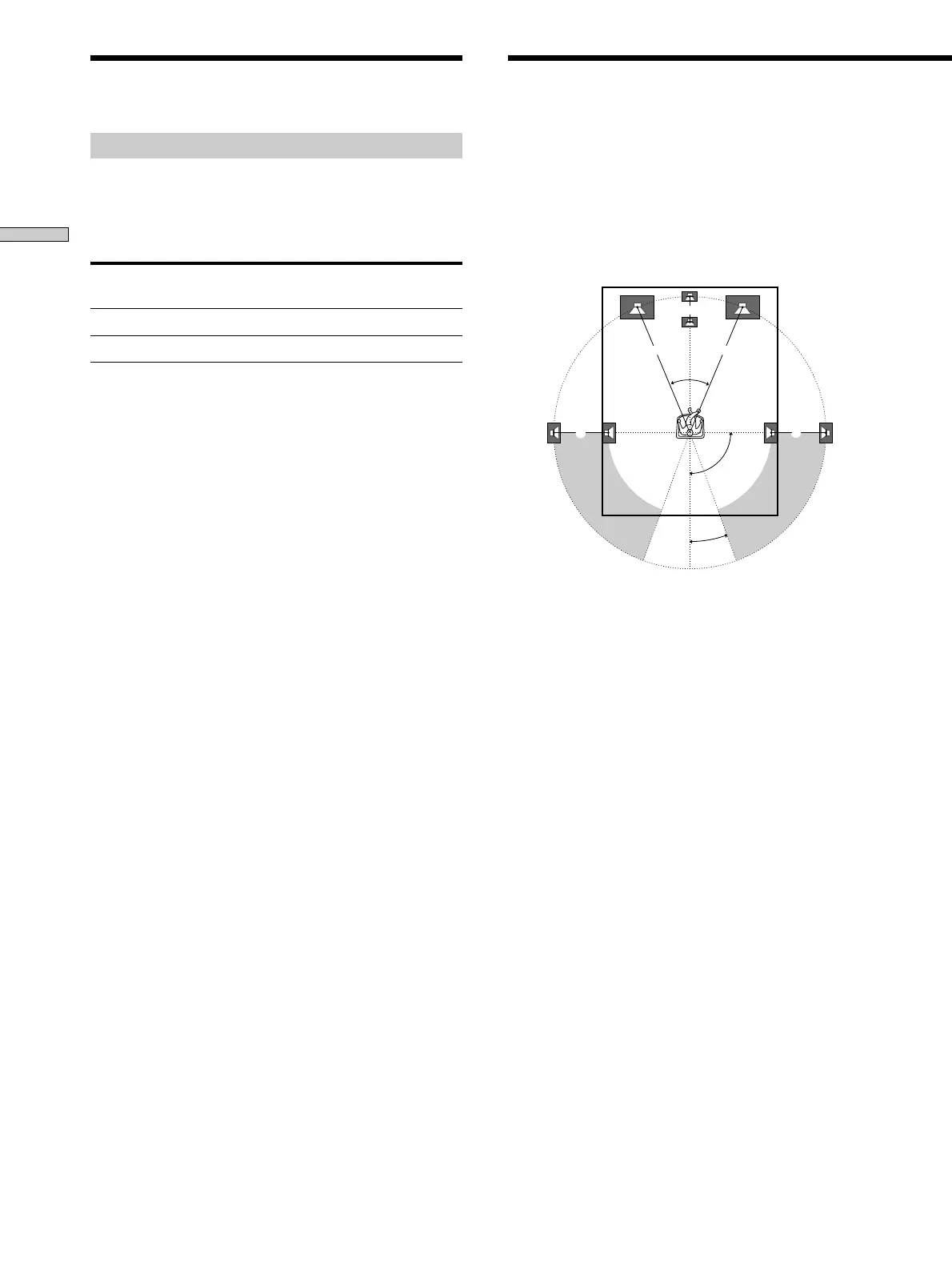

Multi-Channel Surround
Setup
For the best possible surround sound all speakers should
be the same distance from the listening position (A).
(However, this unit lets you to place the center speaker up
to 1.5 meters (5 feet) closer (B) and the rear speakers up
to 4.5 meters (15 feet) closer (C) to the listening position.
The front speakers can be placed from 1.0 to 12.0 meters (3
to 40 feet) from the listening position (A).)
Note
Do not place the center or rear speakers farther away from the
listening position than the front speakers.
45°
90°
20°
A A
B
CC
Speaker System Hookup
To Next Page
