Sony STR-DA50ES User Manual

5
GB
Hooking Up the Components
AM
y
ANTENNA
FM
75Ω
COAXIAL
+
–
RLR LRL
SPEAKERS
IMPEDANCE USE 4–16Ω
CENTERREARFRONTBA
S-VIDEO
IN
VIDEO
S-VIDEO
OUT
VIDEO
S-VIDEO
OUT
VIDEO
S-VIDEO
IN
VIDEO
S-VIDEO
OUT
VIDEO
DVD IN OPT
DVD IN
COAXIAL
S-VIDEO
IN
VIDEO
IN
L
R
REC OUT
SIGNAL GND
AM
AUDIO
IN
L
R
L
R
AUDIO
OUT
AUDIO
IN
AUDIO
OUT
AUDIO
IN
CTRL A1
FRONT REAR WOOFER CENTER
y
y
ANTENNA
TAPE
VIDEO 2
TV/LD DVD
S-LINK
S-VIDEO
IN
VIDEO
AUDIO
IN
DIGITAL
VIDEO 1 MONITOR
PRE OUT
AC OUTLET
IN
PHONO
IN
CD
IN REC OUT
MD/DAT
FM
75Ω
COAXIAL
TV/LD IN OPT
CD IN OPT
MD/DAT OUT OPT
MD/DAT IN OPT
L
R
FRONT REAR CENTER
5.1 INPUT
4 Ω 8 Ω
IMPEDANCE
SELECTOR
WOOFER
FM wire antenna
(supplied)
AM loop antenna
(supplied)
Important
If you connect the receiver to an outdoor antenna, ground
it against lightning. To prevent a gas explosion, do not
connect the ground wire to a gas pipe.
Note
Do not use the SIGNAL GND y terminal for grounding the
receiver.
Terminals for connecting the antennas
Connect the To the
AM loop antenna AM terminals
FM wire antenna FM 75Ω COAXIAL terminal
Notes on antenna hookups
•To prevent noise pickup, keep the AM loop antenna
away from the receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as
horizontal as possible.

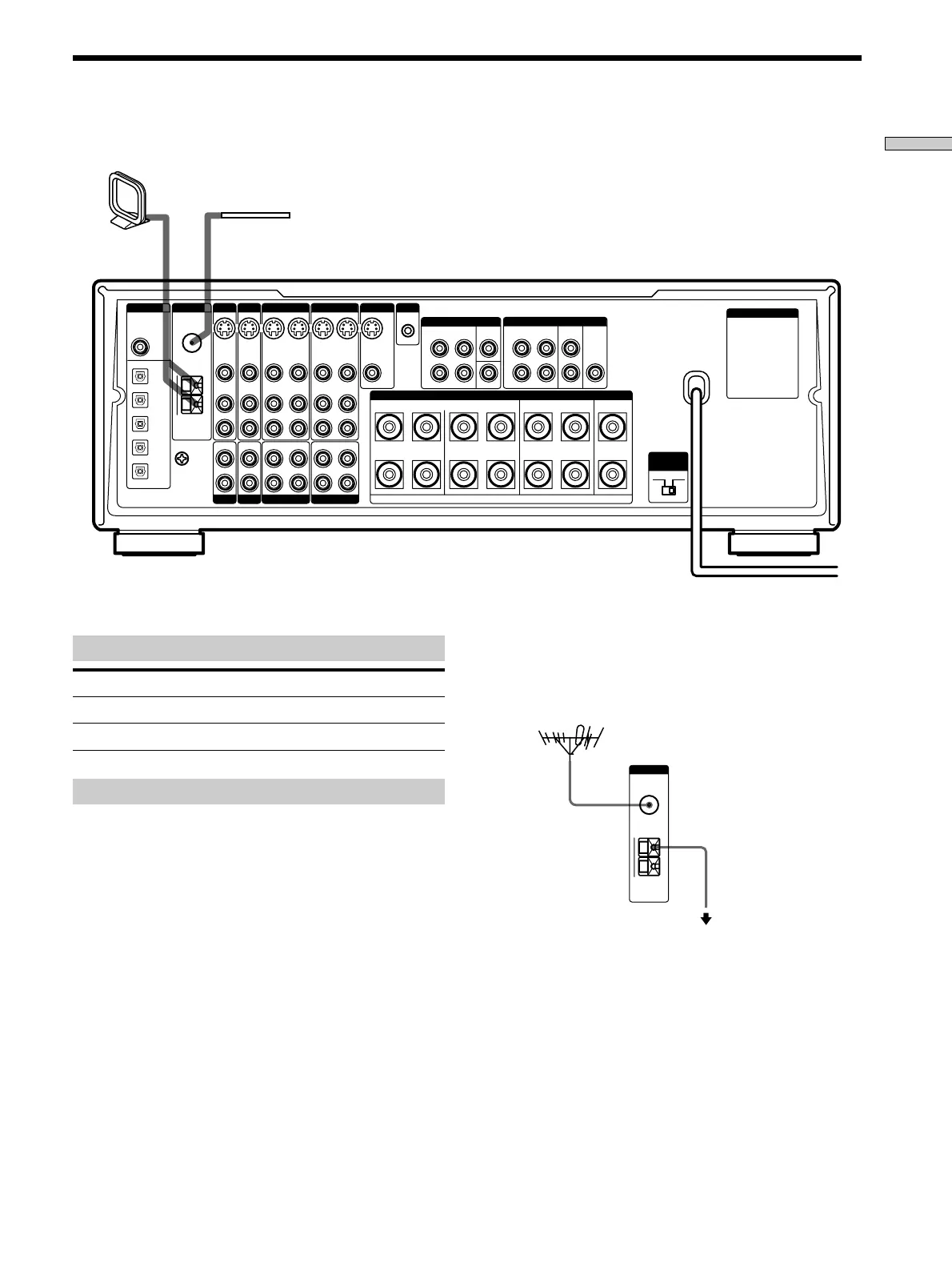

Antenna Hookups
Ground wire
(not supplied)
To ground
Receiver
Outdoor FM antenna
z
If you have poor FM reception
Use a 75-ohm coaxial cable (not supplied) to connect the receiver
to an outdoor FM antenna as shown below.
