101SR 430, SR 450

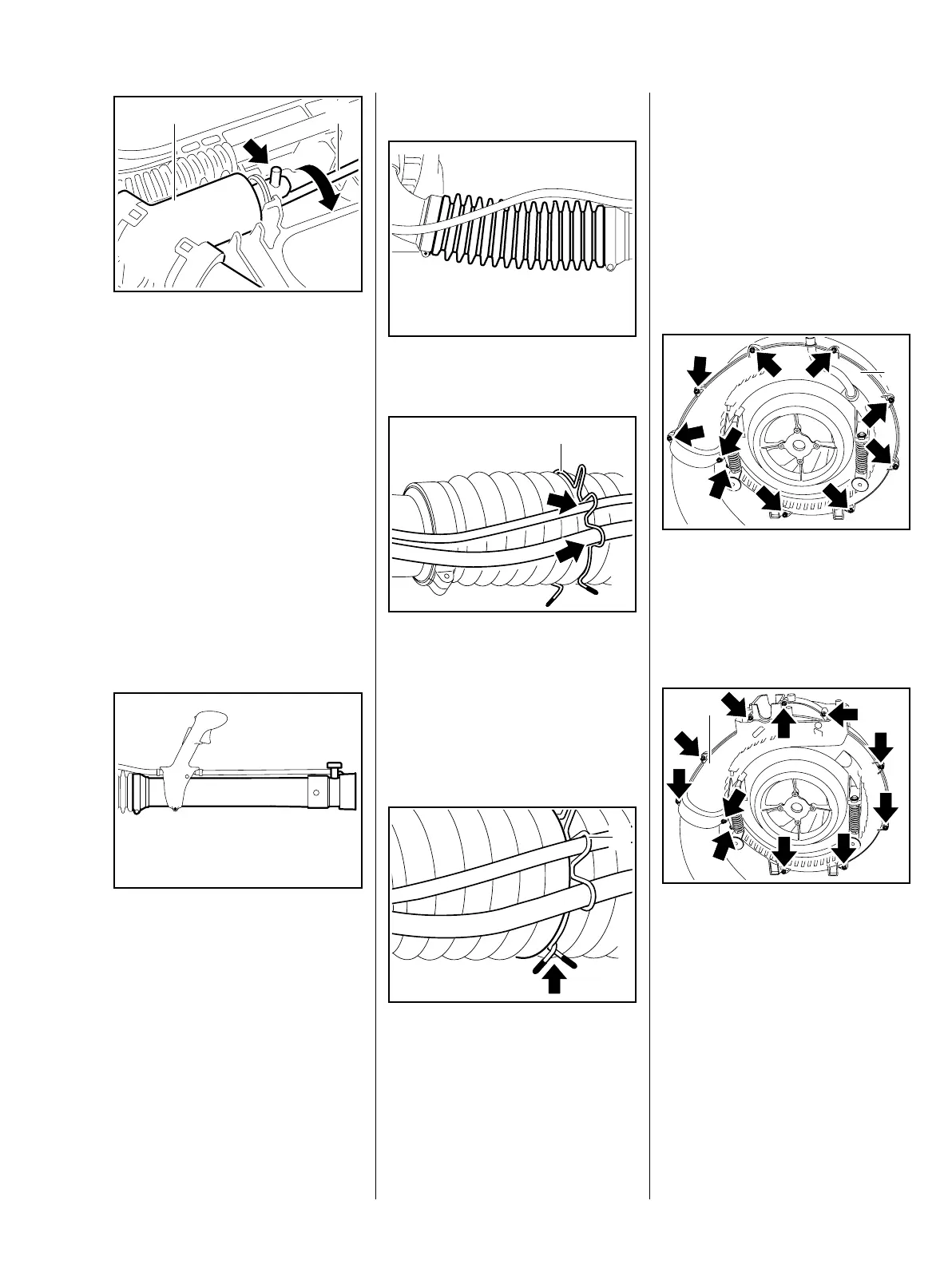

– Hold the valve (1) in the handle
housing.
: Position the rod (2) in the handle
housing and rotate it so that its
bent end (arrow) faces up.
– Install the interlock lever and
throttle trigger, b 8.3
–Install the
valve, b 8.4
– Reassemble all other parts in the
reverse sequence.
10.10 Blower Tube
– See instruction manual
0002RA502 TG
1
2
0002RA424 TG
10.10.1 Pleated Hose
– See instruction manual
– Counting from the elbow, fit the
hose clamp (1) over the sixth
pleat in the hose.
: Lift the hose clamp (1) a little and
fit the hoses (arrows)
– do not cross the hoses over.
: Straighten the hoses and
close (arrow) the hose clamp (1).
0002RA423 TG0002RA425 TG
1
0002RA426 TG
1
10.10.2 Elbow
– Remove the pleated hose – see
instruction manual.
– Remove the blower housing,
SR 430 b 10.7,
SR 450 b 10.8
SR 430 version
: Take out the screws (arrows).
– Lift away the blower housing (1).
SR 450 version
: Take out the screws (arrows).
– Lift away the blower housing (1).
0002RA380 TG
1
0002RA365 TG
1
