105SR 430, SR 450

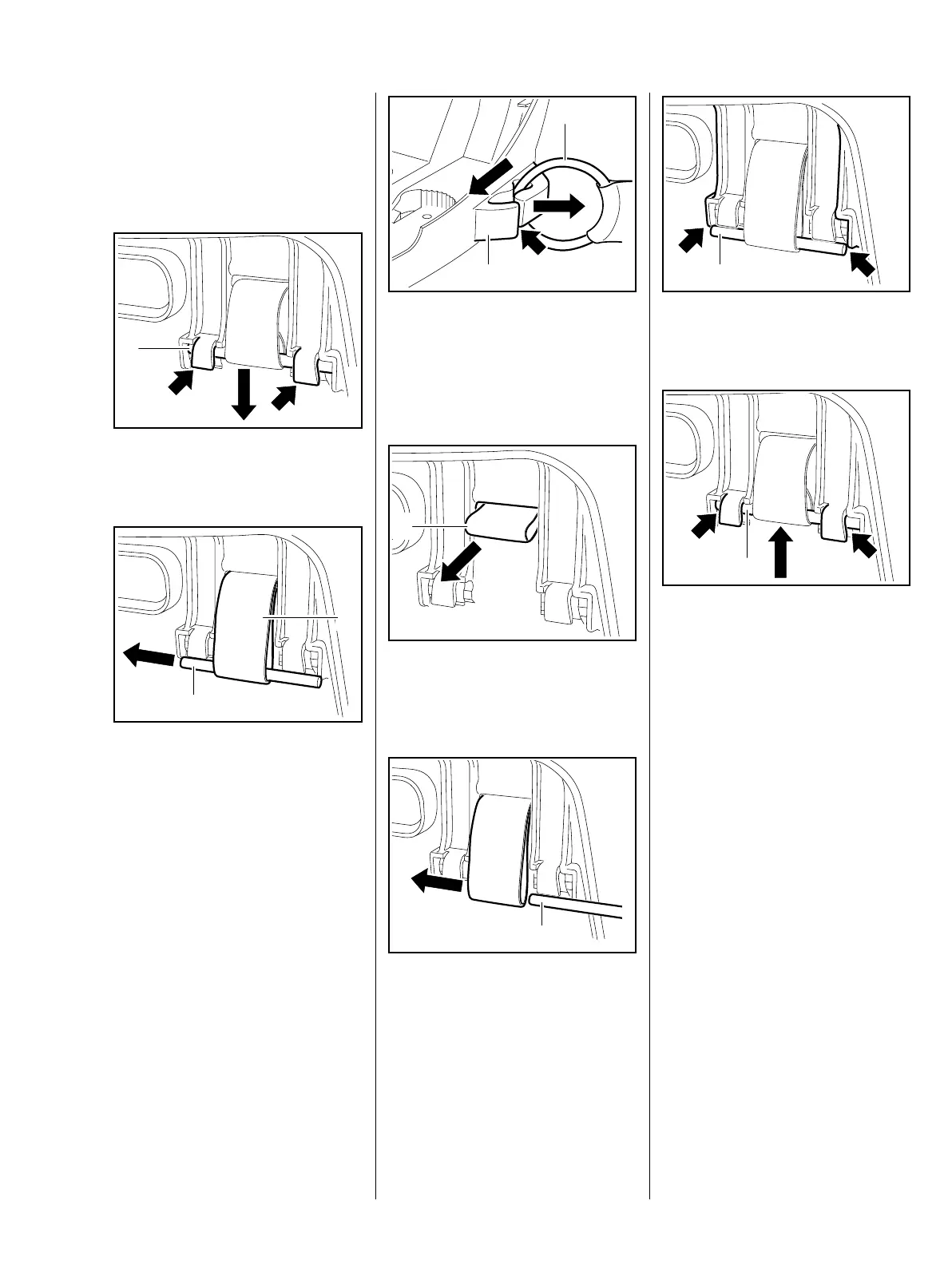

11.3 Harness
For safety reasons the harness
straps must be replaced even if they
suffer only minor damage.
: Pull the pin (1) out of the
retainers (arrows).
: Remove the pin (1).
– Pull out the strap (2).
0002RA447 TG
1
0002RA448 TG
1
2
: Ease the ring (1) out of the
retainer (2) and pull it out of the
opening (arrow).
Installing
: Thread the loop (1) of the
harness strap through the
backplate.
: Fit the pin (1) through the loop.
0002RA449 TG
1
2
0002RA450 TG
1
0002RA451 TG
1
: Center the pin (1) between the
guides (arrows).
: Position the pin (1) behind the
retainers (arrows).
– Push the pin (1) home until it
snaps into place.
0002RA452 TG
1
0002RA453 TG
1

Stihl SR 430 Specifications

General

Product type	Backpack garden sprayer
Product color	Black, Orange, White
Tank capacity	14 L

Weight and Dimensions

Weight	12200 g
