87SR 430, SR 450

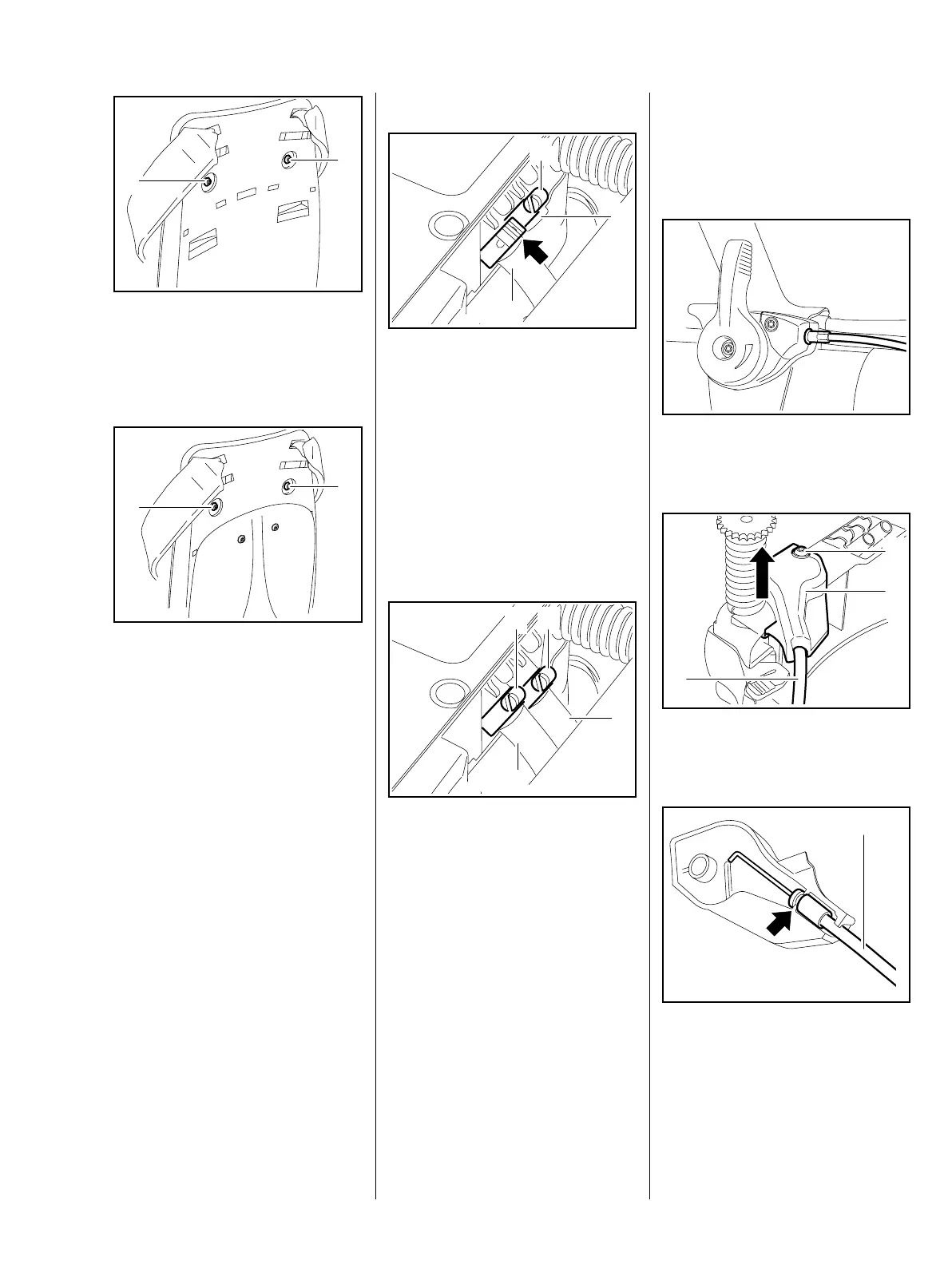

: Fit and tighten down the
screws (1) firmly.
Versions with long back padding
: Fit and tighten down the
screws (1) firmly.
0002RA488 TG
1
1
0002RA322 TG
1
1
Version without pressure pump
– Push on the hose (1) and plug (2)
as far as stop.
: Fit the hose clamp and squeeze
the tabs (arrow) together until
they engage.
: Fit and tighten down the hose
clamp (3).
Version with pressure pump
– Push home the hoses (1) as far
as stop.
: Fit and tighten down the hose
clamps (2).
– Reassemble all other parts in the
reverse sequence.
0002RA327 TG
1
2
3
0002RA328 TG
1
1
22
10.4 Cable, SR 450
– Remove the metering unit,
b 10.3
– Remove the cable from
the metering lever, b 8.5
: Take out the screw (1) and lift the
cover (2).
: Disconnect the cable (1) from the
guide (arrow).
– Remove the cover (2).
0002RA345 TG0002RA346 TG
1
2
3
0002RA347 TG
1

Stihl SR 430 Specifications

General

Product type	Backpack garden sprayer
Product color	Black, Orange, White
Tank capacity	14 L

Weight and Dimensions

Weight	12200 g
