50 SR 430, SR 450

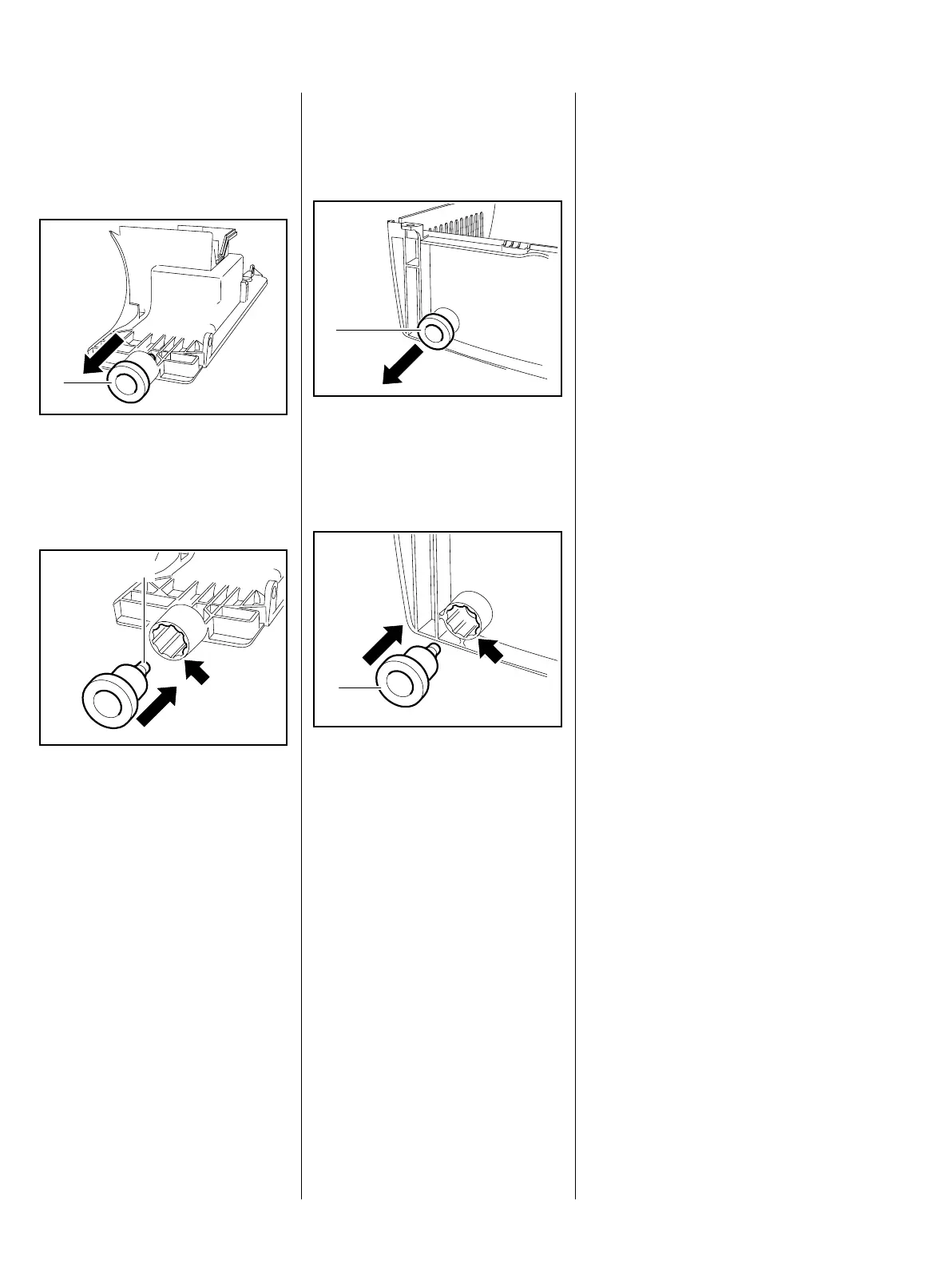

7.4 Stop Buffer on Filter
Housing
– Remove the filter housing, b 9.4
: Pull off and replace the stop
buffer (1).
Installing
– Use STIHL press fluid to simplify
assembly, b 13
: Push the stop buffer (1), tapered
end first, into the bore (arrow) as
far as stop – the tapered end
must slide fully home and engage
the bore.
– Install the filter housing, b 9.4
– Reassemble all other parts in the
reverse sequence.
0002RA139 TG
1
0002RA140 TG
1
7.5 Stop Buffer on Shroud
– Remove the shroud, b 4.4
: Pull off and replace the stop
buffer (1).
Installing
– Use STIHL press fluid to simplify
assembly, b 13
: Push the stop buffer (1), tapered
end first, into the bore (arrow) as
far as stop – the tapered end
must slide fully home and engage
the bore.
– Install the shroud, b 4.4
– Reassemble all other parts in the
reverse sequence.
0002RA141 TG
1
0002RA142 TG
1

Stihl SR 430 Specifications

General

Product type	Backpack garden sprayer
Product color	Black, Orange, White
Tank capacity	14 L

Weight and Dimensions

Weight	12200 g
