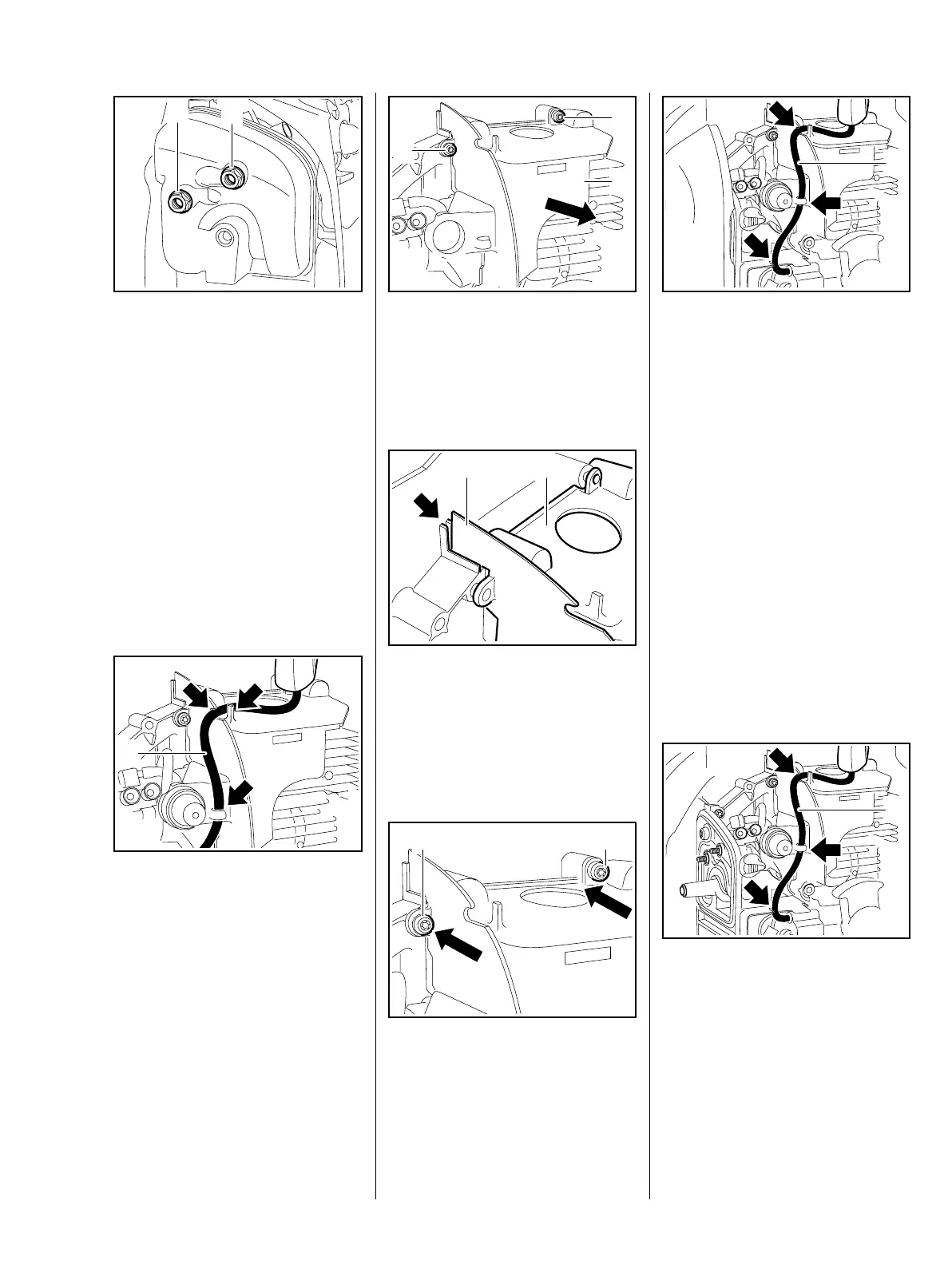

: Fit the nuts (1) and tighten them
down firmly.
– Reassemble all other parts in the
reverse sequence.
9.3 Air Guide Shroud
– Remove the shroud, b 4.4
– Remove the spark plug, b 4.2.1
– Remove the fuel pump,
b 9.10.3
: Pull the ignition lead (1) out of the
guides (arrows).
0002RA427 TG
11
0002RA195 TG
1
: Take out the screws (1).
– Remove the air guide shroud (2).
Installing
– Push the air guide shroud (1) into
position so that it engages the
slot in the spacer flange.
: Engage the end (2) in the
guide (arrow).
: Fit and tighten down the
screws (1) firmly.
0002RA197 TG
1
1
2
0002RA198 TG
2 1
0002RA199 TG
11
: Starting at the ignition module,
attach the ignition lead (1) to the
guides (arrows).
Position the ignition lead so that it is
not kinked at the ignition module
and not under tension.
– Reassemble all other parts in the
reverse sequence.
9.4 Filter Housing
– Remove the baffle, b 9.2
– Remove the fuel tank and put it to
one side – do not disconnect the
fuel hoses from the fuel tank,
b 9.12
: Pull the ignition lead (1) out of the
guides (arrows).
0002RA200 TG
1
0002RA486 TG
1
