67SR 430, SR 450

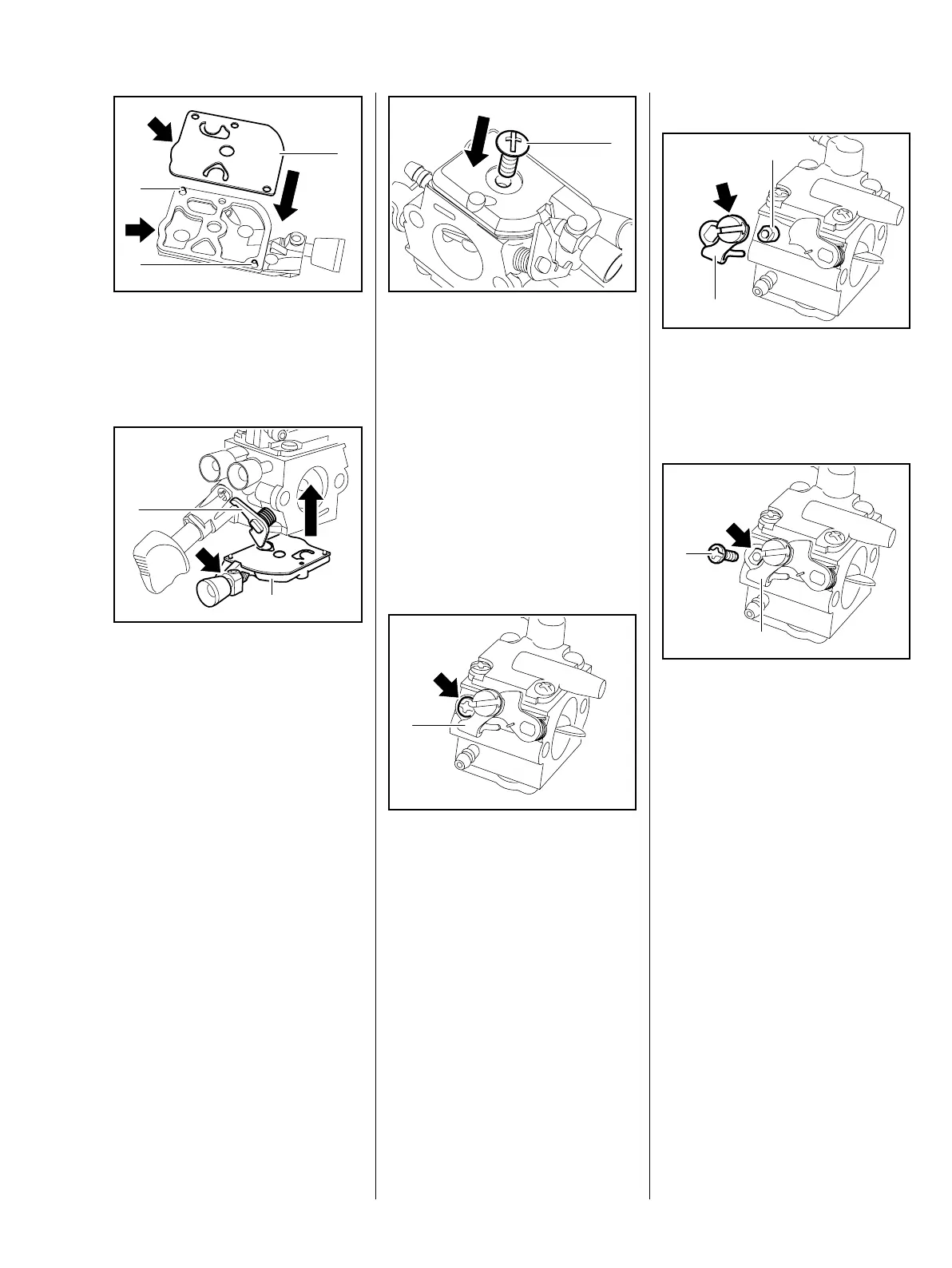

: Fit the diaphragm on the
gasket (1) so that the
contours (arrows) match and it is
held in position by the pegs (2).
– Position the end cover (1) so that
the stop screw (arrow) points in
the direction of the adjusting
screws.
: Turn lever (2) on throttle shaft a
little and place the end cover (1)
against the carburetor body from
below so that the gasket and
pump diaphragm remain in
position on the end cover.
– Move the end cover (1) a little
until its pegs engage the holes in
the carburetor body.
0002RA249 TG
1
2
2
0002RA250 TG
1
2
– Check that diaphragm and
gasket are properly seated.
: Insert and tighten down the
screw (1) firmly.
– Reassemble all other parts in the
reverse sequence.
9.6.5 Throttle Lever
– Remove the carburetor, b 9.5
: Take out the screw (arrow).
– Pull off the throttle lever (1).
0002RA251 TG
1
0002RA252 TG
1
Installing
: Hold the throttle lever (1) so that
the slotted pin (arrow) faces up
and the flat sided hole is in line
with the throttle shaft (2).
– Push the throttle lever (1) onto
the end of the throttle
shaft (arrow).
: Insert and tighten down the
screw (2) firmly.
0002RA253 TG
1
2
0002RA254 TG
2
1

Stihl SR 430 Specifications

General

Product type	Backpack garden sprayer
Product color	Black, Orange, White
Tank capacity	14 L

Weight and Dimensions

Weight	12200 g
