38 SR 430, SR 450

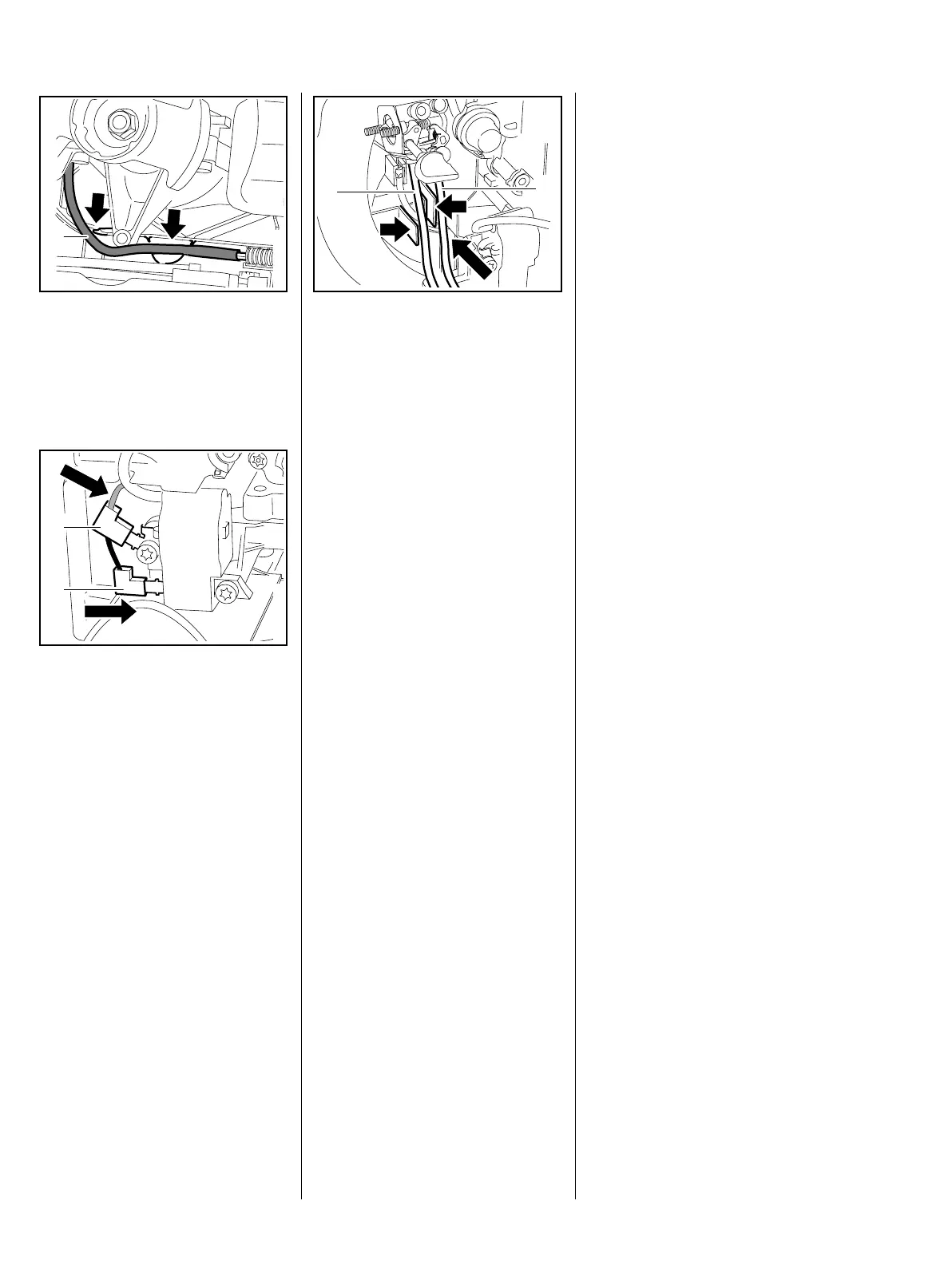

– Position the wiring harness (1)
against the blower housing.
: Push the wiring harness (1) into
the guides (arrows).
: Connect the ground wire (2) and
short circuit wire (1) – make sure
the connectors are pushed fully
home.
0002RA102 TG
1
0002RA033 TG
1
2
: Push the fuel hoses (1) into the
guides (arrows).
– Reassemble all other parts in the
reverse sequence.
5.6.3 Ground Wire
A faulty ground wire may impair or
prevent operation of the short circuit
wire.
The short circuit wire (black),
ground wire (blue) and throttle cable
are in a protective tube and form an
assembly.
If any part is damaged, the entire
throttle cable must be replaced.
– Check for contact and continuity
and replace the throttle cable if
necessary, b 5.6.2
0002RA103 TG
1
1
