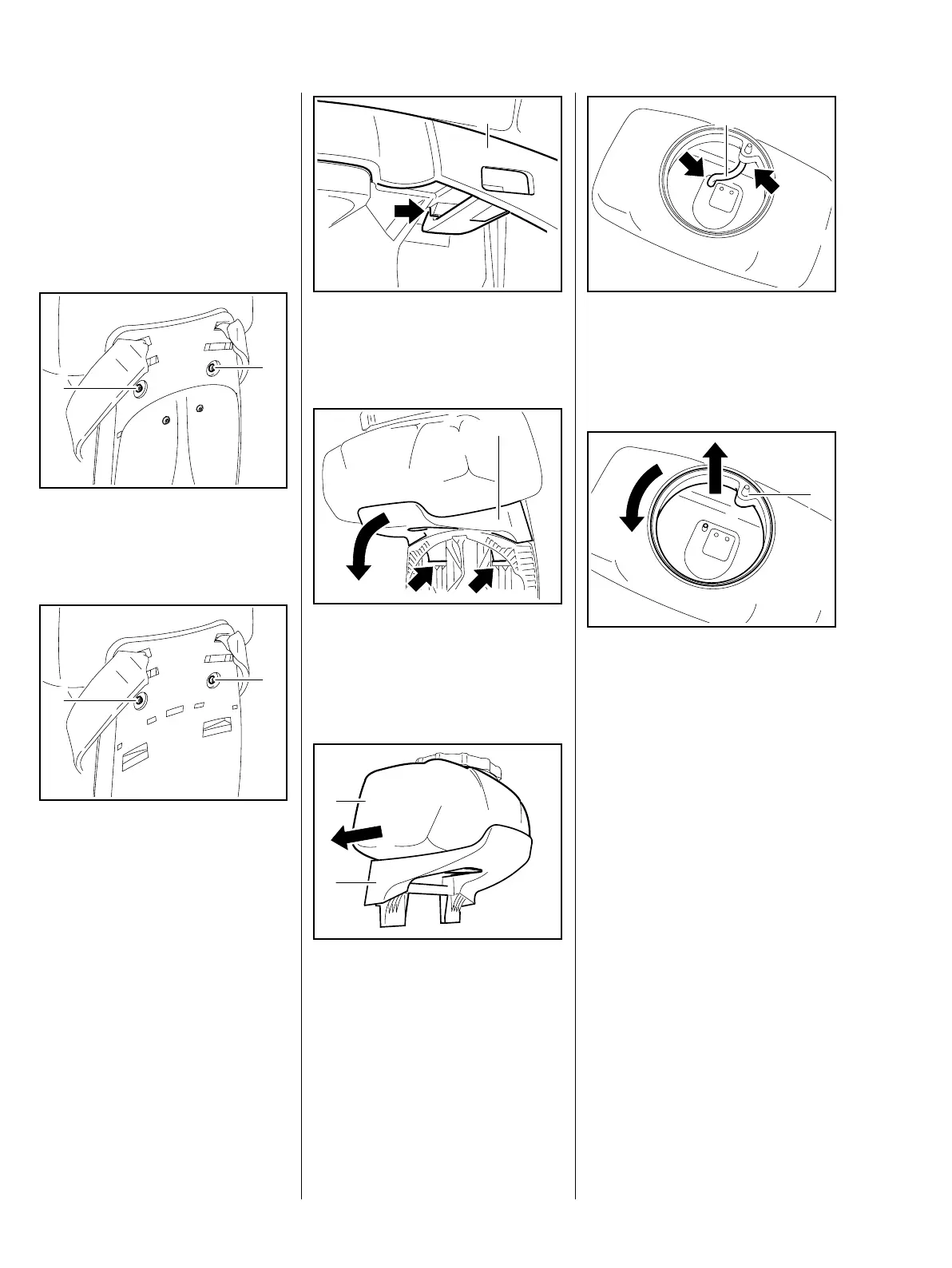

10. Blower and Metering Attachment
10.1 Container, SR 430
– Remove the blower housing,
b 10.7
Drain the container.
Versions with long back padding
: Take out the screws (1).
All versions
: Take out the screws (1).
0002RA489 TG
1
1
0002RA314 TG
1
1
: Disengage the locking
tabs (arrow) on both sides of
protective screen (1).
: Lower the bracket (1).
: Pull the bracket (1) out of the
guides (arrows).
: Take the container (1) out of the
bracket (1).
0002RA475 TG
1
0002RA315 TG
1
0002RA319 TG
1
2
– Unscrew the cap.
: Pull the hose (1) off the
nipples (arrows).
: Rotate the strainer (1) 45°
counterclockwise and lift it out.
0002RA317 TG
1
0002RA318 TG
1
