42 SR 430, SR 450
6. Rewind Starter
6.1 General
If the action of the starter rope
becomes very stiff and the rope
rewinds very slowly or not
completely, it can be assumed that
the starter mechanism is in order
but plugged with dirt. At very low
outside temperatures the lubricating
oil on the rewind spring may thicken
and cause the spring windings to
stick together. This has a
detrimental effect on the function of
the starter mechanism.
In such a case it is sufficient to apply
a few drops of a standard solvent-
based degreasant (containing no
chlorinated or halogenated
hydrocarbons) to the rewind spring.
Always wear safety glasses and
protective gloves when working on
the rewind spring – risk of injury.
Carefully pull out the starter rope
several times and allow it to rewind
until its normal smooth action is
restored.
Before installing, lubricate the
rewind spring and starter post with
STIHL special lubricant.
If clogged with dirt or pitch, the
entire starter mechanism, including
the rewind spring, must be removed
and disassembled. Take particular
care when removing the spring.
– Clean all components, b 13
– Relieve tension of rewind spring,
b 6.4

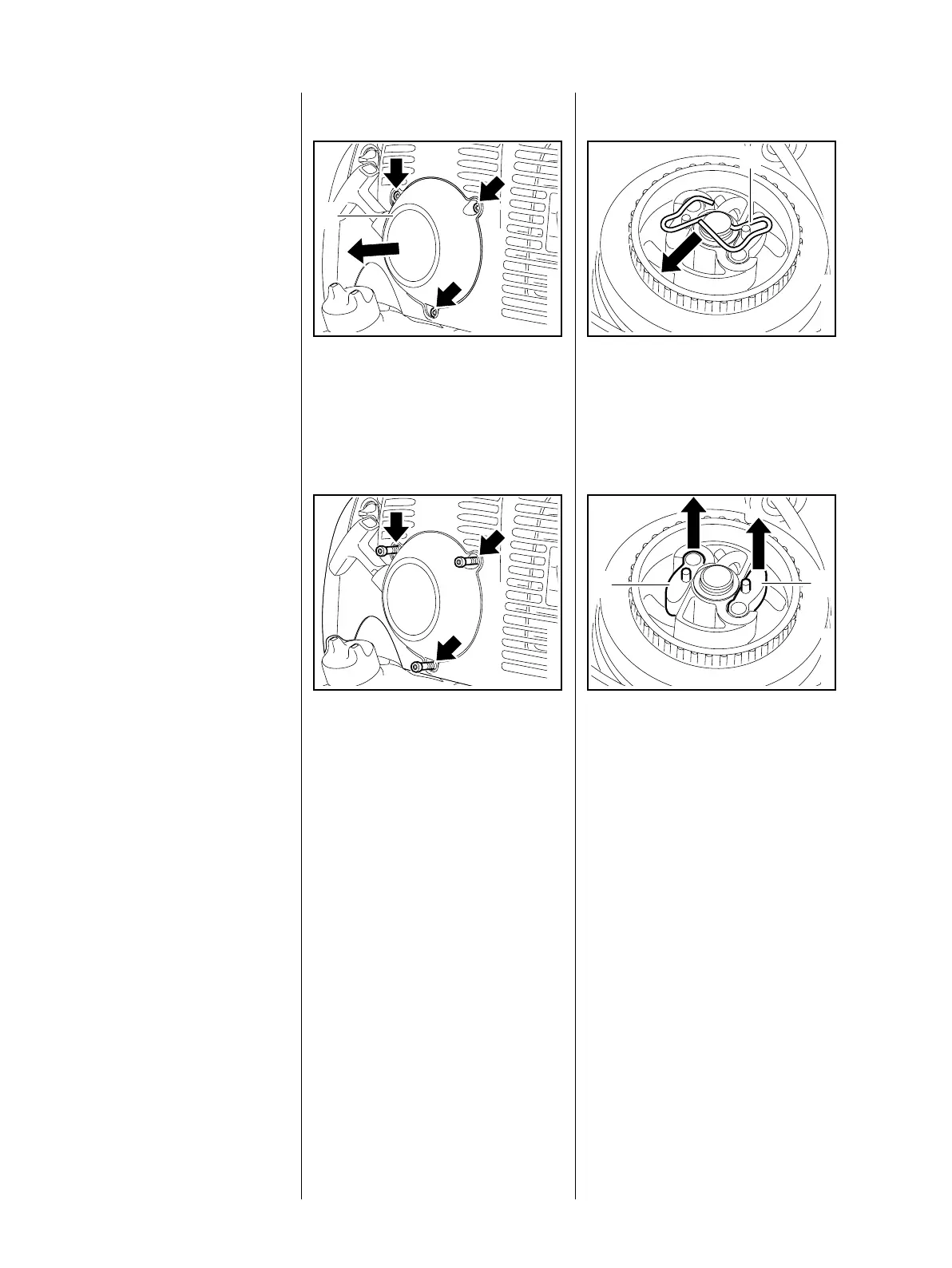

6.2 Starter Cover
: Take out the screws (arrows).
– Remove the cover (1).
Installing
– Place the cover in position.
: Insert the screws (arrows) and
tighten them down firmly.
0002RA105 TG
1
0002RA106 TG
6.3 Pawl
– Remove the starter cover, b 6.2
: Carefully ease the straight end of
the spring clip (1) off the starter
post.
: Remove the pawls (1).
0002RA107 TG
1
0002RA108 TG
1
1
