Sungrow Logger1000 User Manual

14
5 Mechanical Installation
5.1 Unpacking and Inspection
Check the scope of delivery for completeness according to the packing list. The
following items should be included.
A
B
D
G
C
E
F
H
I
J

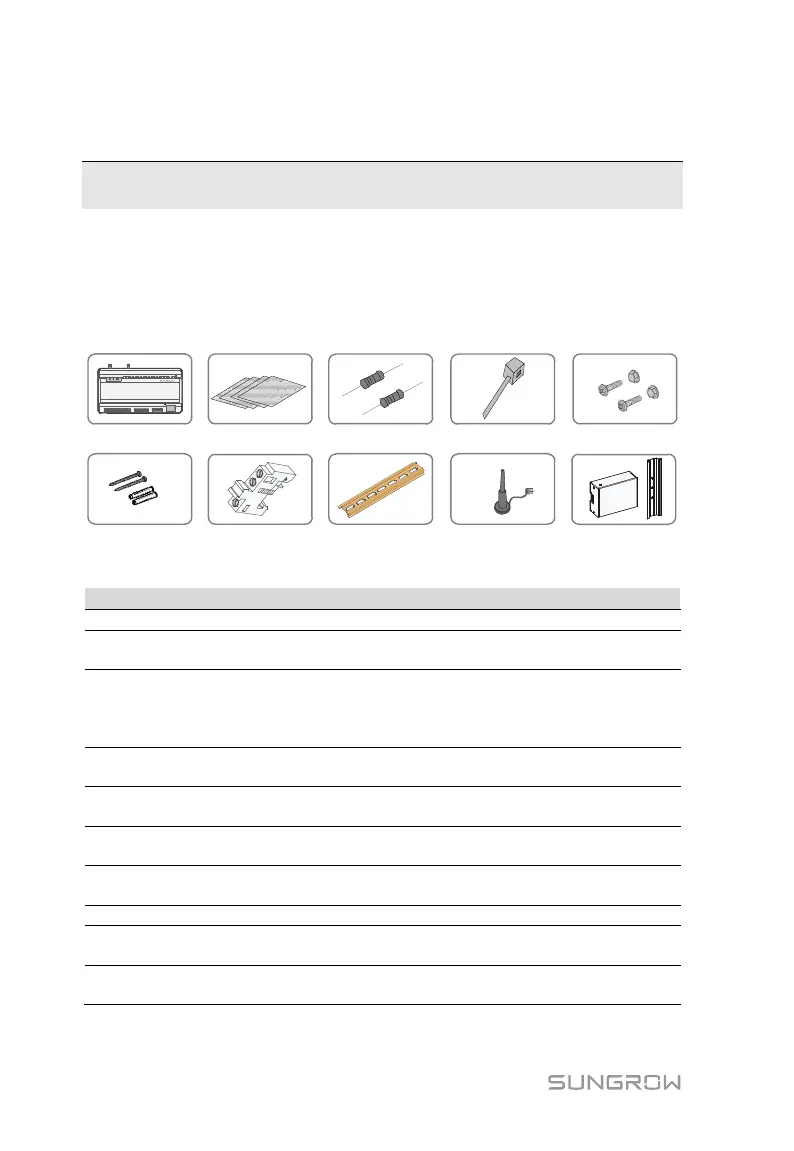

Fig. 5-1 Scope of delivery
Item
Designation
Description
A
Logger1000
Logger1000
B Documents
Quick User Manual, quality certificate, packing list, product
test report, and warranty card
C
Communicatio
n terminal
resistor
6x120Ω (Note: if there are more than 15 devices
connected on the RS485 bus, it is recommended to
connect a 120Ω terminal resistor in parallel on the A and B
lines at the head or tail end of the bus)
D
Nylon cable
tie
Used to tie cables
E
Fastener
assembly
4 sets, M4X16, used for wall-mounting to fasten the device
on the metal surface
F
Expansion
bolt
4 sets, ST4.8X19, used for wall-mounting to fasten the
device on the concrete wall
G
Terminal
fastener
2 sets, E/UK-1201442, fixed on the guide rail to prevent
the Logger1000 from moving
H
Guide rail
Length: 240mm
I
WLAN
antenna
-
J Power box
Converters the AC current into DC current
Length of supporting guide rail: 170mm
