6 Electrical Connection User Manual
26

The address of each device on the RS485 bus should be within the set address
range (1 to 246) of the Logger1000 without repetition. Otherwise,
communication failure occurs.

Serial port parameters of each device on the RS485 bus should be consistent
with those of the Logger1000. The serial port parameters include baud rate, data
bit, stop bit, and check bit.
6.3.2 Connection to Energy Meter
It is recommended to use the energy meter whose communication protocol
complies with DL/T645-2007 protocol or Modbus RTU protocol. The recommended
energy meter types are as follows:
No.
Manufacture
Type
1
Sfere
PD194E/Z
2
Acrel
PZ96-E3
3
Acrel
DTSD1352
4
Janitza
UMG604

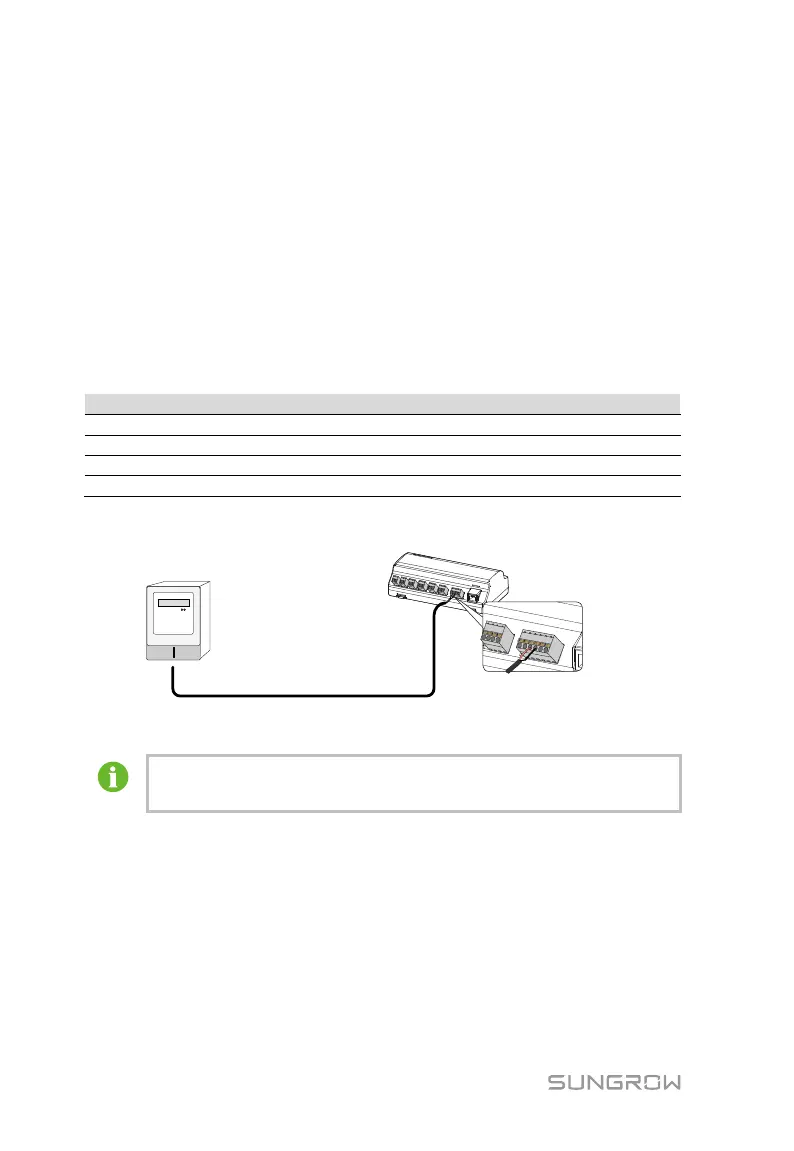

The following figure shows the connection between the Logger1000 and the energy
meter.
Logger1000
Energy meter
Connect the communication cable led from the energy meter to the RS485 port of
the Logger1000.
All devices on each RS485 bus support the same communication
protocol.
6.3.3 Connection to Meteo Station
The following figure shows the connection between the Logger1000 and the Meteo
Station.
