User Manual 5 Mechanical Installation
19

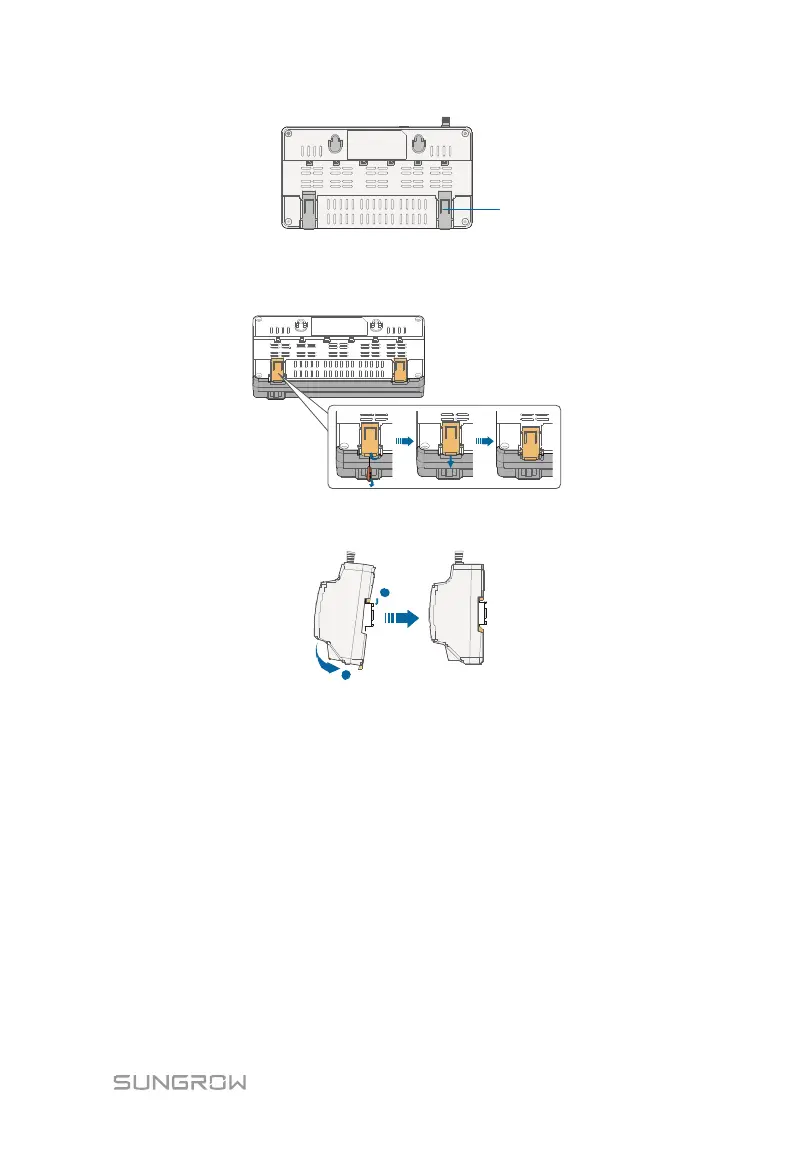

Buckle
Step 1 Install and secure the guide rail at the appropriate location.
Step 2 Slight press down the recessed part under the buckle of Logger1000 with a
flat-head screwdriver or other similar tools to pull out the buckle outwards.
Step 3 Tilt the power box and hook the buckle into the guide rail. Press down the
power box until it snaps into place.
1
2
Step 4 Push the buckle of the Logger1000 upwards to clamp the guide rail.
Step 5 Secure the terminal fasteners on both ends of the guide rail, to prevent the
Logger1000 from moving.
Check and ensure that the Logger1000 is firmly installed.
5.5 Installing Antenna
The sucker antenna base should be placed on a metal surface outside the container
to avoid impact on signal reception.
Antenna entry should be reserved on the container, and the entry hole size is 20mm.
Secure the sucker antenna base onto the surface outside the container, lead one
end (with the nut) of the antenna through the drilled hole, and fix it onto the
corresponding terminal of the Logger1000 clockwise.
