4 Mechanical Mounting User Manual
32

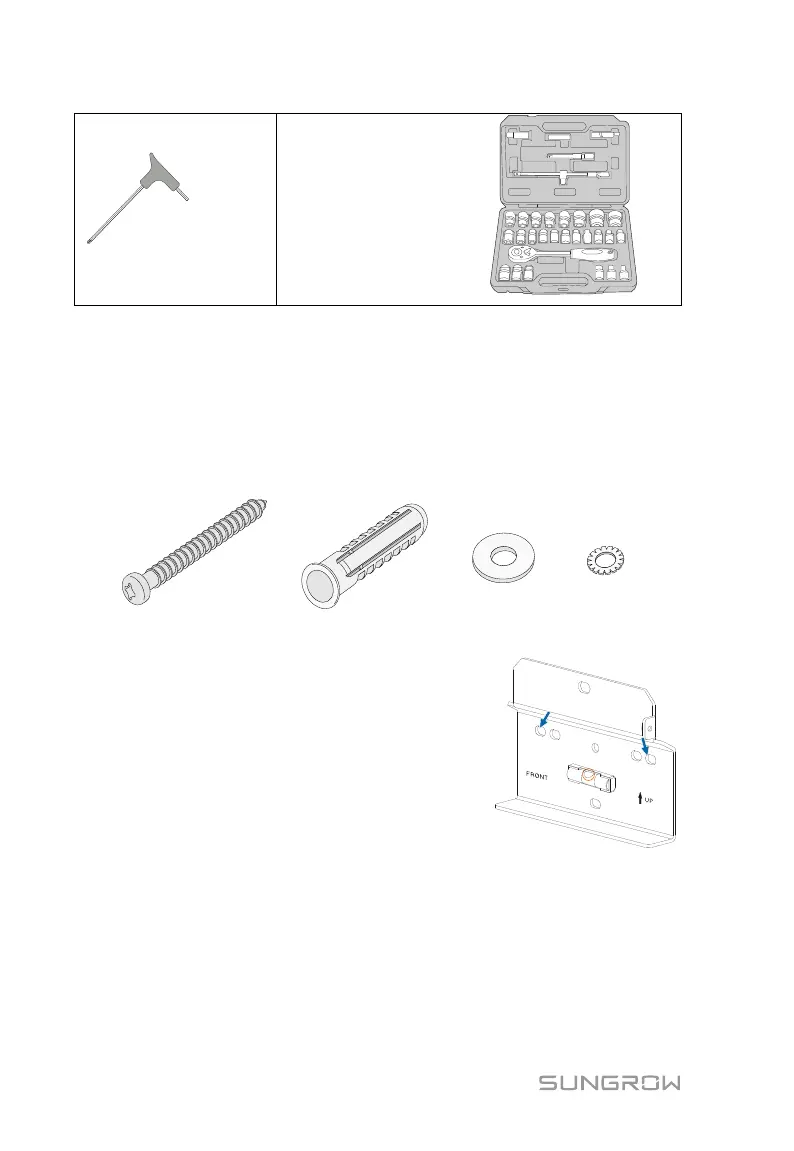

Socket wrench
Open end: 10mm (for M6
bolts)
13mm (for M8 bolts)
16mm (for M10 bolts)
4.4 Installing the Inverter
Inverter is installed on the wall by means of wall-mounting bracket and the
expansion plug sets.
The expansion plug set shown below is recommended for the installation. They
are not included in the delivery scope.
Self-tapping screw M6 Spring washerFender washerExpansion tube
1. Align the wall mounting bracket horizontally
on the wall with the arrow upwards. Mark
the position of the drill holes. Use at least
one hole on the right- and left-hand side of
the wall mounting bracket.
Tip:
The air bubble in the bracket must be between the two lines in the red
circles to ensure the horizontal level.
When mounting on a post, use the upper and lower central holes of the
wall mounting bracket.
2. Drill holes and install the wall-mounting bracket. The depth of the holes
should be about 70 mm.
