5.2 Terminal Description

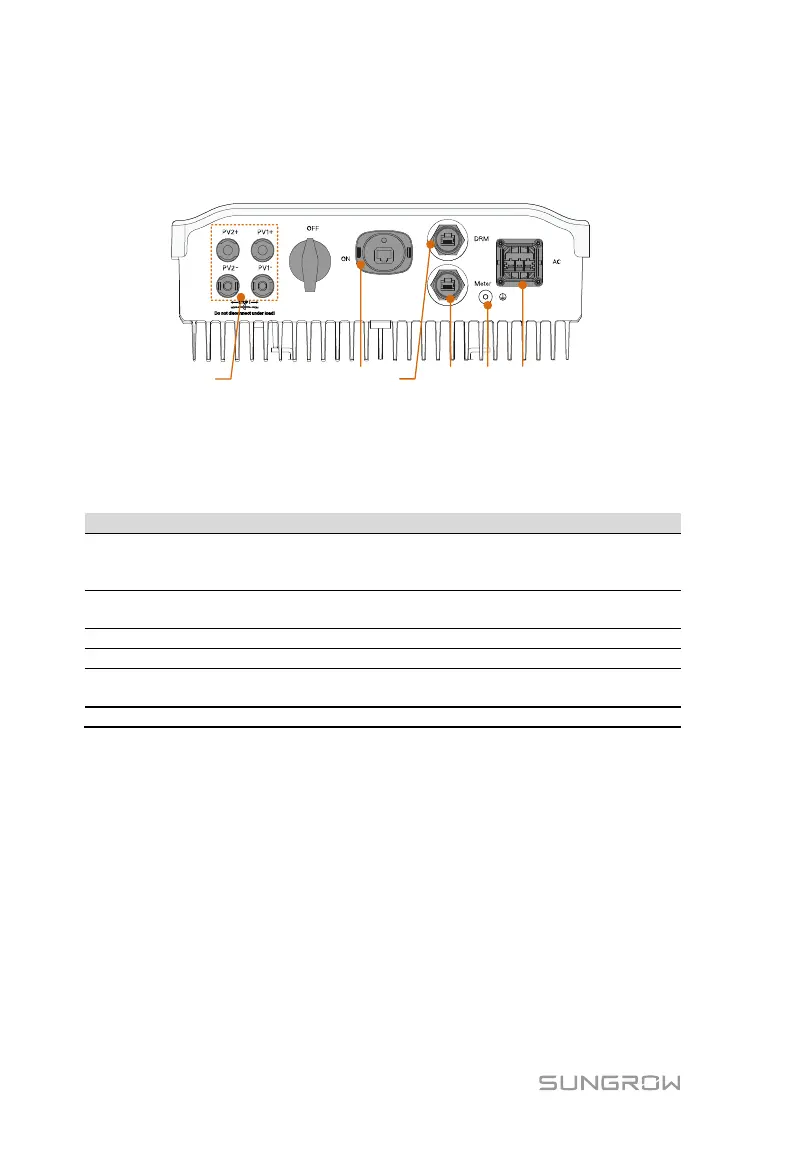

All electrical terminals are located at the bottom of the inverter.
1
2
6
3 4
5
Com.
Fig. 5-1 Terminal Description
* Image shown here is for reference only. The actual product you receive may
differ.
Tab. 5-1 Terminal Descriptions
Item
Terminal
Description
1
PV terminals
MC4 terminals for PV inputs.
-S series: one pair of PV terminals.
-D series: two pairs of PV terminals.
2
Com. terminal
Can be connected to Wi-Fi or E-Net
communication module.
3
DRM terminal
Reserved.
4
Meter terminal
For the Energy Meter
5
Additional
grounding terminal
For reliable grounding.
6
AC terminal
For connection to the utility grid.
