User Manual 2 Product Introduction
9
2.2.2 Dimensions of Inverter

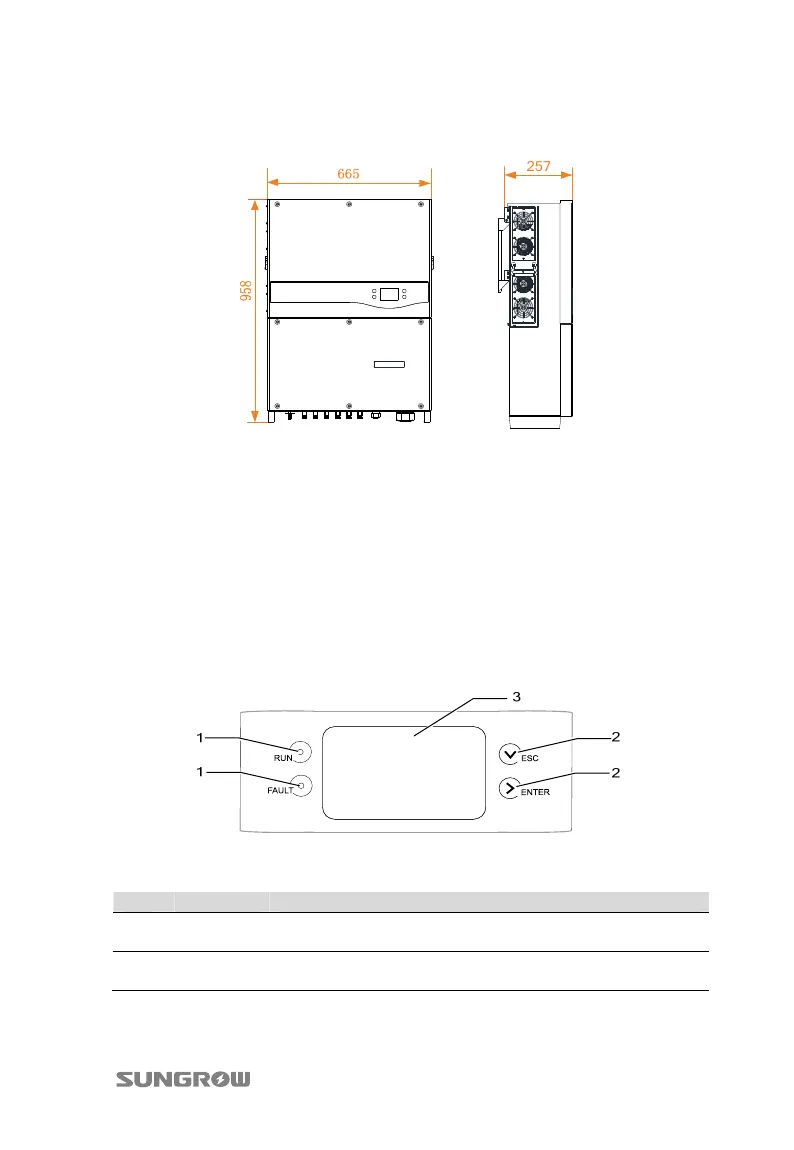

Fig. 2-3 Outline Dimensions of Inverter (unit: mm)
2.2.3 LCD Display Panel
As a human-computer interaction interface, LCD display panel comprises LED
indicators, buttons and LCD display screen on the front panel of the inverter.
LEDs indicate the working status of the inverter
The current running information shown on the LCD display
Fault records shown on the LCD display
Inverter configuration by pressing the buttons
Fig. 2-4 LCD Display Panel
Tab. 2-1 LCD Display Panel Description
No. Name Description
1
LED
indicators
“RUN” and “FAULT”. Inverter current state can be known from
the two indicators. Detailed definition is shown in Tab. 2-2.
2 Buttons
Navigate in the LCD menu, set values and so on. Detailed
function is shown in “Tab. 10-1”.
To Next Page
