User Manual 5 Installing Inverter onto Wall
25

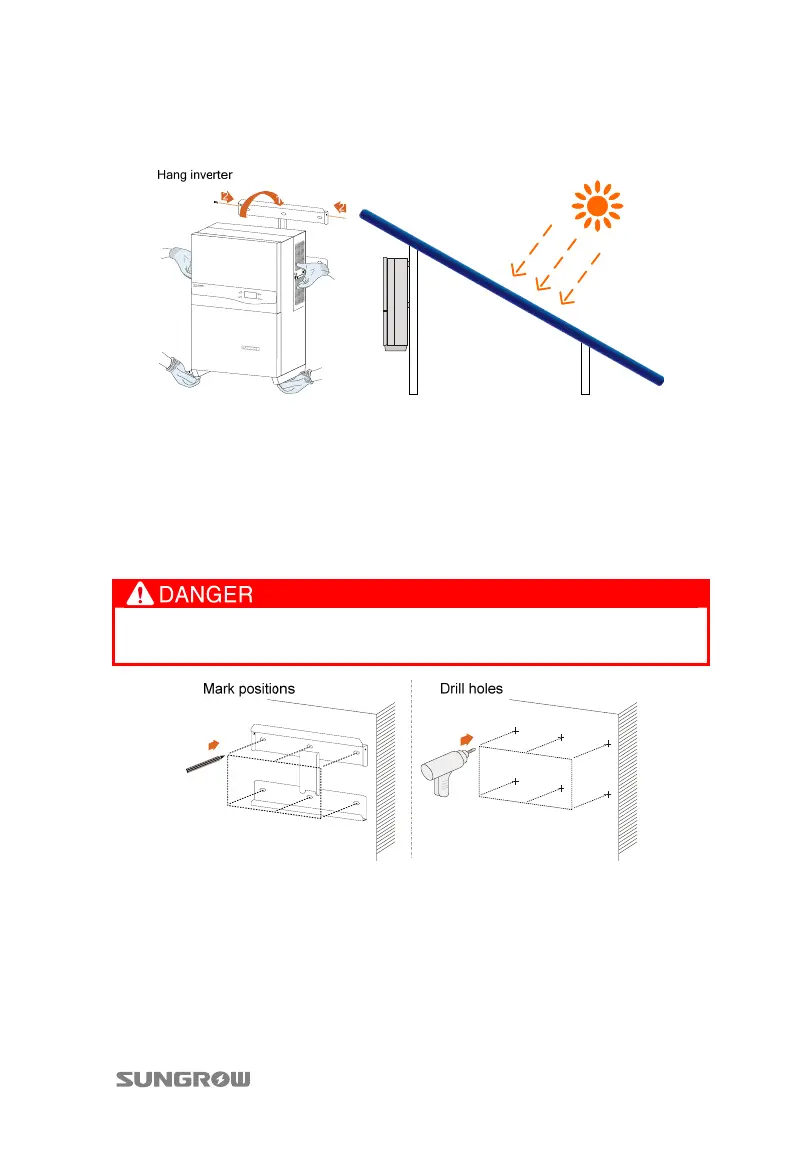

Step 7
After fit the inverter to the backplate, fasten the inverter to the backplate
with two M4×16 screws.
5.3.2 Installing on Concrete Wall
Step 1 Remove backplate and fasteners from the packaging.
Step 2 Place the backplate onto the chosen concrete wall and adjust it until it is in a
horizontal position.
Step 3 Mark the positions to drill holes using the backplate as the template.
Step 4 Drill holes according to the marks made before.
In order to avoid electrical shock or other injury, inspect existing electronic
or plumbing installations before drilling holes.
Step 5 Attach the backplate to the wall firmly with the supplied expansion bolt set.
The torque for fastening the nut is 35 Nm.
