User Manual 5 Installing Inverter onto Wall
23
Always remember the weight of the inverters.
Grasp the equipment handles by both hands by means of handles.
Move the unit with the help of others or the lifting device.
Do not release the equipment unless it has been secured to the wall firmly.
5.3 Installing the Inverter
Inverter is installed onto the wall by means of backplate enclosed in the packaging.
If you don’t use the supplied backplate, you may drill holes refer to its dimension
below.

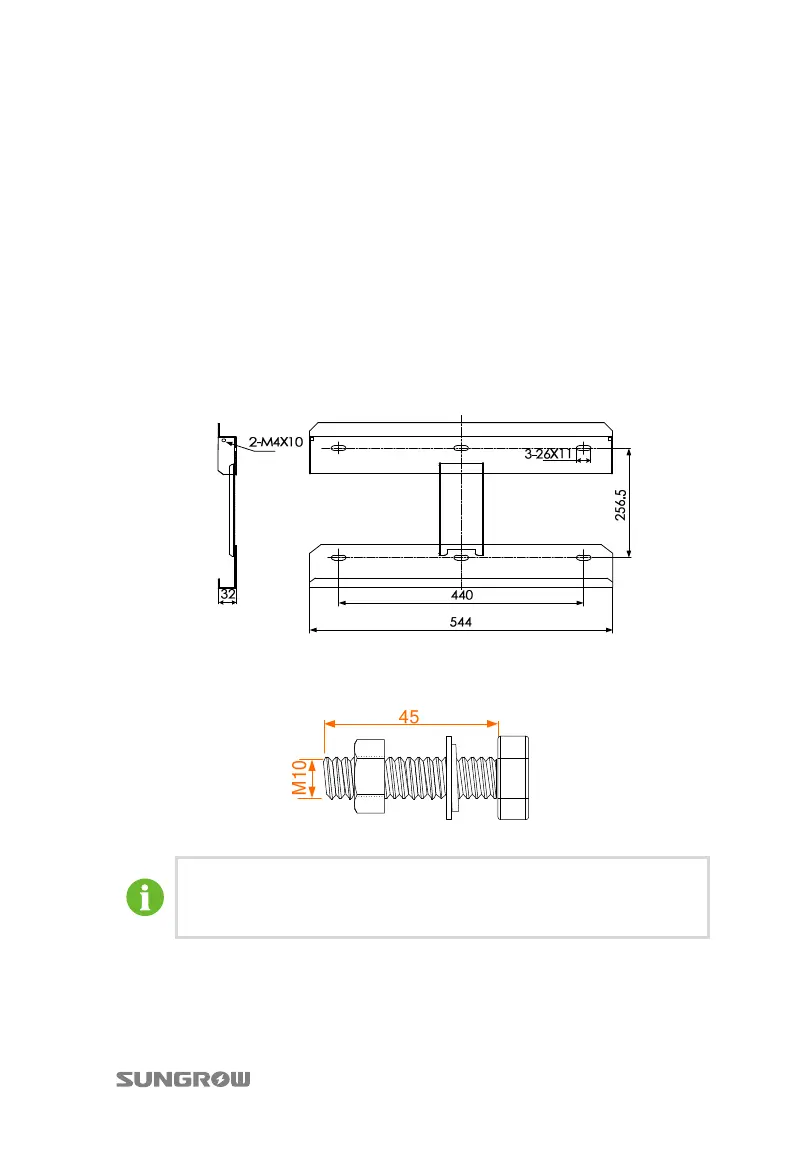

Fig. 5-1 Dimensions of Backplate(unit: mm)
The stainless fasteners are supplied for attaching the backplate to metal frame.
Fig. 5-2 Dimensions of Fastener Set for Metal Frame(unit: mm)
To install the inverter to concrete walls, user needs to purchase
expansion bolts with proper size (recommended: M10*65) to fix the
backplate to the concrete walls.
5.3.1 Installing on Metal Frame
Step 1 Remove backplate and fasteners from the packaging.
