6 Electrical Connection User Manual
42

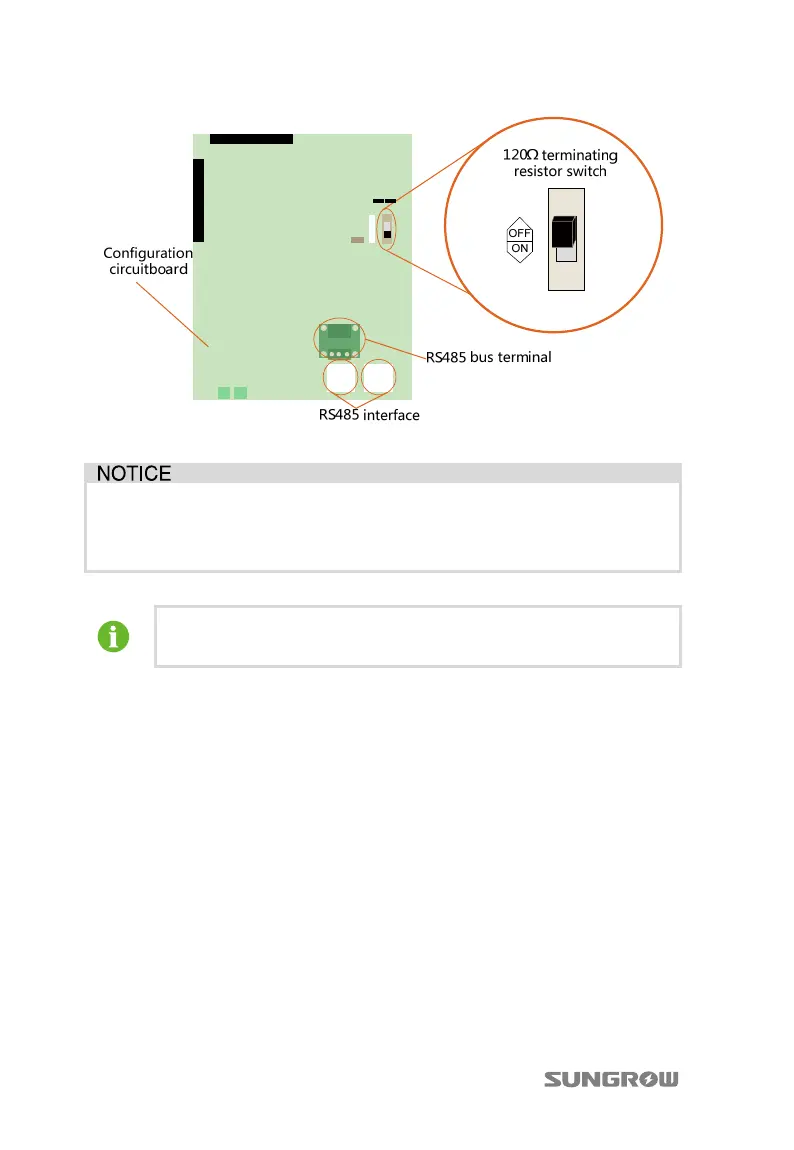

Before communication connection, prepare communication cable and RJ45 plug.
RS485 cable’s requirements to ensure quality of communication:
RS485 shielded twisted pair cables
Shielded network cable
A converter such as RS485-232 converter or SolarInfo Logger, which
converts 485 to 232 signal, is needed between inverter and PC.
6.5.2 Communication System
For Single Inverter
Where there is only one inverter, a RS485 cable enables connection between
inverter and data logging device.
