Sungrow SG50KTL-M-20 User Manual

User Manual 10 Operation of LCD Display
81

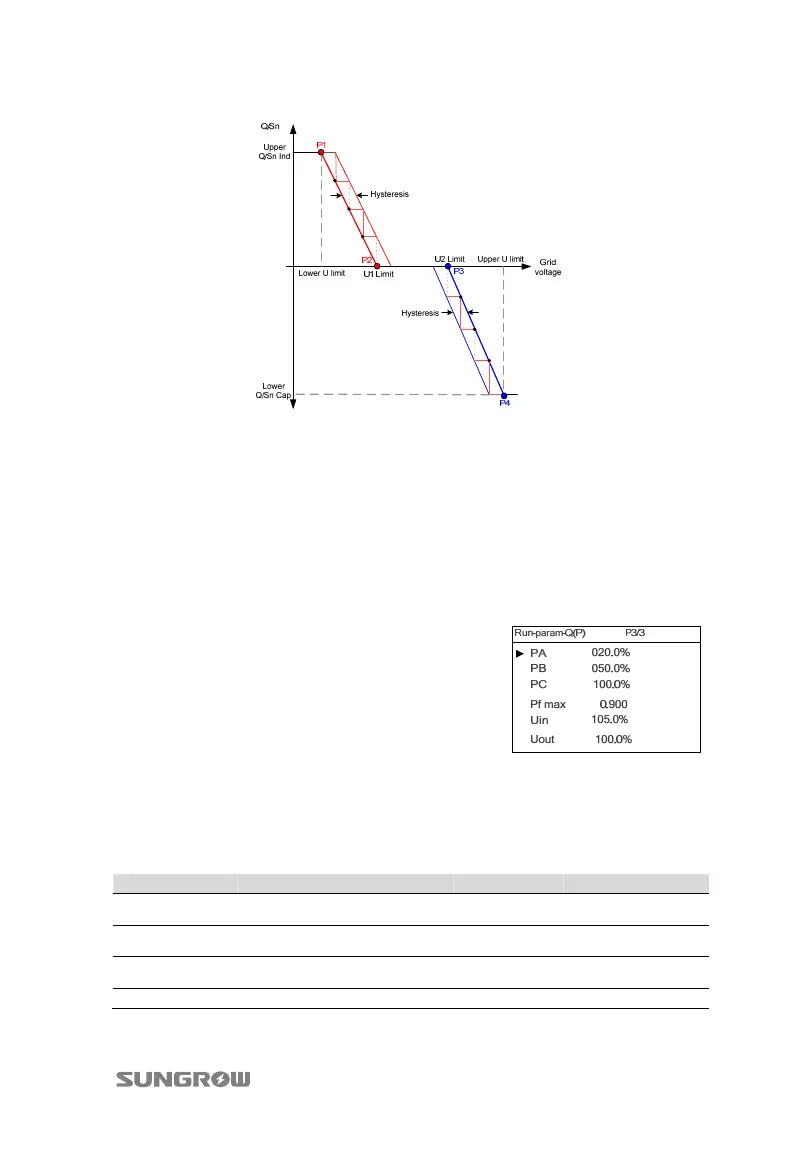

Fig. 10-4 Reactive Power Regulation Curve in Q(U) Mode
10.10.4 Reactive Power Setting for Italy
If the “Countries” selected is “IT” (Italy), several LCD menus and operation methods
are different from other countries.
The differences focus on “Run-param” as shown below.
Italy “Q(P)” Mode
Power factor changes with the output power of
the inverter.
Select Q(P) mode and Press  to enter into the
“Run-para-Q(P)” sub-menu.
Press  to move the cursor; Press  to enter the
editing mode, then the selected parameter will be
shaded.
Press  to increase one-step value; Press  to
decrease one-step value.
Press ENTER to confirm the setting and exit from
the editing mode.
Tab. 10-8 Italy “Q(P)” Mode Parameters Explanation
Parameter Explanation Default Range Step
PA*
Active power at point A (in %)
20% 20~100% 1%
PB*
Active power at point B (in %)
50% 20~100% 1%
PC*
Active power at point C (in %)
100% 20~100% 1%
Pf max Power factor at point C 0.9 0.9~1 0.01
