10 Operation of LCD Display User Manual
76
10.10 Running Parameter Setting

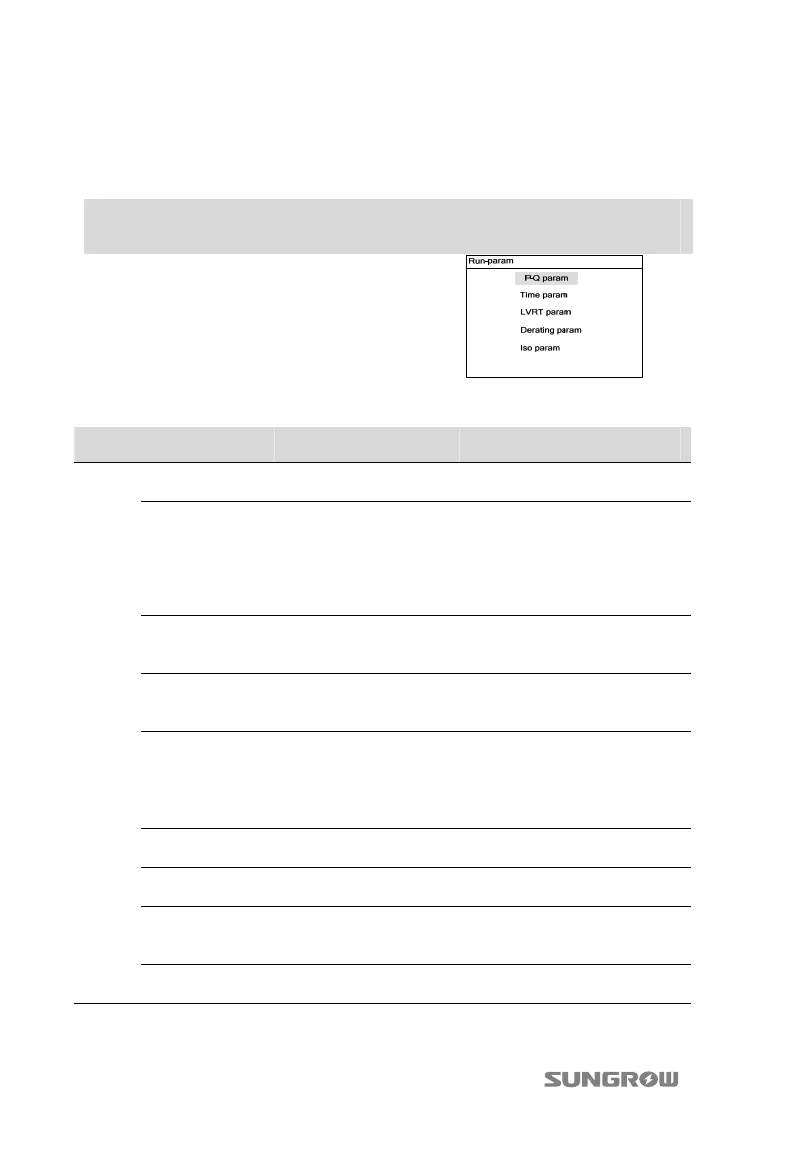

10.10.1 Main Screen of Run-param
Main Screen (Press ENTER)→Menu (Press ×3)→Set-param (Press ENTER)→Enter
password (Press ENTER, Press )→Run-param (Press ENTER)
On the “Run-param” screen, press to select one
item and press ENTER to enter the setting interface.
For each item, Press to move the cursor and
Press to set the appropriate value.
Confirm settings by Pressing ENTER.
Tab. 10-4 Description of Running Parameters
Parameter Description Default Range
P-Q
param
P-W limits
Inverter active power
limitation
100.0% 0~100%
Rate limit
Set the active power
change rate. When it is
set to [ON], user can set
the raise and decline
rate.
[OFF]
[OFF]/ [ON]
Power raise
When Rate limit is ON,
set the active power rise
rate.
100%/min 8~100%/min
Power Decline
When Rate limit is ON,
set the active power
decline rate.
6000%/min
8~6000%/mi
n
Fault slowup
Set the power rise rate
when a fault is removed.
When it is ON, the active
power raise rate can be
set.
[ON] [OFF]/ [ON]
Slowup rate
Set the active power
raise rate.
100%/min 8~100%/min
Save P-W
Setting
Whether to save the
active power setting
[OFF] [OFF]/ [ON]
Save Q-Var
setting
Whether to save the
reactive power setting
[ON]
[Pt]/[Qt]/
[Off] / [Q(P)]
/ [Q(U)]
Q-Var witch
Set the reactive power
regulation function
[OFF] [OFF]/ [ON]
To Next Page
