Suzuki drz 400E Service Manual

COOLING SYSTEM 5-3

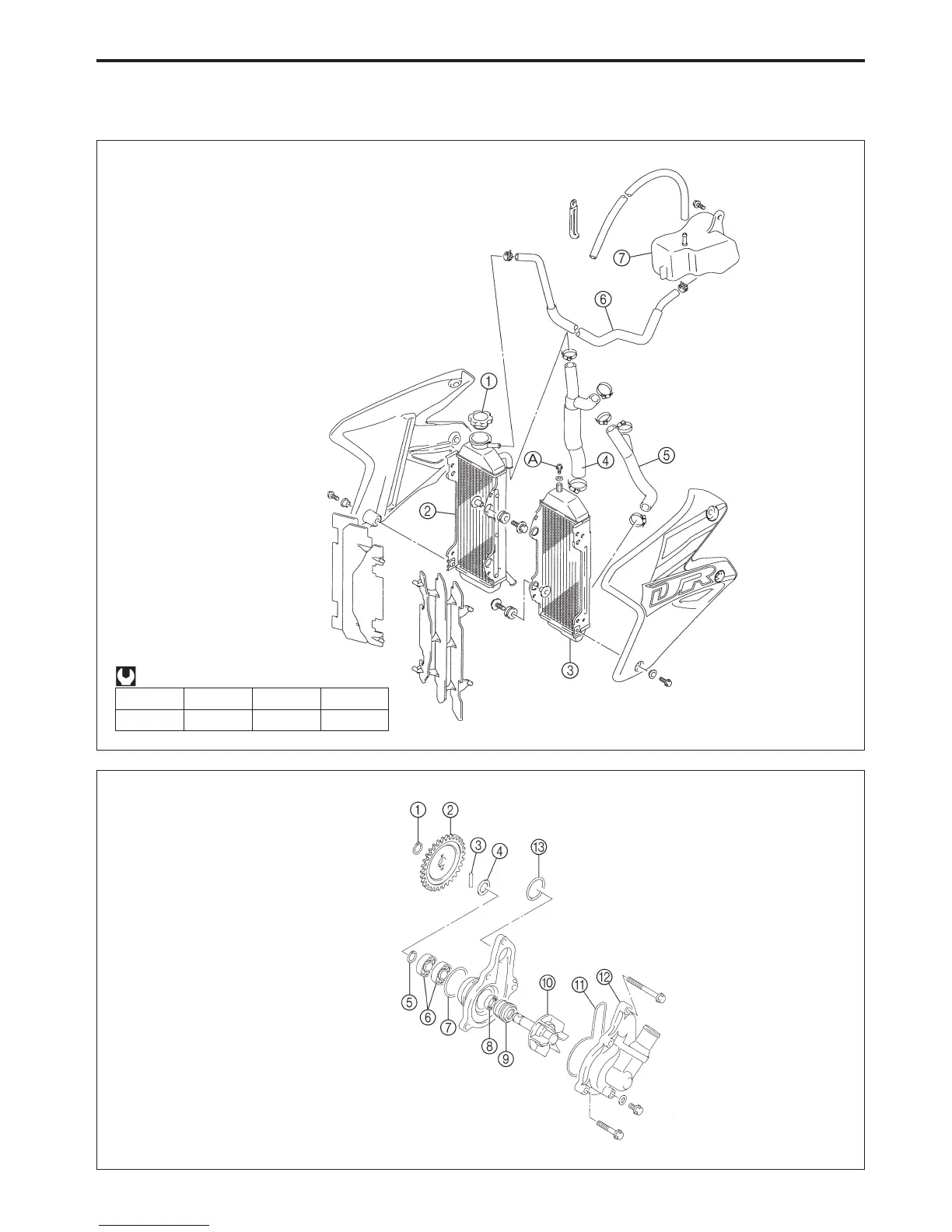

CONSTRUCTION
1 Radiator cap
2 Radiator (R)
3 Radiator (L)
4 Radiator inlet hose
5 Radiator outlet hose
6 Overflow hose
7 Overflow tank
A Air bleeder bolt
1 Circlip
2 Water pump driven gear
3 Pin
4 Washer
5 Circlip
6 Bearing
7 O-ring
8 Oil seal
9 Mechanical seal
0 Impeller
A O-ring
B Water pump cover
C O-ring
ITEM N·m kgf-m lb-ft
A 6.0 0.6 4.3

Suzuki drz 400E Specifications

General

Displacement	398 cc
Compression Ratio	12.2:1
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Rear Tire	110/100-18
Engine Type	4-stroke, DOHC
Bore x Stroke	90.0 mm x 62.6 mm
Fuel System	Mikuni BSR36 carburetor
Front Brakes	Disc
Rear Brakes	Disc
Fuel Tank Capacity	10.0 L (2.6 US gallons)
Overall Width	825mm (32.5 inches)
Ground Clearance	315 mm (12.4 in)
Seat Height	935 mm (36.8 in.)
Curb Weight	138 kg (304 lbs)
Dry Weight	119 kg (262 lbs.)
