ENGINE
3-39
TRANSMISSION
DISASSEMBL
Y

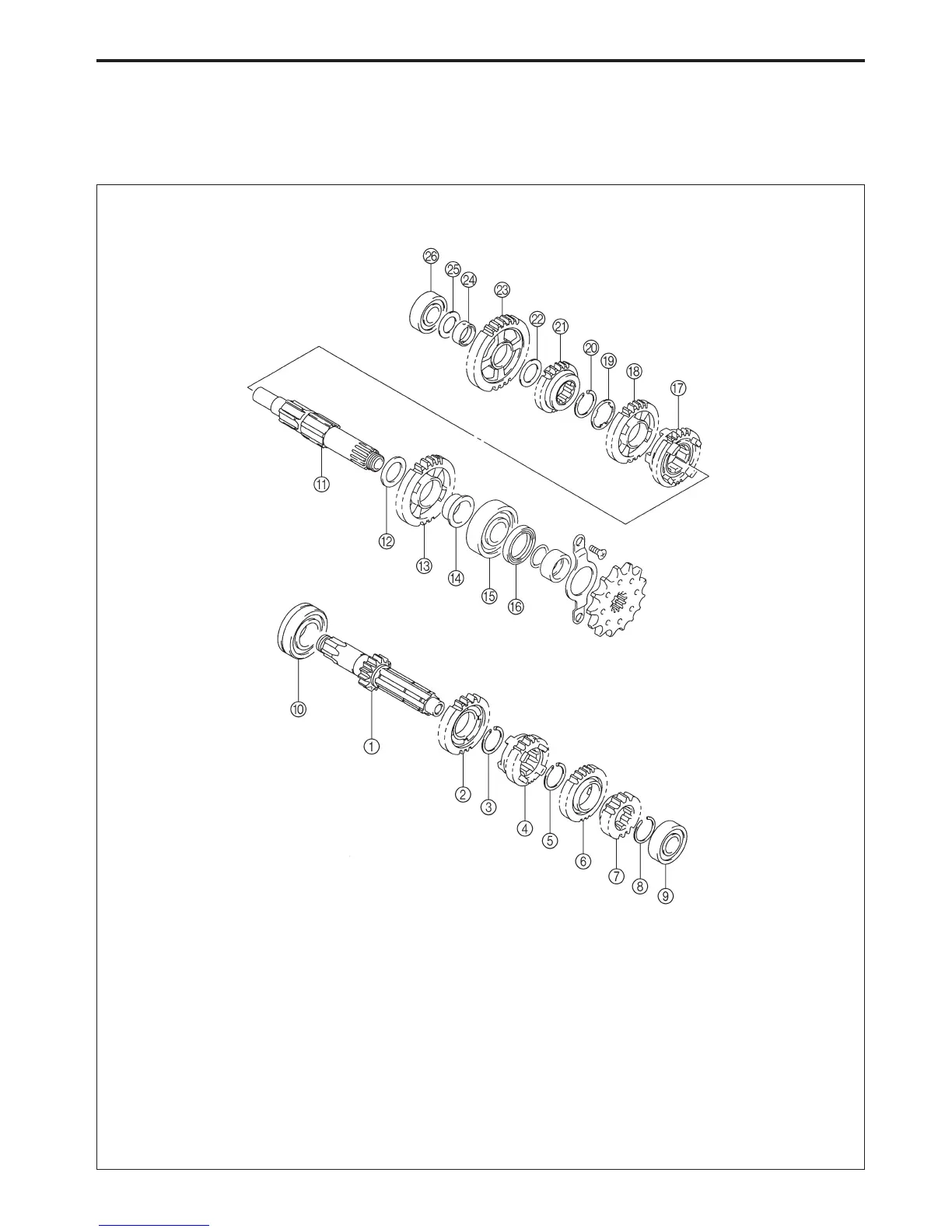

Disassemble the transmission gears as shown.
1
Countershaft
2
5th (top) drive gear
3
Circlip
4
3rd drive gear
5
Circlip
6
4th drive gear
7
2nd drive gear
8
Circlip
9
Bearing
0
Bearing
A
Driveshaft
B
Washer
C
2nd driven gear
D
Spacer
E
Bearing
F
Oil seal
G
4th driven gear
H
3rd driven gear
I
Washer
J
Circlip
K
5th (top) driven gear
L
Washer
M
1st (low) driven gear
N
Spacer
O
Washer
P
Bearing
80
