Suzuki drz 400E Service Manual

ELECTRICAL SYSTEM 7-29

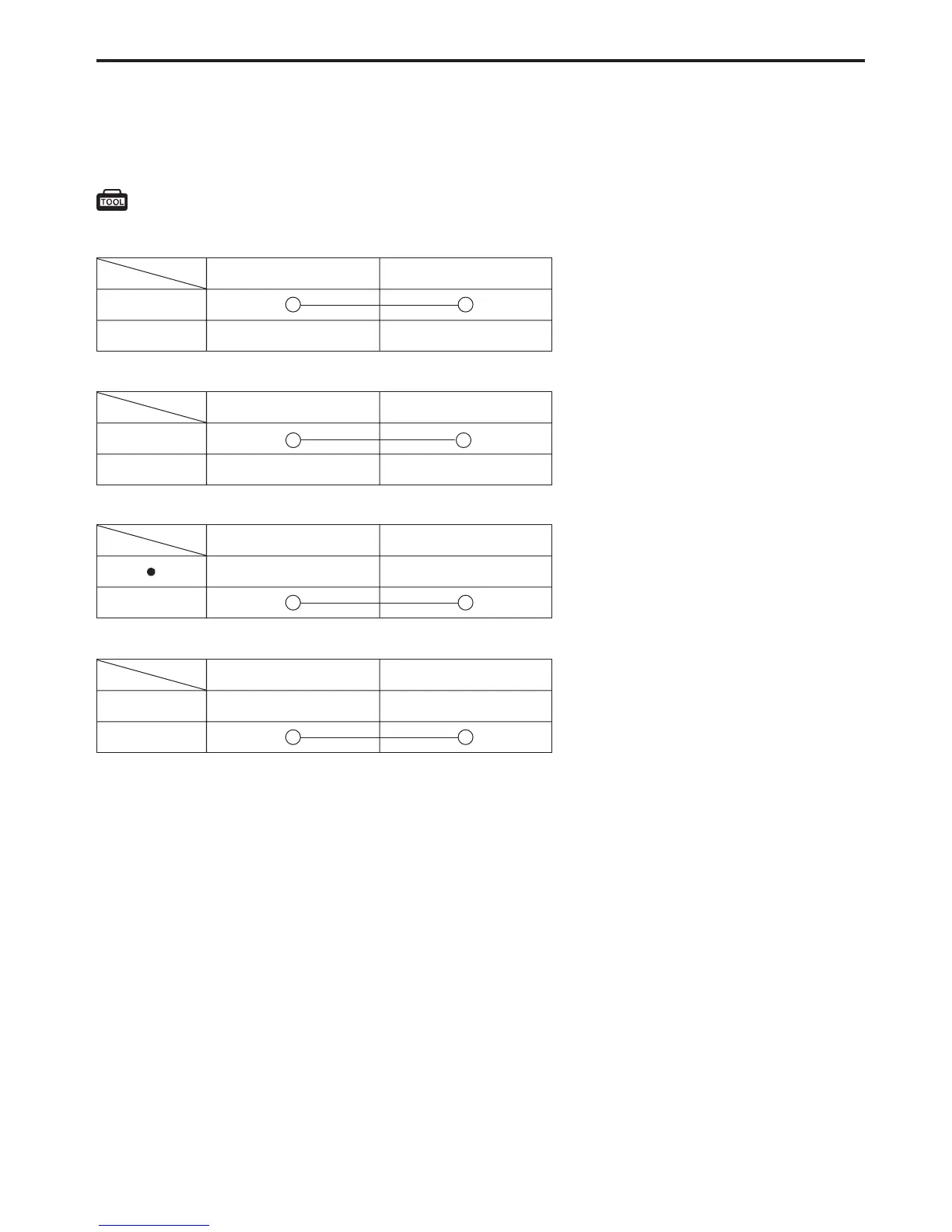

SWITCHES
Measure each switch for continuity using a multi circuit tester. If any abnormality is found, replace the re-
spective switch assemblies with a new one.
09900-25008: Multi circuit tester set
IGNITION SWITCH (DR-Z400E)
Position
Color
RO
ON
OFF
ENGINE STOP SWITCH
Position
Color
B/W B/Y
OFF
RUN
STARTER BUTTON (DR-Z400E)
Position
Color
O B/Y
PUSH
CLUTCH SWITCH (DR-Z400E)
Position
Color
Y/G Y/G
OFF
ON
WIRE COLOR
G : Green
Gr : Gray
O : Orange
R : Red
Y : Yellow
W : White
B/W : Black with White tracer
O/W : Orange with White tracer
Y/G : Yellow with Green tracer

Suzuki drz 400E Specifications

General

Displacement	398 cc
Compression Ratio	12.2:1
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Rear Tire	110/100-18
Engine Type	4-stroke, DOHC
Bore x Stroke	90.0 mm x 62.6 mm
Fuel System	Mikuni BSR36 carburetor
Front Brakes	Disc
Rear Brakes	Disc
Fuel Tank Capacity	10.0 L (2.6 US gallons)
Overall Width	825mm (32.5 inches)
Ground Clearance	315 mm (12.4 in)
Seat Height	935 mm (36.8 in.)
Curb Weight	138 kg (304 lbs)
Dry Weight	119 kg (262 lbs.)
