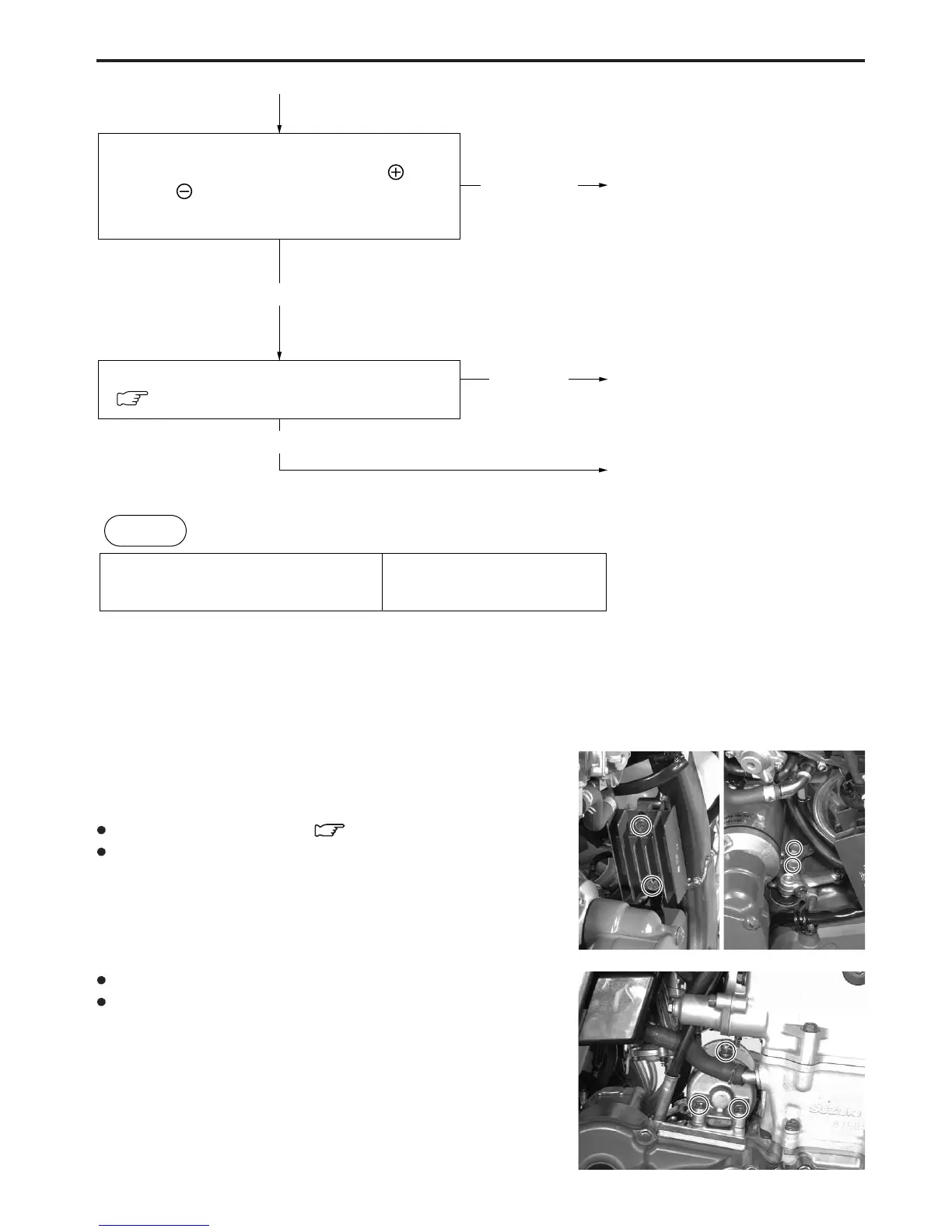

ELECTRICAL SYSTEM 7-13
STARTER MOTOR REMOVAL AND
DISASSEMBLY
Remove the exhaust pipe. ( 3-5)
Remove the regulator/rectifier mounting bolt and clutch cable
guide mounting bolt.
Disconnect the starter motor lead wire.
Remove the starter motor.
Others
Engine does not turn though the
starter motor runs.
• Faulty starter clutch
No voltage
Incorrect
• Faulty ignition switch
• Faulty starter button
• Faulty clutch lever position
switch
• Improper connector contact
Measure the starter relay voltage at the
starter relay connectors (between Y/B
and B/W ) when the starter button is
pushed.
Voltage
• Faulty starter relay
• Improper starter relay contact
Inspect the starter relay.
Correct
( 7-16)
• Open circuit in wire harness
