3-54 ENGINE

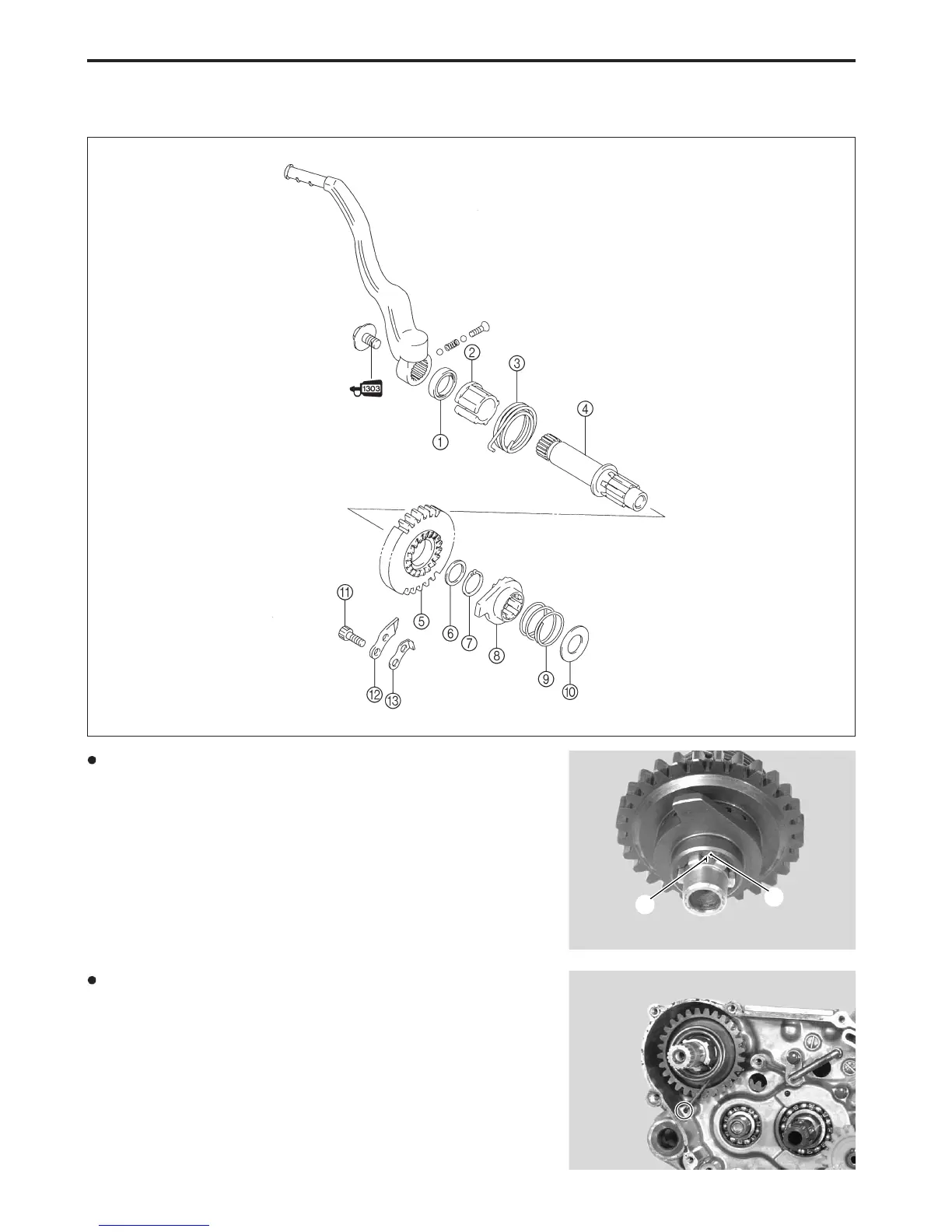

KICK STARTER (DR-Z400)
When installing the kick starter drive gear onto the kick starter
shaft, align the punch mark 1 on the kick starter with the line
3 on the kick starter shaft.
Install the kick starter shaft assembly and hook the end of
the spring onto the crankcase boss.
1
2
1 Oil seal
2 Guide
3 Spring
4 Kick starter shaft
5 Kick starter drive gear
6 Washer
7 Circlip
8 Kick starter
9 Spring
0 Washer
A Bolt
B Kick starter guide
C Kick starter stopper
