Suzuki drz 400E Service Manual

ENGINE 3-37

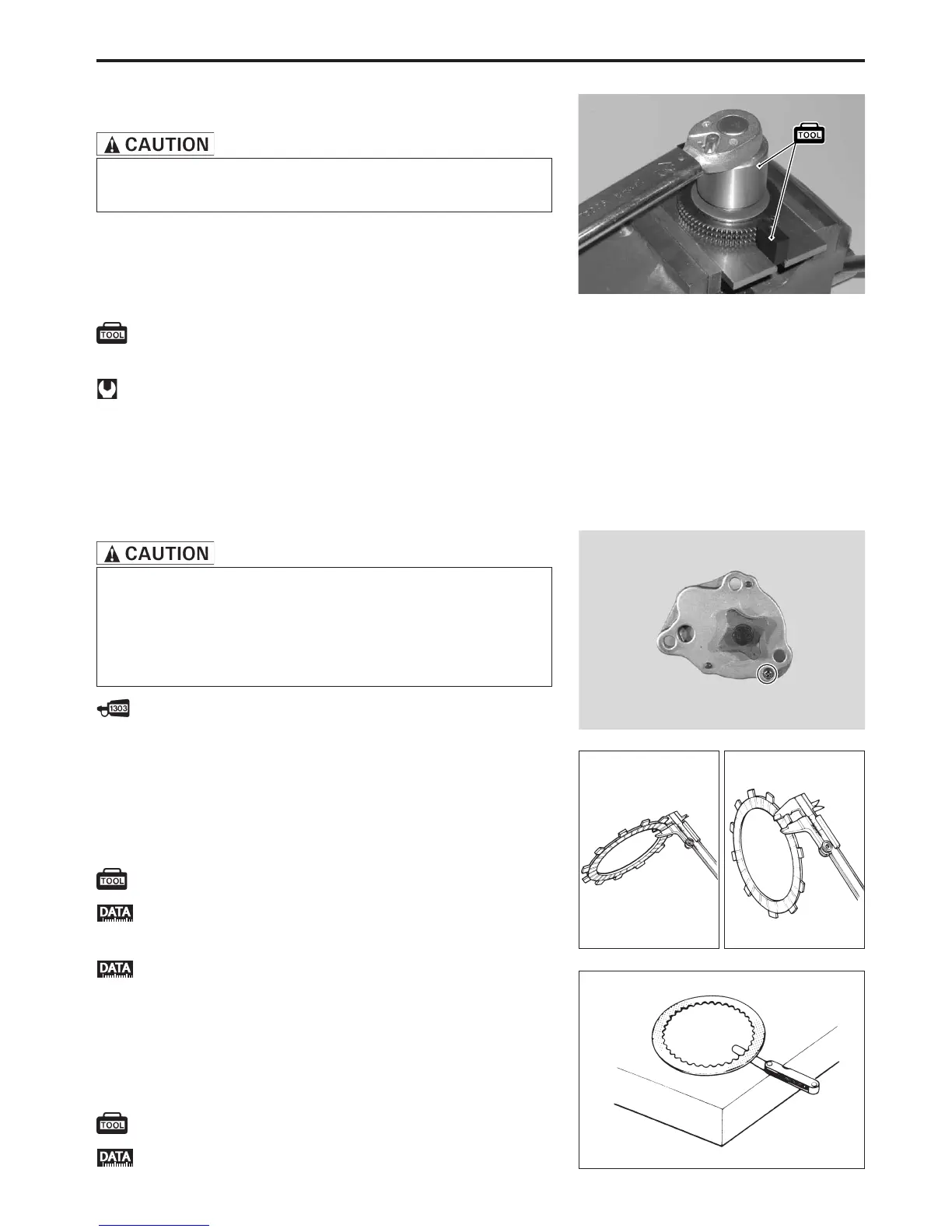

OIL PUMP
The oil pump case securing screw is applied with
SUZUKI THREAD LOCK SUPER “1303”. If an attempt is
made to overhaul the oil pump assembly, the screw may
be damaged. Only the oil pump unit is available as a
replacement.
99000-32030: THREAD LOCK SUPER “1303”
CLUTCH
CLUTCH DRIVE PLATES
Measure the thickness of the clutch drive plates using vernier
calipers. If a clutch drive plate is not within the service limit, re-
place the clutch plates as a set.
09900-20101: Vernier calipers
Drive plate thickness (No.1 & No.2)
Service Limit: 2.62 mm (0.103 in)
Drive plate claw width (No.1 & No.2)
Service Limit: 13.2 mm (0.520 in)
STARTER TORQUE LIMITER (DR-Z400E)
Do not attempt to disassemble the starter torque lim-
iter. It is unserviceable.
Check the slip torque of the starter torque limiter using the spe-
cial tools and vise as shown, if the slip torque is not within the
specified torque, replace the starter torque limiter with a new
one.
09930-73170: Starter torque limiter holder
09930-73180: Starter torque limiter socket
Slip torque:
30 – 55 N·m (3.0 – 5.5 kgf-m, 21.5 – 40.0 lb-ft)
CLUTCH DRIVEN PLATES
Measure each clutch driven plate for distortion using the thick-
ness gauge. If a clutch driven plate is not within the service
limit, replace the clutch plates as a set.
09900-20803: Thickness gauge
Driven plate distortion
Service Limit: 0.10 mm (0.004 in)

Suzuki drz 400E Specifications

General

Displacement	398 cc
Compression Ratio	12.2:1
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Rear Tire	110/100-18
Engine Type	4-stroke, DOHC
Bore x Stroke	90.0 mm x 62.6 mm
Fuel System	Mikuni BSR36 carburetor
Front Brakes	Disc
Rear Brakes	Disc
Fuel Tank Capacity	10.0 L (2.6 US gallons)
Overall Width	825mm (32.5 inches)
Ground Clearance	315 mm (12.4 in)
Seat Height	935 mm (36.8 in.)
Curb Weight	138 kg (304 lbs)
Dry Weight	119 kg (262 lbs.)
