Suzuki drz 400E Service Manual

DR-Z400EY (E-24 MODEL) 9-13
IGNITION SWITCH
RO
ON
OFF
ENGINE STOP SWITCH
O/Y O/W
OFF (¡)
RUN ()
TURN SIGNAL SWITCH
Lg Lbl B
L ()
PUSH
R ()
DIMMER SWITCH
Y/W W Y
HI ()
LO ()
PASSING LIGHT SWITCH
O/R Y

PUSH
FRONT BRAKE LIGHT SWITCH
B B/R
ON
OFF
REAR BRAKE LIGHT SWITCH
O W/B
ON
OFF

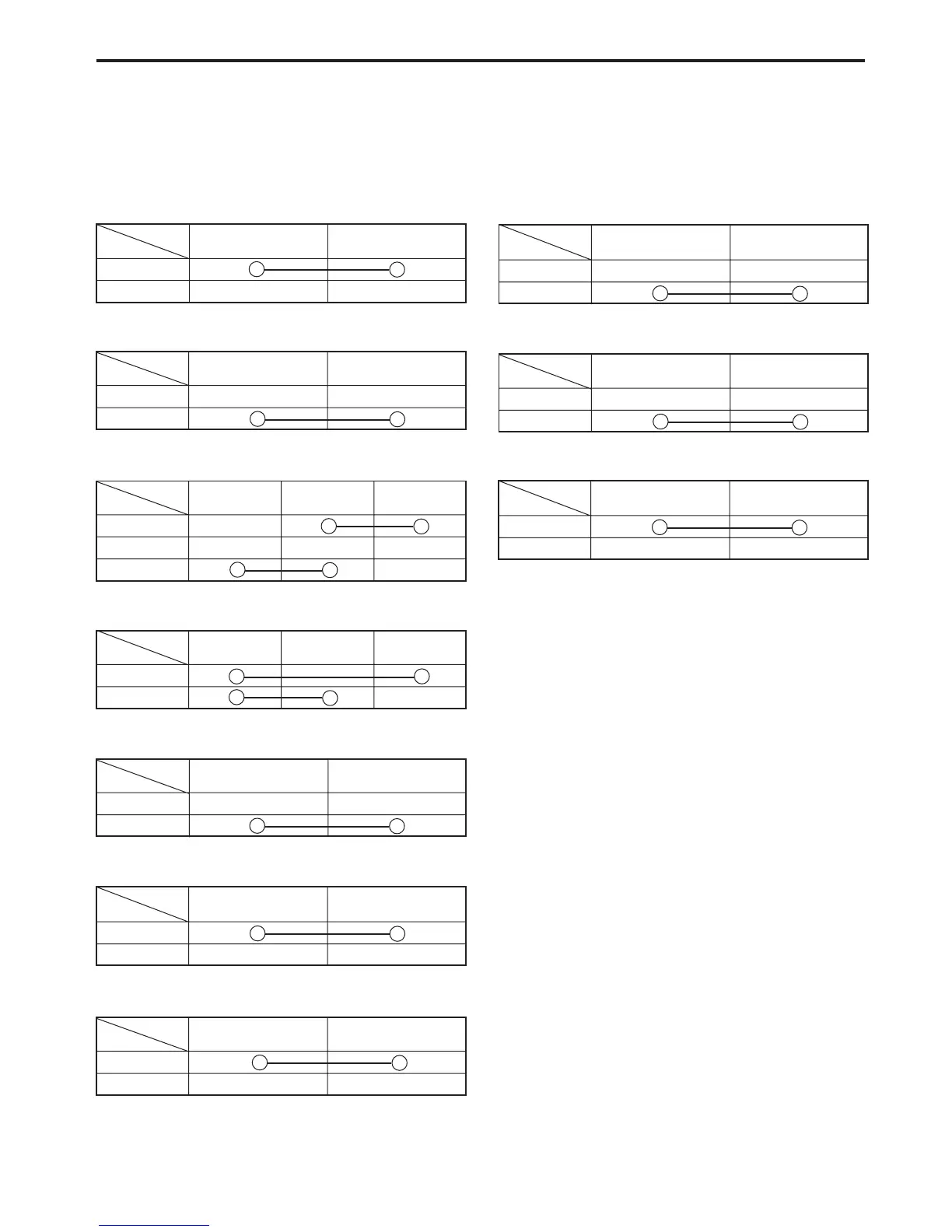

SWITCHES
Measure each switch for continuity using a multi circuit tester. If any abnormality is found, replace the respec-
tive switch assemblies with a new one.
[ 09900-25008: Multi circuit tester set
STARTER BUTTON
O/W Y/G

PUSH
HORN BUTTON
B/Bl B/W

PUSH
NEUTRAL SWITCH
Bl Ground
ON
OFF
Color
Position
Color
Position
Color
Position
Color
Position
Color
Position
Color
Position
Color
Position
Color
Position
Color
Position
Color
Position
WIRE COLOR
B : Black
Bl : Blue
Lbl : Light blue
Lg : Light green
O : Orange
R : Red
W : White
Y : Yellow
B/Bl : Black with Blue tracer
B/R : Black with Red tracer
B/W: Black with White tracer
O/R : Orange with Red tracer
O/W: Orange with White tracer
O/Y : Orange with Yellow tracer
W/B: White with Black tracer
Y/G : Yellow with Green tracer
Y/W: Yellow with White tracer

Suzuki drz 400E Specifications

General

Displacement	398 cc
Compression Ratio	12.2:1
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Rear Tire	110/100-18
Engine Type	4-stroke, DOHC
Bore x Stroke	90.0 mm x 62.6 mm
Fuel System	Mikuni BSR36 carburetor
Front Brakes	Disc
Rear Brakes	Disc
Fuel Tank Capacity	10.0 L (2.6 US gallons)
Overall Width	825mm (32.5 inches)
Ground Clearance	315 mm (12.4 in)
Seat Height	935 mm (36.8 in.)
Curb Weight	138 kg (304 lbs)
Dry Weight	119 kg (262 lbs.)
