Suzuki drz 400E Service Manual

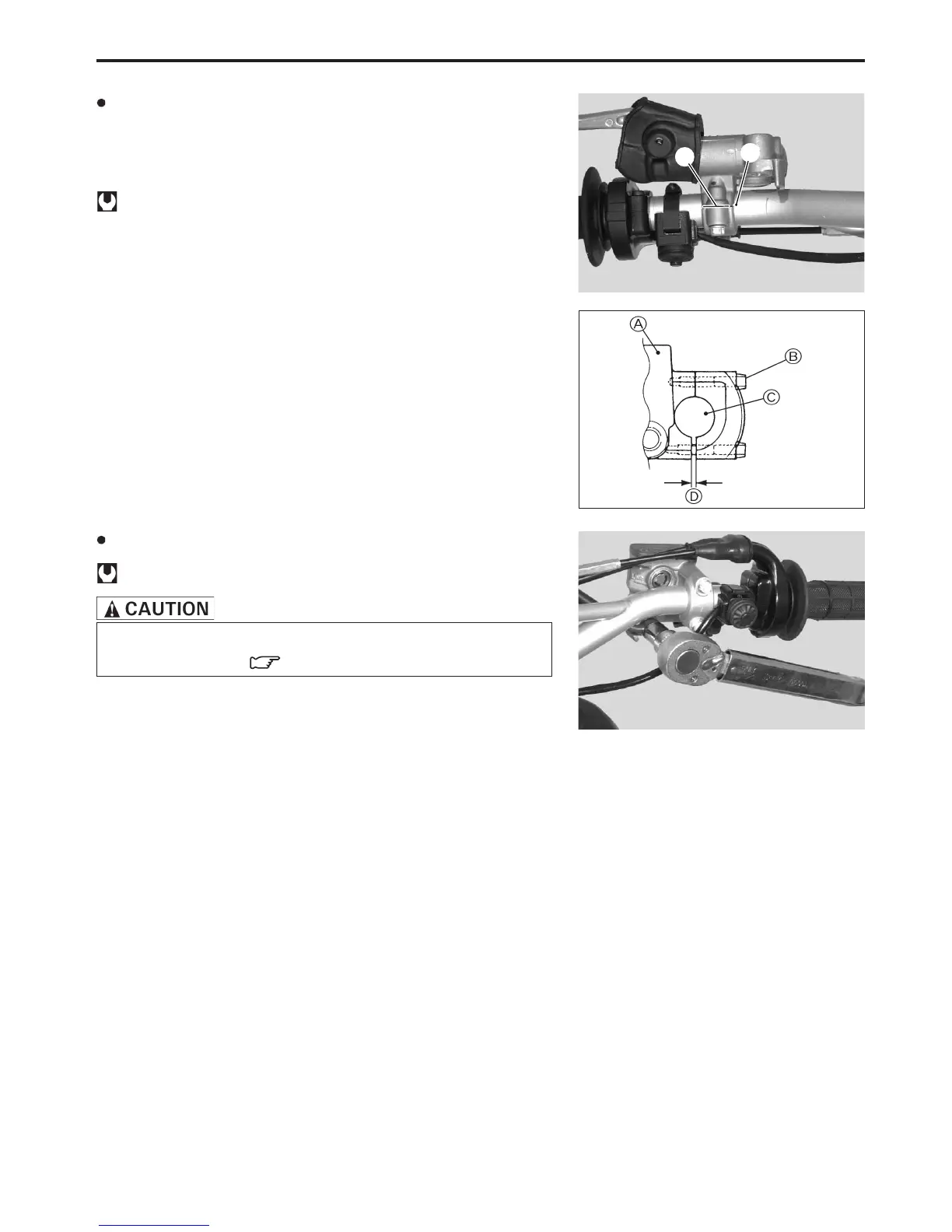

CHASSIS 6-53
When remounting the master cylinder on the handlebar, align
the master cylinder holder’s mating surface 1 with the punch
mark 2 on the handlebar, and then tighten the upper clamp
bolt first.
Master cylinder clamp bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft)
A Master cylinder
B Master cylinder upper clamp bolt
C Handlebar
D Clearance
Tighten the brake hose union bolt to the specified torque.
Brake hose union bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
Bleed air from the brake system after reassembling the
master cylinder. ( 2-19 and 2-20)
1
2

Suzuki drz 400E Specifications

General

Displacement	398 cc
Compression Ratio	12.2:1
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Rear Tire	110/100-18
Engine Type	4-stroke, DOHC
Bore x Stroke	90.0 mm x 62.6 mm
Fuel System	Mikuni BSR36 carburetor
Front Brakes	Disc
Rear Brakes	Disc
Fuel Tank Capacity	10.0 L (2.6 US gallons)
Overall Width	825mm (32.5 inches)
Ground Clearance	315 mm (12.4 in)
Seat Height	935 mm (36.8 in.)
Curb Weight	138 kg (304 lbs)
Dry Weight	119 kg (262 lbs.)
