Suzuki drz 400E Service Manual

6-62 CHASSIS

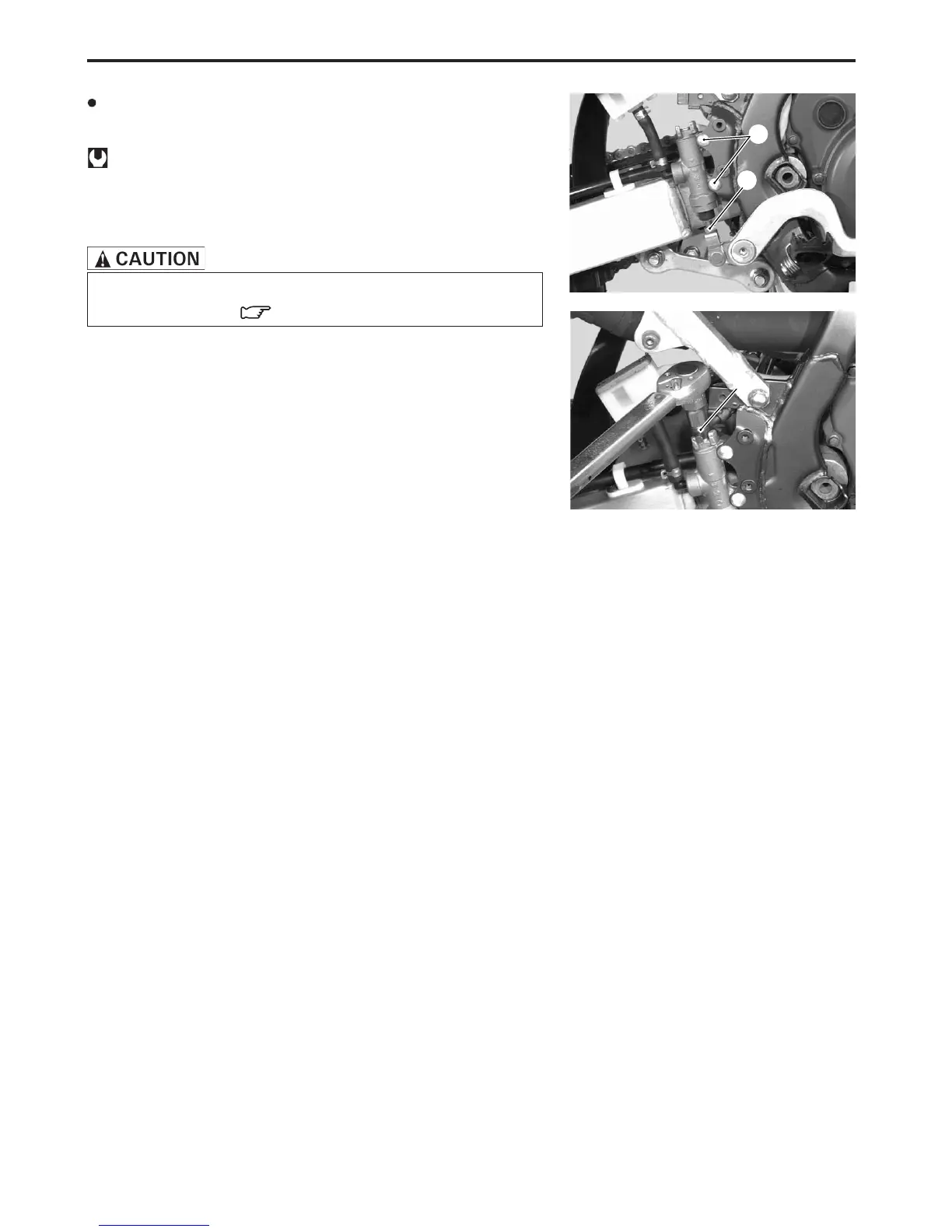

Tighten the master cylinder mounting bolts 1, brake rod lock-
nut 2, and brake hose union bolt 3 to the specified torque.
Master cylinder mounting bolt:
10 N·m (1.0 kgf-m, 7.0 lb-ft)
Brake rod locknut: 18 N·m (1.8 kgf-m, 13.0 lb-ft)
Brake hose union bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
Bleed air from the brake system after reassembling the
master cylinder. ( 2-19 and 2-20)
2
1
3

Suzuki drz 400E Specifications

General

Displacement	398 cc
Compression Ratio	12.2:1
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Rear Tire	110/100-18
Engine Type	4-stroke, DOHC
Bore x Stroke	90.0 mm x 62.6 mm
Fuel System	Mikuni BSR36 carburetor
Front Brakes	Disc
Rear Brakes	Disc
Fuel Tank Capacity	10.0 L (2.6 US gallons)
Overall Width	825mm (32.5 inches)
Ground Clearance	315 mm (12.4 in)
Seat Height	935 mm (36.8 in.)
Curb Weight	138 kg (304 lbs)
Dry Weight	119 kg (262 lbs.)
