Suzuki drz 400E Service Manual

DR-Z400EY (E-24 MODEL) 9-19

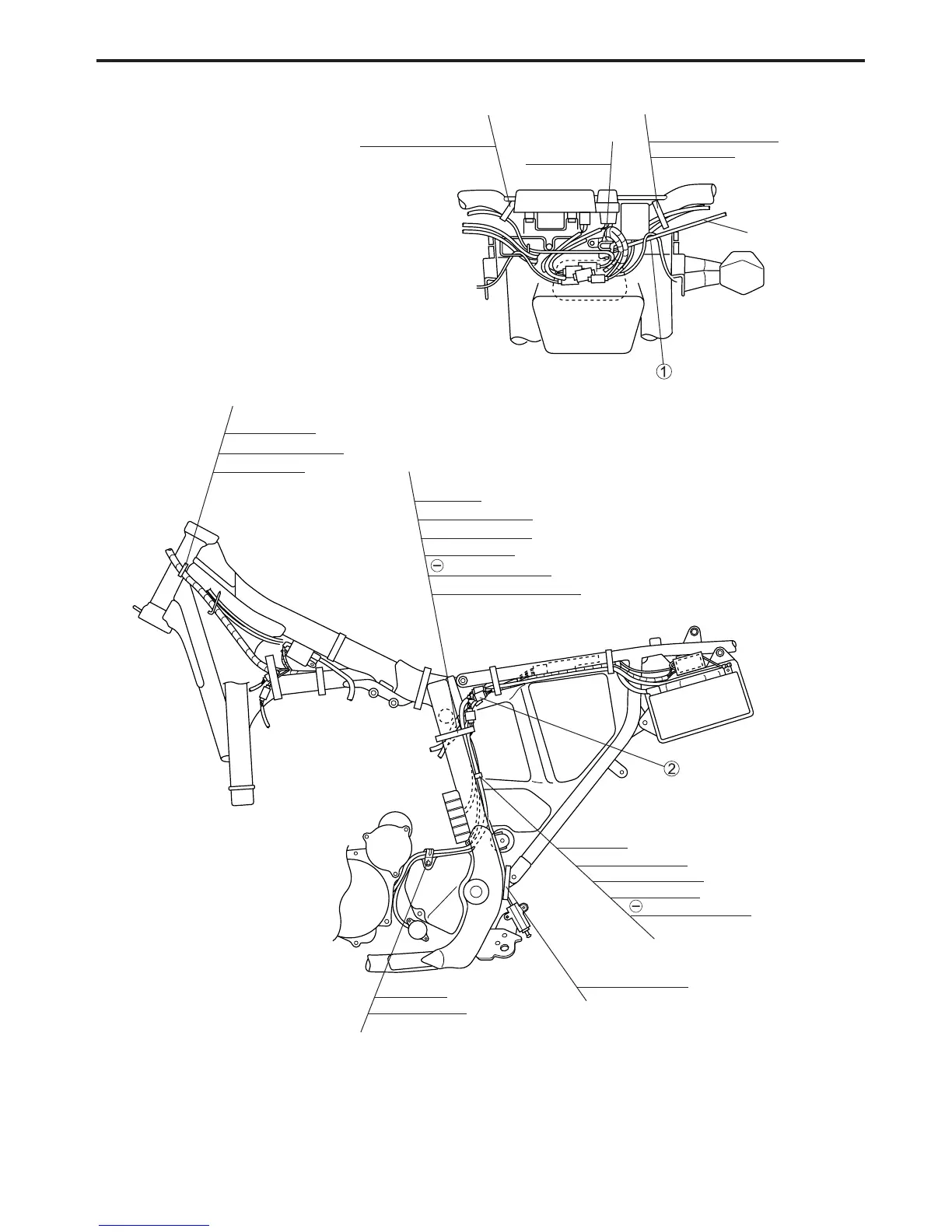

1 Front turn signal light (L) lead wire must be passed over the clutch cable.
2 Set the regulator/rectifier, and throttle position sensor couplers in this order, under the frame.
Clamp
Handlebar switch (R)
Clamp
Wire harness
Clamp
Handlebar switch (L)
Clutch switch
Clutch cable
Clamp
Clamp
Wire harness
Engine stop switch
Throttle cable
Generator
Regulator/rectifier
Side stand switch
Neutral switch
battery lead wire
Throttle position sensor
Generator
Regulator/rectifier
Side stand switch
Neutral switch
battery lead wire
Clamp
Side stand switch
Clamp
Generator
Neutral switch
Clamp

Suzuki drz 400E Specifications

General

Displacement	398 cc
Compression Ratio	12.2:1
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Rear Tire	110/100-18
Engine Type	4-stroke, DOHC
Bore x Stroke	90.0 mm x 62.6 mm
Fuel System	Mikuni BSR36 carburetor
Front Brakes	Disc
Rear Brakes	Disc
Fuel Tank Capacity	10.0 L (2.6 US gallons)
Overall Width	825mm (32.5 inches)
Ground Clearance	315 mm (12.4 in)
Seat Height	935 mm (36.8 in.)
Curb Weight	138 kg (304 lbs)
Dry Weight	119 kg (262 lbs.)
