3-56 ENGINE

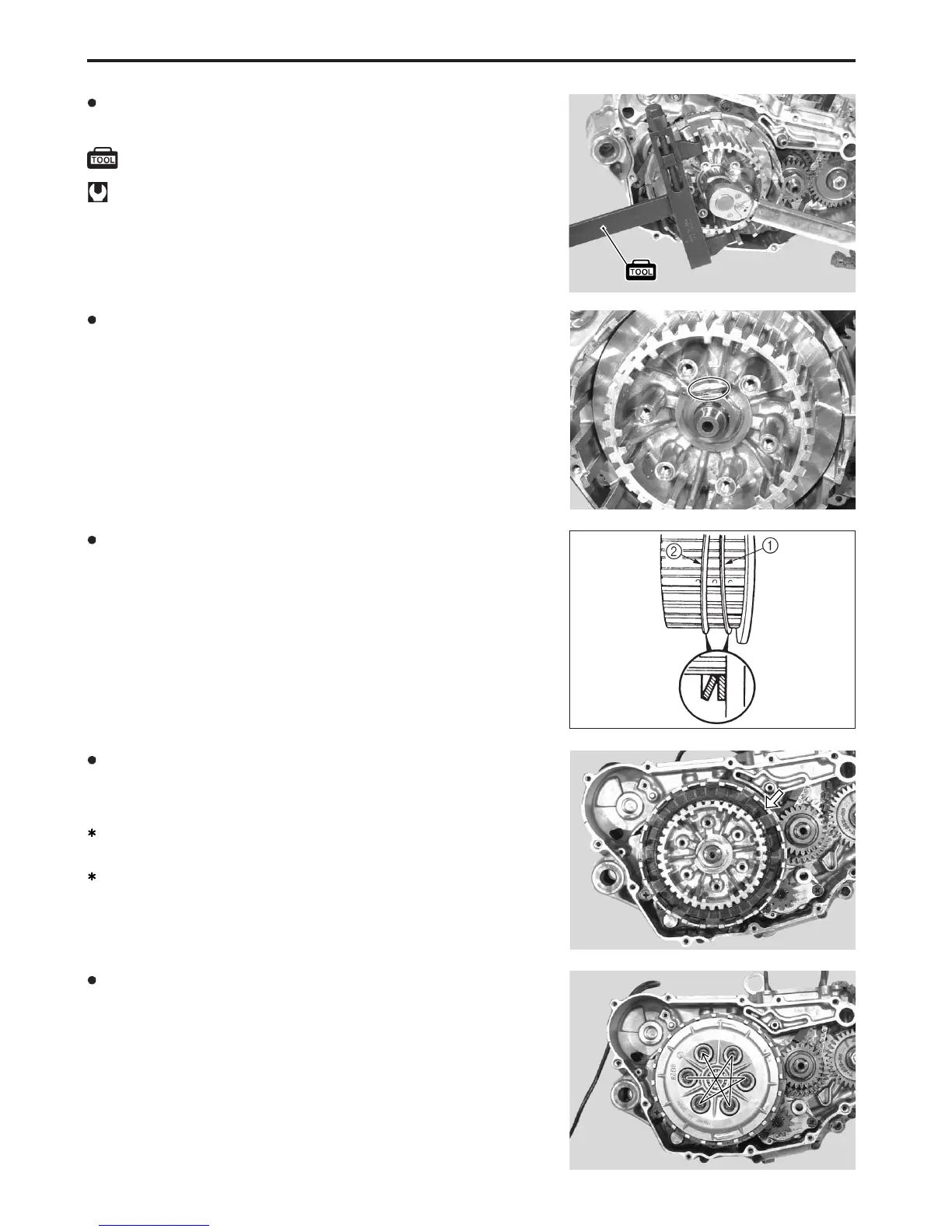

Hold the clutch sleeve hub using the special tool, and then
tighten the clutch sleeve hub nut to the specified torque.
09920-53740: Clutch sleeve hub holder
Clutch sleeve hub nut: 70 N·m (7.0 kgf-m, 50.5 lb-ft)
Bend the tongue of the washer securely.
Install the spring washer seat 1 and spring washer 2 onto
the clutch sleeve hub correctly.
Insert the clutch drive plates and driven plates one by one
into the clutch sleeve hub in the prescribed order.
NOTE:
Be sure to install the drive plate with an inside diameter of
122.5 mm (4.82 in), first.
Two different types of drive plates are used: one with an in-
side diameter of 122.5 mm (4.82 in) and seven with an inside
diameter of 116 mm (4.5 in). For further information refer to
page 3-55.
Tighten the clutch spring set bolts securely in diagonal stages.
