CHASSIS 5-13

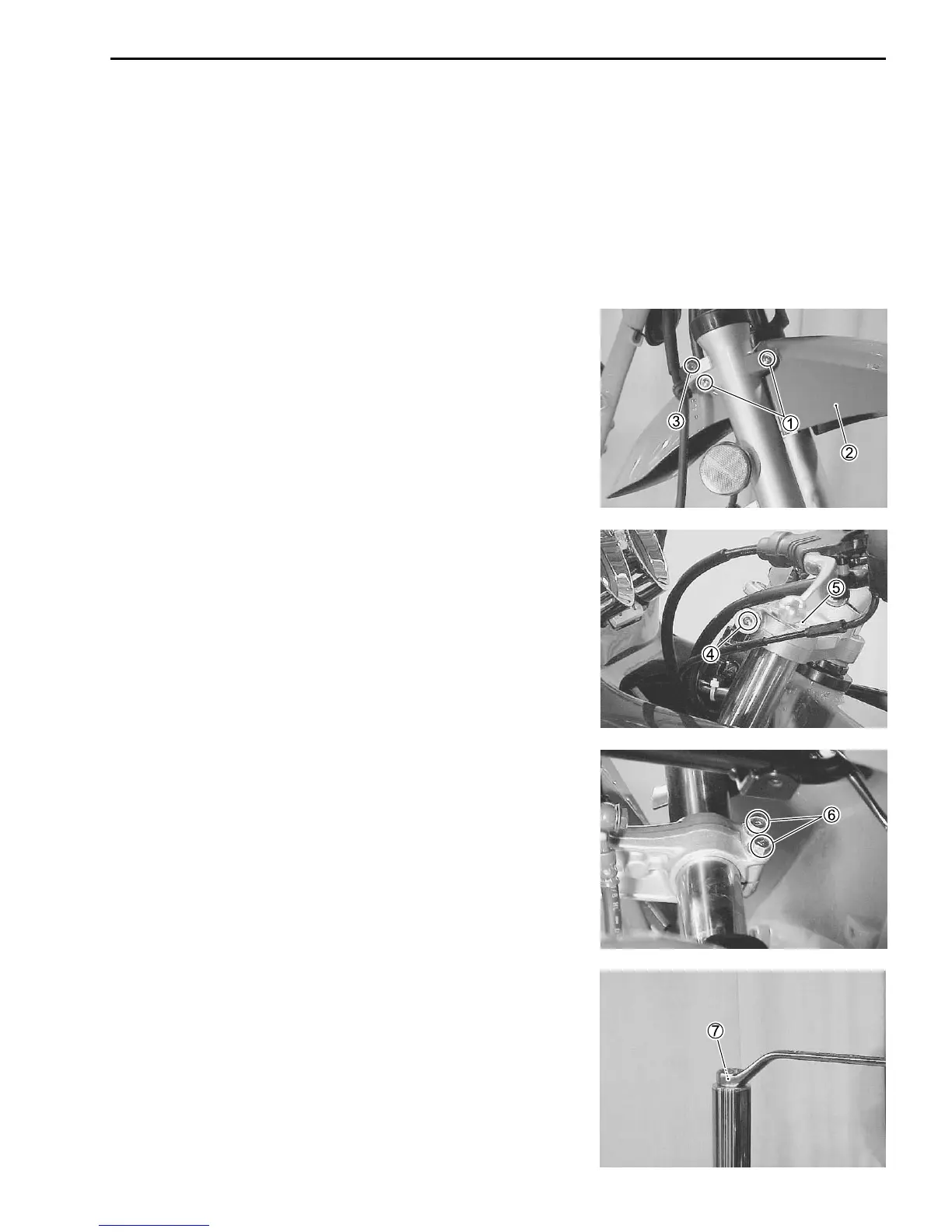

REMOVAL AND DISASSEMBLY
• Remove the center cowling. (! 5-3)
• Remove the front wheel. (! 5-9)
• Remove the front fender mounting bolts 1 (left and right side).
• Remove the front fender 2.
• Remove the brake hose clamp bolt 3 (left and right side).
• Loosen the front fork upper pinch bolt 4.
NOTE:
Slightly loosen the front fork cap bolt
5
to facilitate later
disassembly.
• Loosen the front fork lower pinch bolts 6.
• Remove the front fork.
• Loosen the front fork cap bolt 7.
To Next Page
